Kit includes

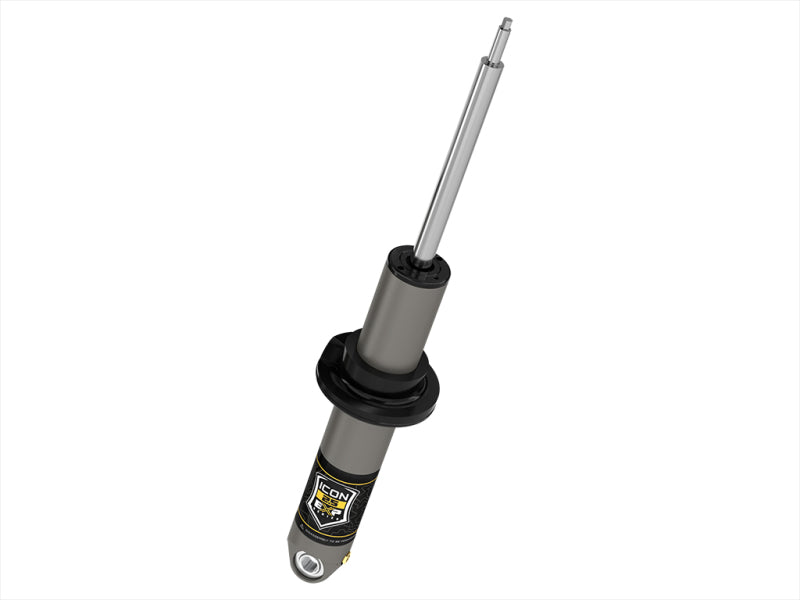

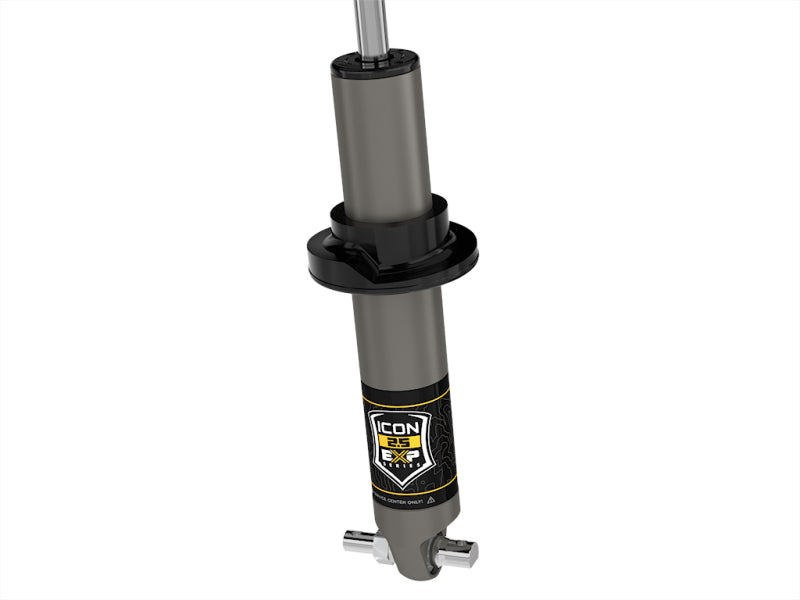

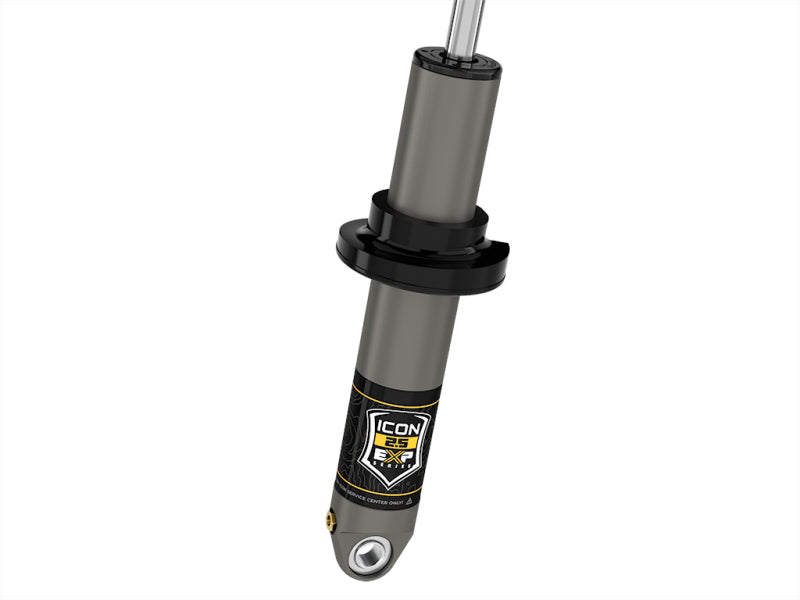

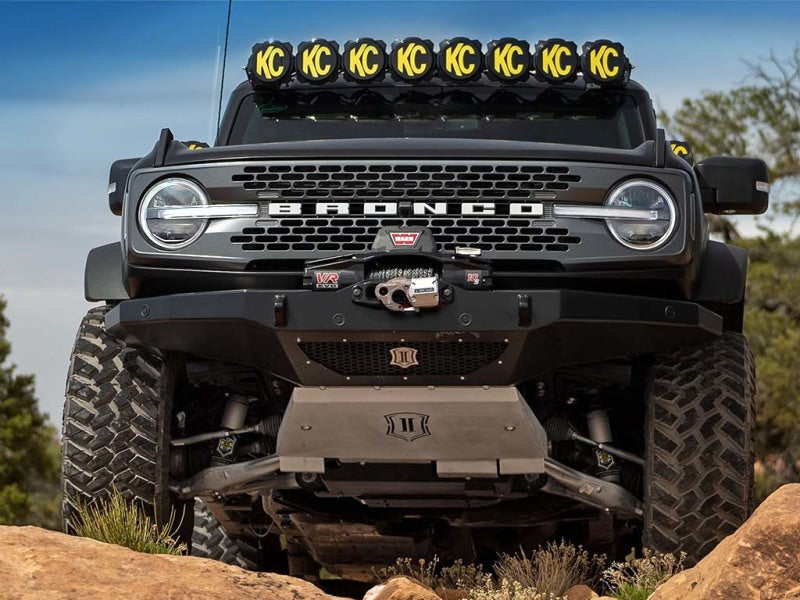

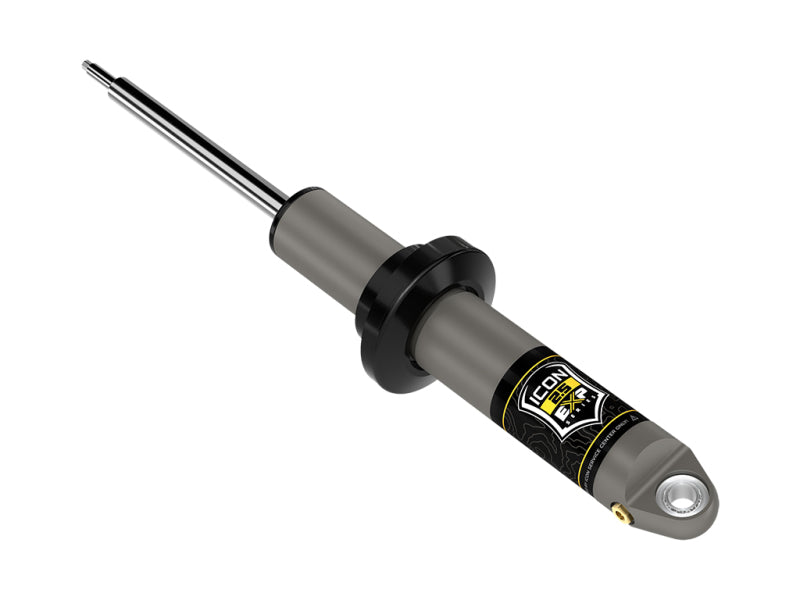

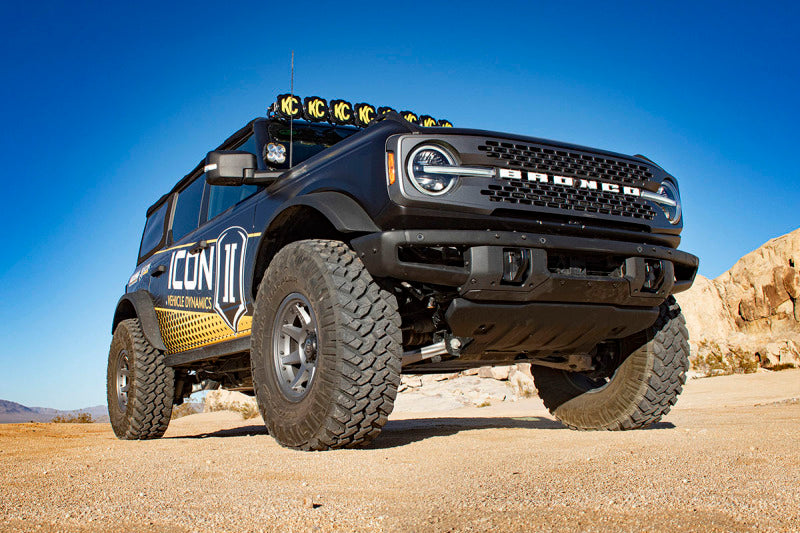

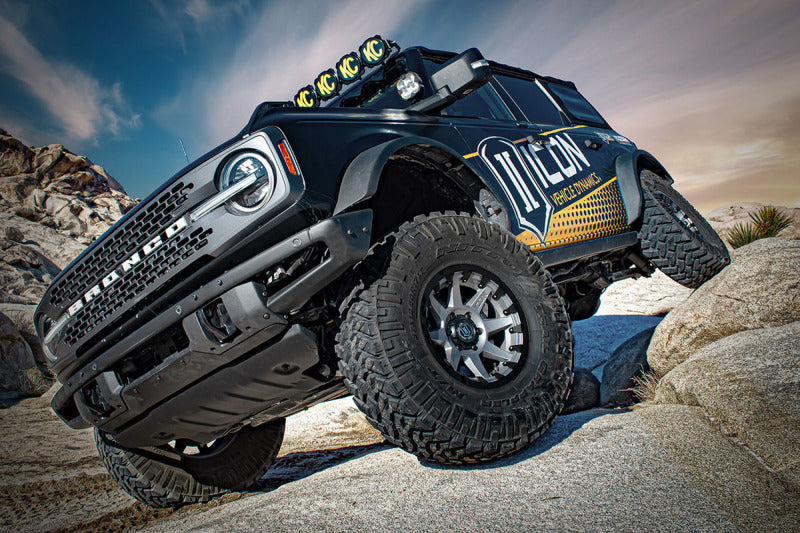

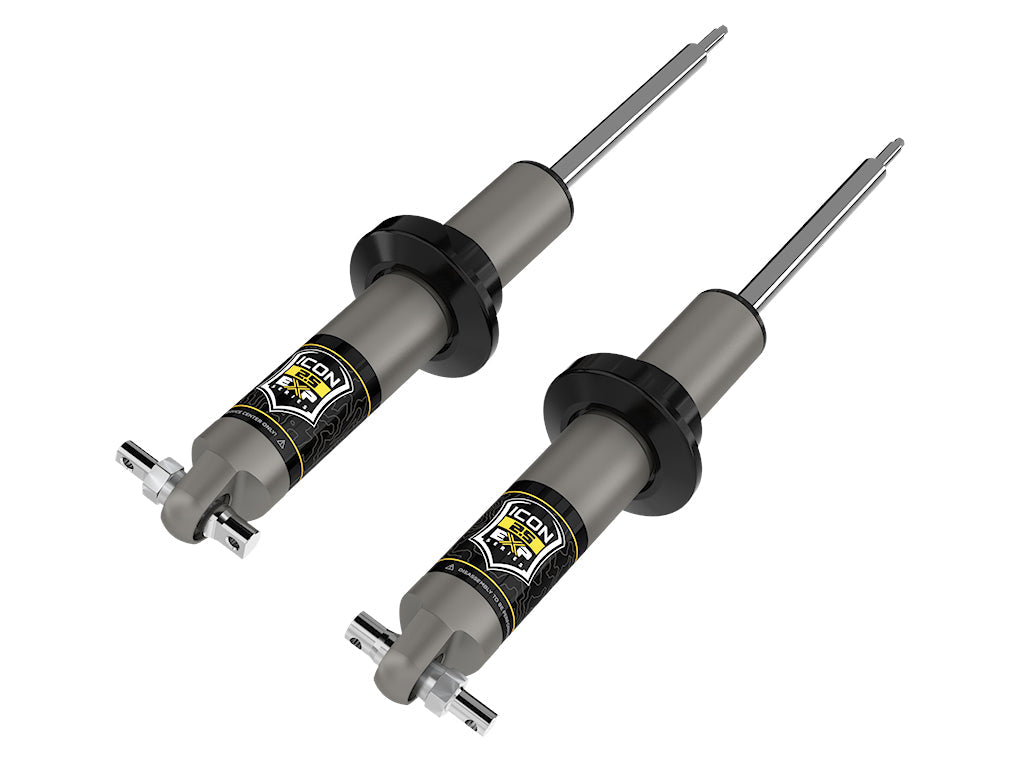

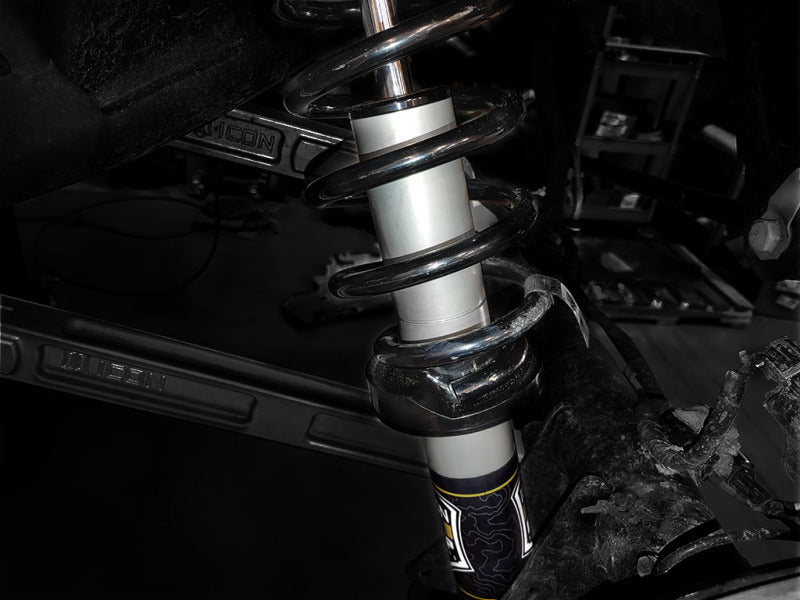

The ICON Vehicle Dynamics Stage 1 Suspension System for the 2021-2023 Ford Bronco features front and rear 2.5 EXP Series coilovers to yield increased wheel travel along with superior ride quality and suspension performance both on and off-road. 2.5 EXP Series coilovers combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP coilovers use a series of snap-ring grooves machined into the shock body to provide easily-selectable ride height adjustment from 0-2” of front lift and 0-1.75" of rear lift over stock on Bronco’s equipped with the OE HOSS 2.0 suspension package.
ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packagesrequire coilover bump stop spacers along with trimming and modifications)

• One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish


• Adjustable ride heights from 0-2” of front lift and 0-1.75" of rear lift over stock with the use of snap rings

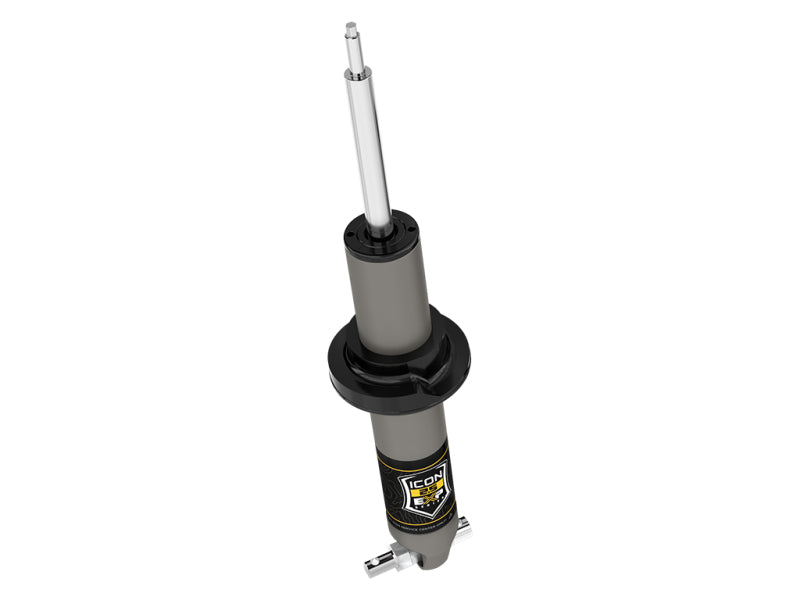

• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shafts

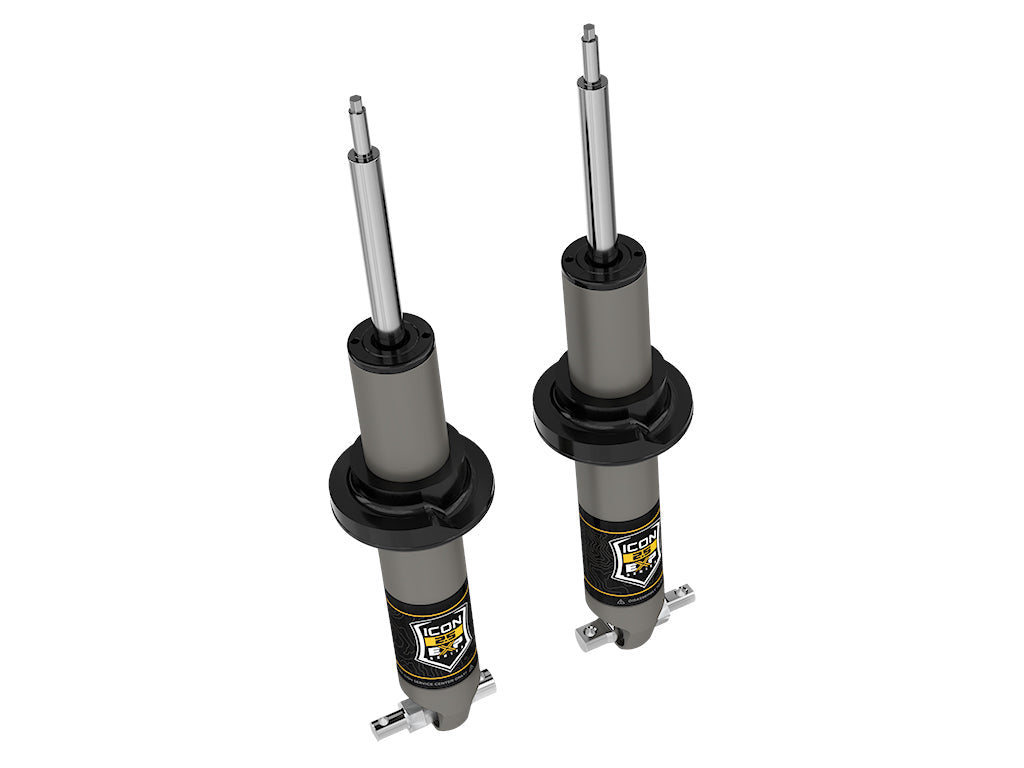

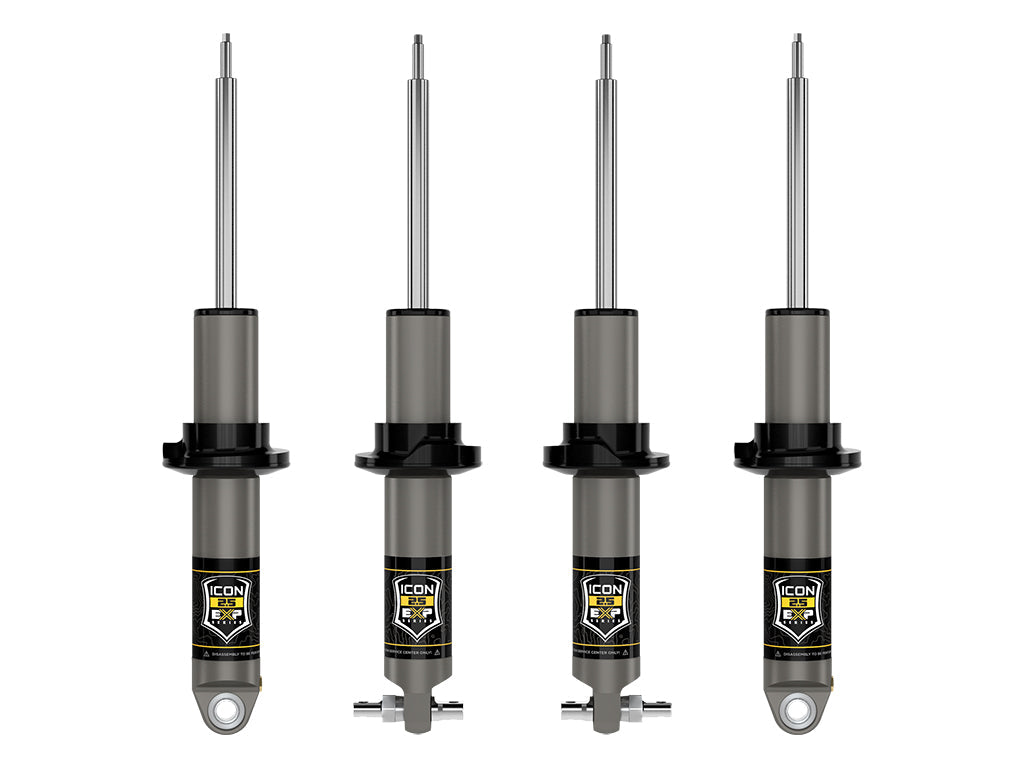

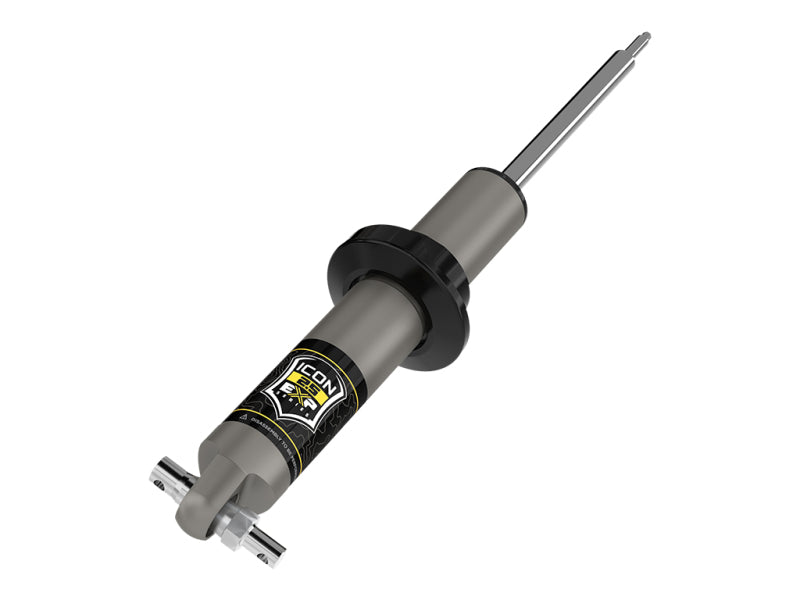

• Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs


• Vehicle specific design for 2021-2023 Ford Bronco with HOSS 2.0 Suspension Package


• Vehicle specific tuned shocks for superior shock damping and vehicle control


• PTFE lined spherical bearings for extended longevity and minimal deflection


• CNC machined 6061 aluminum components with a black anodized finish


• 100% Bolt-on - no cutting or welding necessary for installation


• Utilizes factory coils and coil hardware


• Fully rebuildable and re-tunable
