Sometimes Space Is Limited. The Autometer Quad Gauge Provides A Solution To Limited Dashboard Space While Providing A Clean Look. Individual Autometer Air Core Meter Movements For Each Function Provide The Accuracy And Durability Required By Even The Most Demanding Applications. Includes A Single Wire 1/8" Npt Temperature Sender And A 1/8" Npt Oil Pressure Sender. The Voltmeter Reads From 8-18V On Negative Ground Electrical Systems And Fuel Level Resistance Range Is 240 Ohms Empty To 33 Ohms Full (Compatible With Autometers 3262 Fuel Level Sender).
Traditional incandescent lighting illuminates around the perimeter of the dial
OLD-TYME WHITE

• Speedometer has a simple push button, 2 mile drive calibration. No dip switches and can be reprogramed at any time to accommodate changes in gear ratio or wheel and tire combination.


• oil pressure sender, water temperature sender, 2-wire hall-effect speed sender that is compatible with GM/Chrysler applications (7/8" - 18THD)


• Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings While Keeping Hazardous Fluids Outside Of The Vehicle


• bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.


• Speedometer features lit LCD odometer - capable of registering one-million miles with two resettable trip odometers

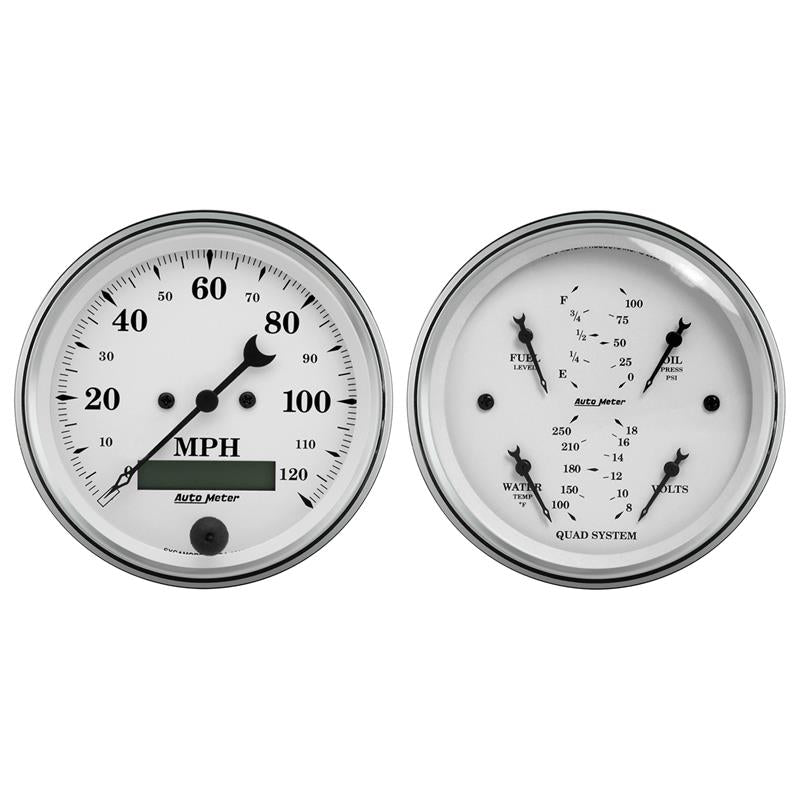

• 4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters


• Speedometer is compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.


• 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system


• sending unit adapters (1/4" , 3/8" , and 1/2" NPT adapters)


• Kit includes fuel level sender (240E/33F)
