Kit includes

Vehicle Fitment

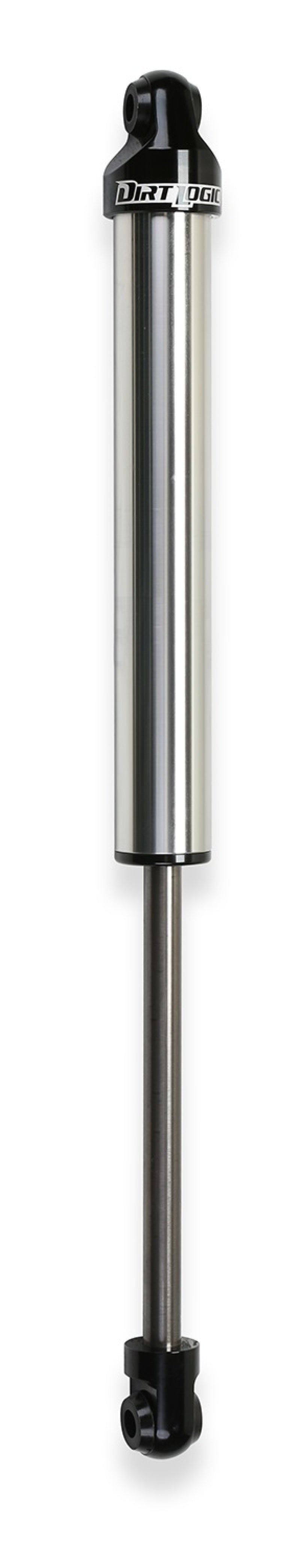

To enhance our extensive line of Super Duty suspension systems we have developed an entry level 4'' Budget System. The 4'' Budget System utilizes the factory front coil springs with a steel upper spacer providing 4'' of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts. System allows installation of 35'' tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use. Includes front and rear 2.25 Dirt Logic Stainless Steel shocks.

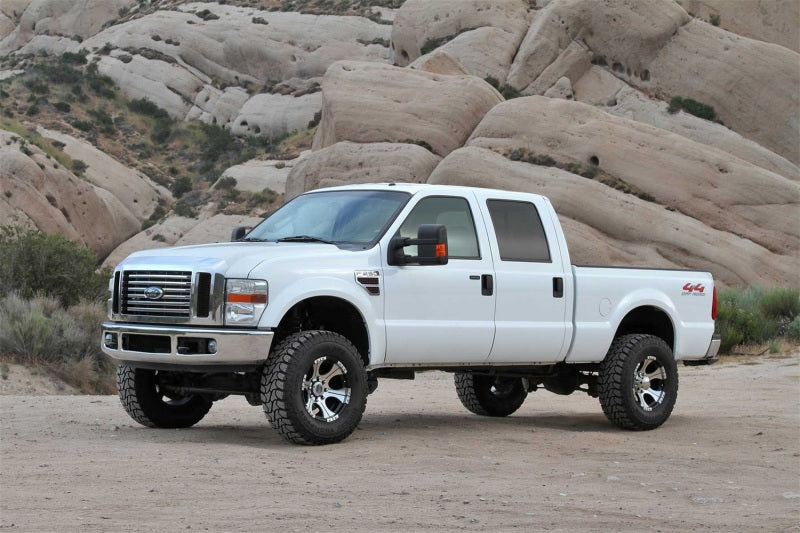

4in. BUDGET SYS W/DLSS SHKS 2008-16 FORD F250/350/450 4WD 8 LUG
TIRE SIZE - 35/12.50R18 WHEEL - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 27. FRONT DRIVE SHAFT MODIFICATION MAY BE REQUIRED TO CLEAR EXHAUST ON GAS MOTOR.
