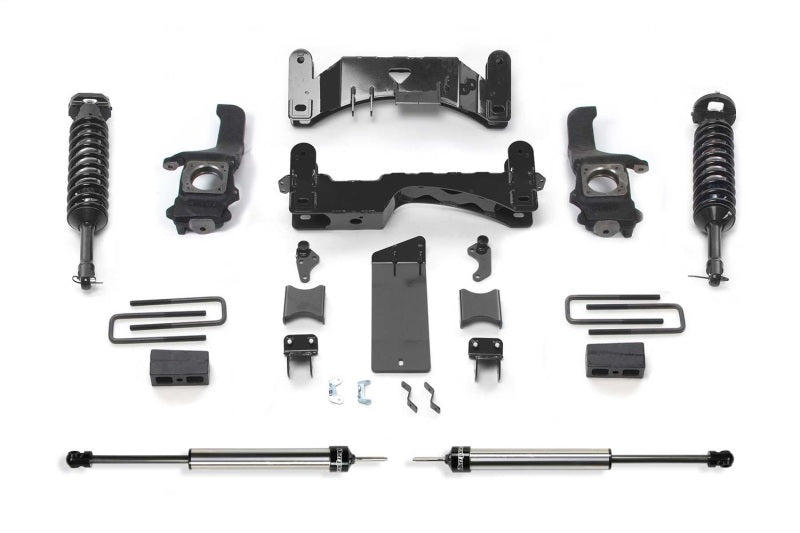

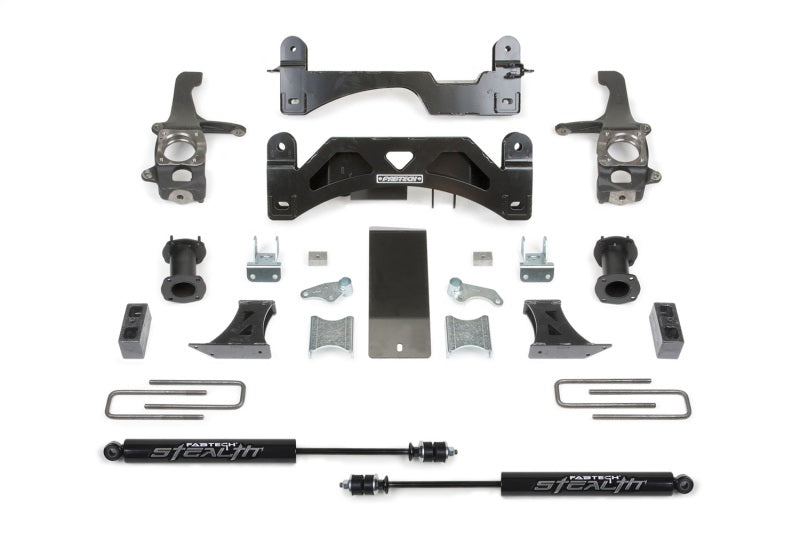

Kit includes

Vehicle Fitment

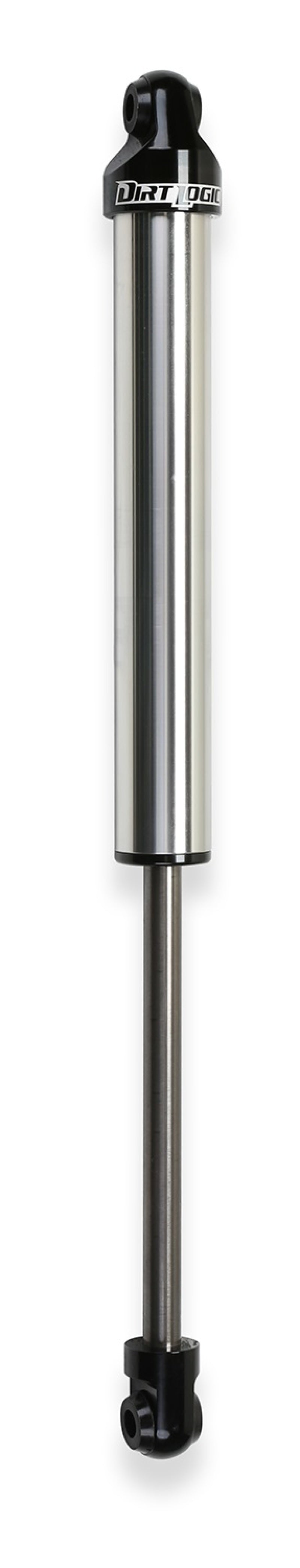

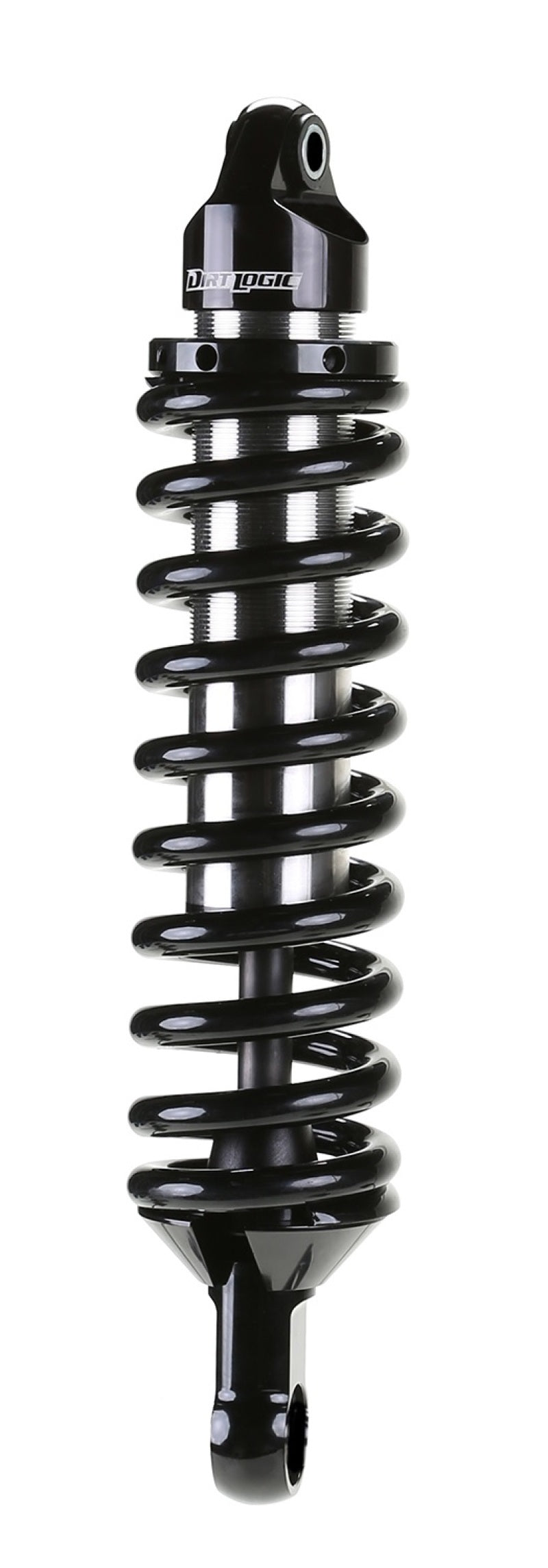

The Toyota Tundra TRD PRO comes with a factory 2" lift compared to other Tundra?s of the same years. Fabtech?s Tundra lift kit provides a 4" lift height on top of the factory 2" lift for clearance of 35" tall tires. Once a Tundra TRD PRO is lifted with a Fabtech 4" lift kit, the truck will sit at the same height as a standard Tundra with a 6" suspension and 35" tires. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech?s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. Heavy duty 1/4" thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed. The stainless steel Dirt Logic 2.5 Coilovers replace the TRD PRO Coilovers with an outstanding ride quality both on and offroad. They are designed for aggressive offroad use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride. Rear lift is accomplished with a 3? block and u-bolt system. Fabtech has addressed all aspects of the Tundra TRD PRO lift kit for full suspension travel with lock to lock steering without over cycling. Comes with a free 5 year 60,000 mile Powertrain Warranty. FEATURES: CROSSMEMBERS - 1/4" thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strength to the front suspension. STEERING KNUCKLES - Fabtech?s extended length ductile iron Steering Knuckles provide zero bump steer throughout the suspension travel. This provides an enhanced driver experience compared to stock. Near stock track width keeps the tires under the fenders for a clean appearance. TIE RODS - Oversized tie rods are provided to replace the stock units that are designed to handle oversized tires. DIRT LOGIC 2.5 COILOVERS - Constructe
TIRE SIZE - 35/12.50R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 14. CAN NOT USE OEM WHEEL AND TIRE.; 114. WILL NOT ALLOW USE OF 17? WHEELS.
