Fabtech 17-20 Ford F250/350 4WD Diesel 6in Radius Arm System w/DL 4.0 Coilover & Rear DL 2.25 Shocks

FabtechSKU: fabK2231DL
Fabtech 17-20 Ford F250/350 4WD Diesel 6in Radius Arm System w/DL 4.0 Coilover & Rear DL 2.25 Shocks
GroupMember:223589
GroupMember:224178
GroupMember:224257
GroupMember:224178
GroupMember:224257
GroupMember:224256
GroupMember:224257
Roll over image to zoom in Click on image to zoom
Fabtech 17-20 Ford F250/350 4WD Diesel 6in Radius Arm System w/DL 4.0 Coilover & Rear DL 2.25 Shocks
GroupMember:223589
GroupMember:224178
GroupMember:224257
GroupMember:224178
GroupMember:224257
GroupMember:224256
GroupMember:224257

Fabtech 17-20 Ford F250/350 4WD Diesel 6in Radius Arm System w/DL 4.0 Coilover & Rear DL 2.25 Shocks

FabtechSKU: fabK2231DL
🔥Extra 10% off — $4,962.32 at checkout
Price:
$5,513.69
Stock:
Sold out

Fitment Check

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay USDC Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

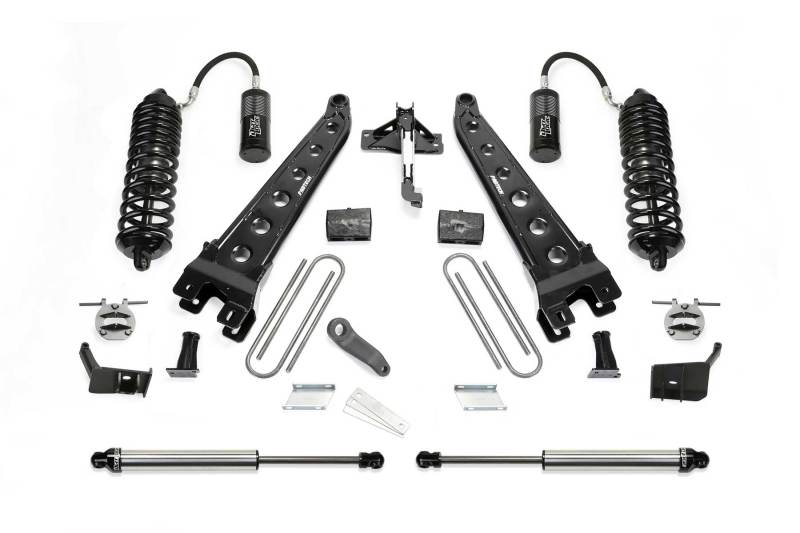

Kit includes

Qty Component Part #
1× Fabtech 17-20 Ford F250/350 4WD 6in Rear Block Kit fabFTS22219
1× Fabtech 17-20 Ford F250/350 4WD 6in Radius Arm System - Component Box fabFTS22220

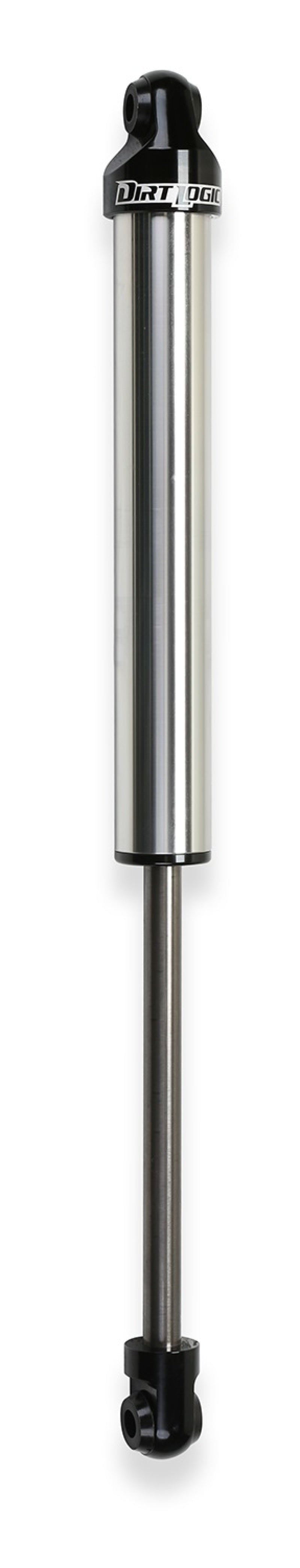

2× Fabtech 05-07 Ford F250/350 4WD Rear Dirt Logic 2.25 N/R Shock Absorber fabFTS810052

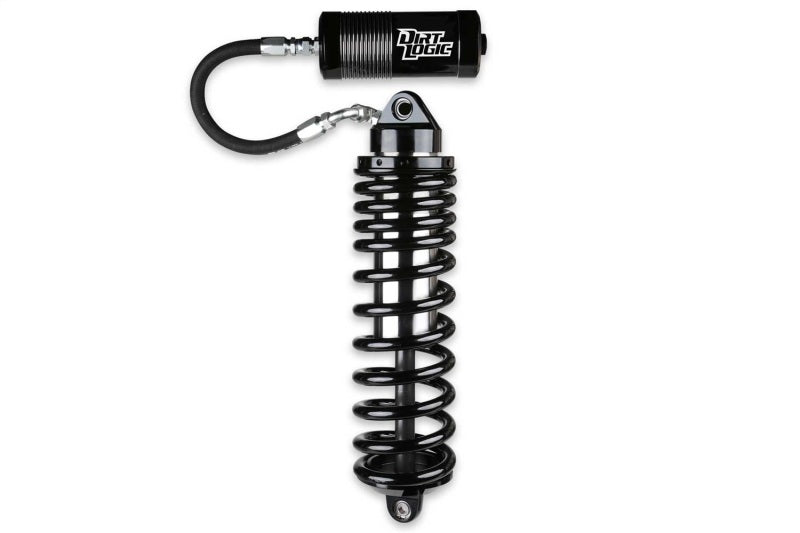

1× Fabtech 17-20 Ford F250/350 4WD Diesel 6in Front Dirt Logic 4.0 Reservoir Coilover - Driver fabFTS835232D
1× Fabtech 17-20 Ford F250/350 4WD Diesel 6in Front Dirt Logic 4.0 Reservoir Coilover - Passenger fabFTS835232P

Vehicle Fitment

Years Make Model Trim
2011–2020, 2023–2024 Ford F-250 Super Duty King Ranch
2011–2020, 2023–2024 Ford F-250 Super Duty Lariat
2018–2020, 2023–2024 Ford F-250 Super Duty Limited
2013–2020, 2023–2024 Ford F-250 Super Duty Platinum
2011–2020, 2023–2024 Ford F-250 Super Duty XL
2011–2020, 2023–2024 Ford F-250 Super Duty XLT
2011–2020, 2023–2024 Ford F-350 Super Duty King Ranch
2011–2020, 2023–2024 Ford F-350 Super Duty Lariat
2018–2020, 2023–2024 Ford F-350 Super Duty Limited
2013–2020, 2023–2024 Ford F-350 Super Duty Platinum
2011–2020, 2023–2024 Ford F-350 Super Duty XL
2011–2020, 2023–2024 Ford F-350 Super Duty XLT
2005–2007, 2017–2020 Ford F250
2005–2007, 2017–2020 Ford F350

Air Freight Prohibited: false
Not Carb Approved: false
Carb Acknowledgement Required: f
Ltl Freight Required: false
Prop 65: Y
Epa: N/A

For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.
6in. RAD ARM SYS W/4.0/2.25 17-18 FORD F250/F350 4WD DIESEL
TIRE SIZE - 37/12.50R17 WHEEL - 17X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R18 WHEEL - 18X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 3. NON DUALLY MODELS ONLY.; 42. WILL NOT FIT GAS MOTORS.; 163. VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.; 175. VEHICLES W/ FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276.
