Kit includes

Vehicle Fitment

Fabtech?s 8" 4 Link Conversion System for the Ford Super Duty is designed to provide maximum suspension performance for both on and offroad use. The system replaces the factory Radius Arm suspension with heavy duty 4 Link components for increased strength and functionality. The system will provide less caster change throughout the travel range which benefits on road driving. When offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. Unique to this 8" system is Fabtech?s extended length Track Bar to address the hyper sensitive steering box of the late model Super Duty. Fabtech is the only manufacturer with this exclusive system that offers proper steering performance. Fabtech?s extended length Track Bar is 4" longer than stock and is offset to the driver side with a stout 1/4" thick steel mounting bracket. This design helps keep the Track Bar and Draglink closer to parallel than the factory angles to reduce push in the steering. The Track Bar allows for full lock steering of 15.50 wide tires w/ 4 3/4" BS wheels. Fabtech?s 4 Link System has been proven in over 10 years of service in rugged commercial and military applications to ensure long life on your daily driven vehicle. High quality components with properly designed suspension geometry makes this Super Duty system the pinnacle of all suspensions. Comes with a free 5 year 60,000 mile powertrain warranty.

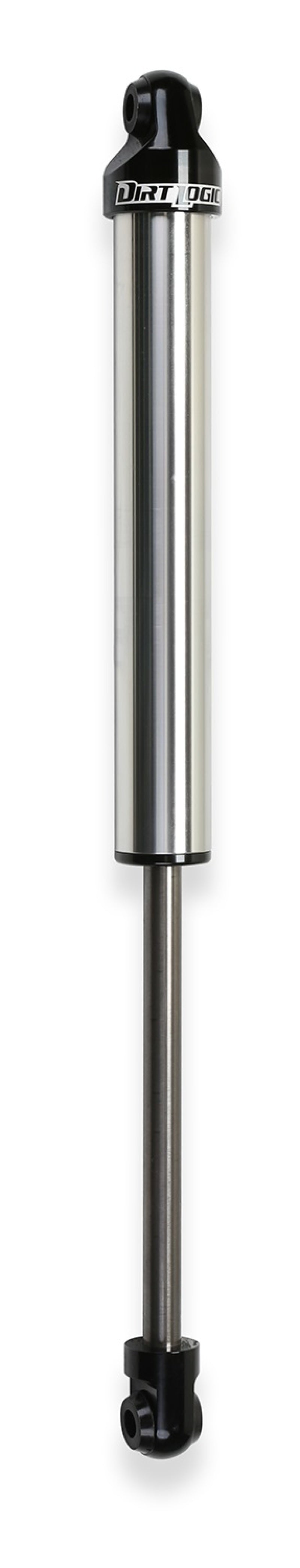

8in. 4LINK SYS W/COILS/DL RESI SHKS 17-18 FORD F250/F350 4WD DIESEL
TIRE SIZE - 38/13.5R18 WHEEL - 18X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 38/15.5R18 WHEEL - 18X9 W/4 3/4" BS W/CUTTING; TIRE SIZE - 38/13.5R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 38/15.5R20 WHEEL - 20X9 W/5" BS W/CUTTING; TIRE SIZE - 40/15.5R20 WHEEL - 20X9 W/5" BS W/CUTTING; 3. NON DUALLY MODELS ONLY.; 163. VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.; 167. DIESEL MODELS ONLY.; 175. VEHICLES W/ FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276.; 179. FRONT DRIVESHAFT MODIFICATION IS REQUIRED OR ORDER DRIVESHAFT (FTS92035)
