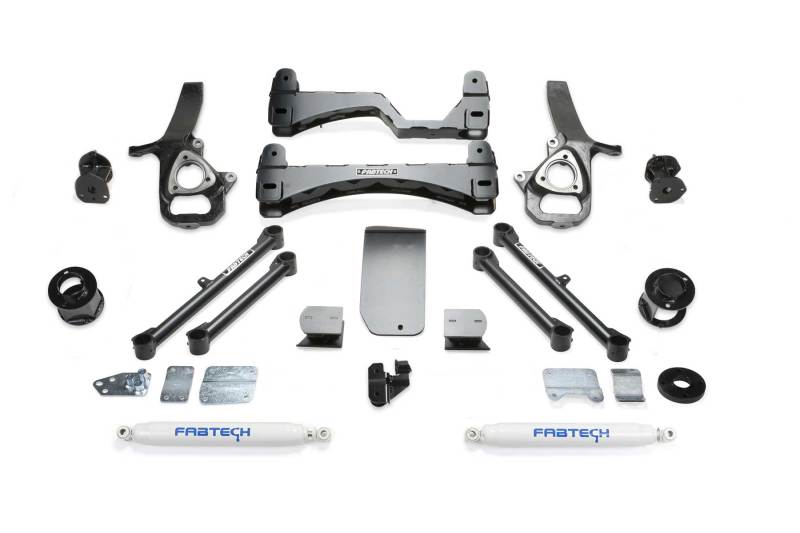

Kit includes
| Qty | Component | Part # |
|---|---|---|
| 1× | Fabtech 13-17 Ram 1500 4WD 6in Basic System - Component Box 3 | fabFTS23038 |
| 1× | Fabtech 2019 Ram 1500 4WD 6in Lift System - Component Box 1 | fabFTS23200 |
| 1× | Fabtech 2019 Ram 1500 4WD 6in Lift System - Component Box 2 | fabFTS23201 |
| 2× | Fabtech 2019 Ram 1500 4WD 6in Rear Performance Shock Absorber | fabFTS7348 |
| Years | Make | Model | Trim |
|---|---|---|---|
| 2012–2013, 2019–2023 | RAM | 1500 | BIG Horn |
| 2012–2013 | RAM | 1500 | Express |
| 2013, 2019–2023 | RAM | 1500 | HFE |
| 2012–2013, 2019–2023 | RAM | 1500 | Laramie |
| 2012–2013, 2019–2020 | RAM | 1500 | Laramie Longhorn |
| 2019–2023 | RAM | 1500 | Limited |
| 2021–2023 | RAM | 1500 | Limited Longhorn |
| 2019–2023 | RAM | 1500 | Lone Star |
| 2012–2013 | RAM | 1500 | Outdoorsman |
| 2013 | RAM | 1500 | R/T |
| 2019–2023 | RAM | 1500 | Rebel |
| 2012–2013 | RAM | 1500 | SLT |
| 2020–2021 | RAM | 1500 | Special Service |
| 2012–2013 | RAM | 1500 | Sport |
| 2012 | RAM | 1500 | ST |
| 2012–2013, 2019–2023 | RAM | 1500 | Tradesman |
| 2012 | RAM | 1500 | Tradesman HD |
| 2021, 2023 | RAM | 1500 | TRX |
| 2014–2015 | RAM | 2500 | BIG Horn |
| 2014–2016 | RAM | 2500 | Laramie |
| 2014–2015 | RAM | 2500 | Laramie Limited |
| 2014–2016 | RAM | 2500 | Laramie Longhorn |
| 2014–2015 | RAM | 2500 | Lone Star |
| 2014–2015 | RAM | 2500 | Outdoorsman |
| 2014–2016 | RAM | 2500 | SLT |
| 2014–2016 | RAM | 2500 | Tradesman |
| 2013–2016 | RAM | 3500 | BIG Horn |
| 2013–2016 | RAM | 3500 | Laramie |
| 2014–2015 | RAM | 3500 | Laramie Limited |
| 2013–2016 | RAM | 3500 | Laramie Longhorn |
| 2016 | RAM | 3500 | Limited |
| 2013–2015 | RAM | 3500 | Lone Star |
| 2013–2016 | RAM | 3500 | SLT |
| 2013 | RAM | 3500 | ST |
| 2013–2016 | RAM | 3500 | Tradesman |
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Carb Acknowledgement Required: f |
| Ltl Freight Required: false |
| Prop 65: Y |
| Epa: N/A |
This system is a great choice for Ram owners looking to keep that stock ride yet want big tires and wheels. The factory suspension is relocated with heavy duty bolt on bracketry that will provide years of trouble free service. The system features Fabtechs proven IFS technology with extended length ductile iron steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4 thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain. Rear lift is accomplished with steel coil spring spacers that utilize the factory coil springs for stock load carrying capacity with a great highway ride. The Basic System includes front coilover spacers that utilize the factory Coilover shocks for a stock like ride characteristic. Rear shock options include Performance twin tube or Stealth monotube shocks.
6in. BASIC SYS W/PERF SHKS 2019 RAM 1500 4WD
TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 14. CAN NOT USE OEM WHEEL AND TIRE.; 130. WILL NOT FIT FACTORY AIR SUSPENSION.; 196. MUST USE AFTERMARKET 20" WHEELS OR LARGER.; 203. DOES NOT FIT 2019 RAM 1500 CLASSIC MODELS
No fitment data available for this product.
This product is covered by the manufacturer's warranty against product defects and missing components in the package. To file a claim, use the brand-specific links on our warranty page.
