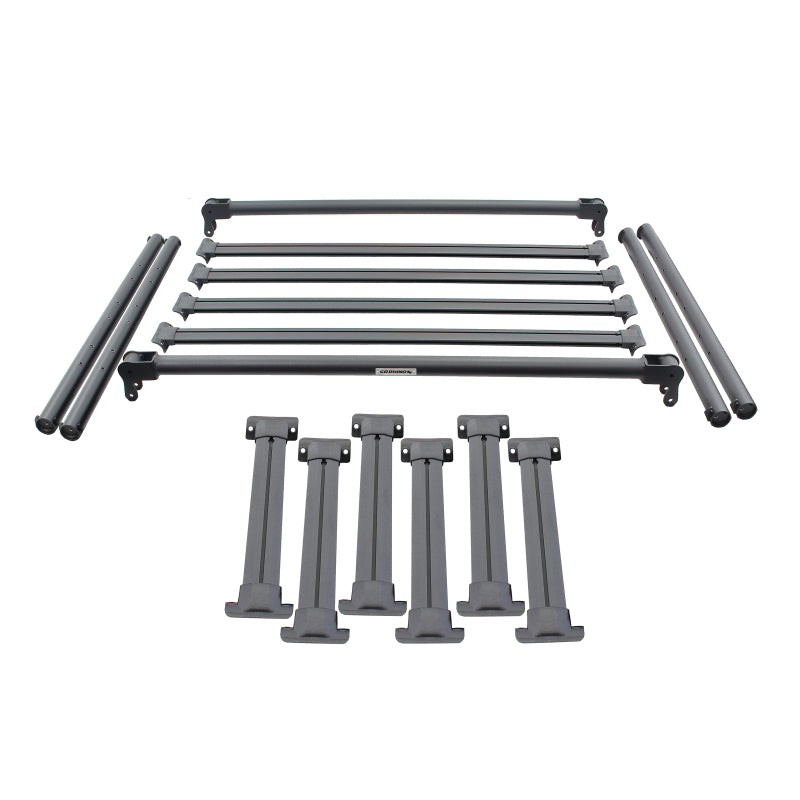

Kit includes

Go Rhino’s XRS Xtreme Rack features 4-CORE technology for unlimited ways to haul overland cargo and mount trail gear. 4-CORE is an extruded track system of slotted bars that can accept any 1/4 inch-20 hex bolt which means almost any accessory can be bolted to the rack. The combinaton of steel and aluminum offers both strength and weight savings and can easily support OE roofop tents. Installaton is drill-free and works with both factory bed rack mountng systems as well as the included bed rail mounting clamps. One Accessory Gear Plate is included. A large family to Check out our assortment of XRS and 4-CORE compatible accessories to cover your overlanding and camping needs. it includes Quick Release Rooftop Tent Brackets, fold-down Accessory Gear Table, and much more. The XRS Overland Racks come with a Limited Lifetime warranty on materials and construction and a 5 year warranty on the the textured black finish
Now You CAN Take It With You
No drilling required

• Included multi-functional gear plate can be mounted outside, inside, on top and underside of rack and can hold several accessories including fuel tanks, water tanks, recovery boards, etc.


• Vertical 4-Core side bars provide unlimited accessory mounting options for popular off-road and overlanding accessories


• Optional bolt on Accessory Gear Table folds down and allows for double the gear carrying capacity-Sold Separately


• Limited Lifetime warranty on materials and construction and a 5 year warranty on the Textured Black Finish.


• Each upright has integrated threaded fasteners for accessory or light mounting and a standard MOLLE system


• Equipped with Go Rhino's exclusive 4-Core cross bar system that accepts any 1/4" x 20 hardware


• Available with factory bed track mounting systems or bed rail clamp on mounting brackets


• Optional bolt on rear Reel Handles are wide enough to stow tow straps

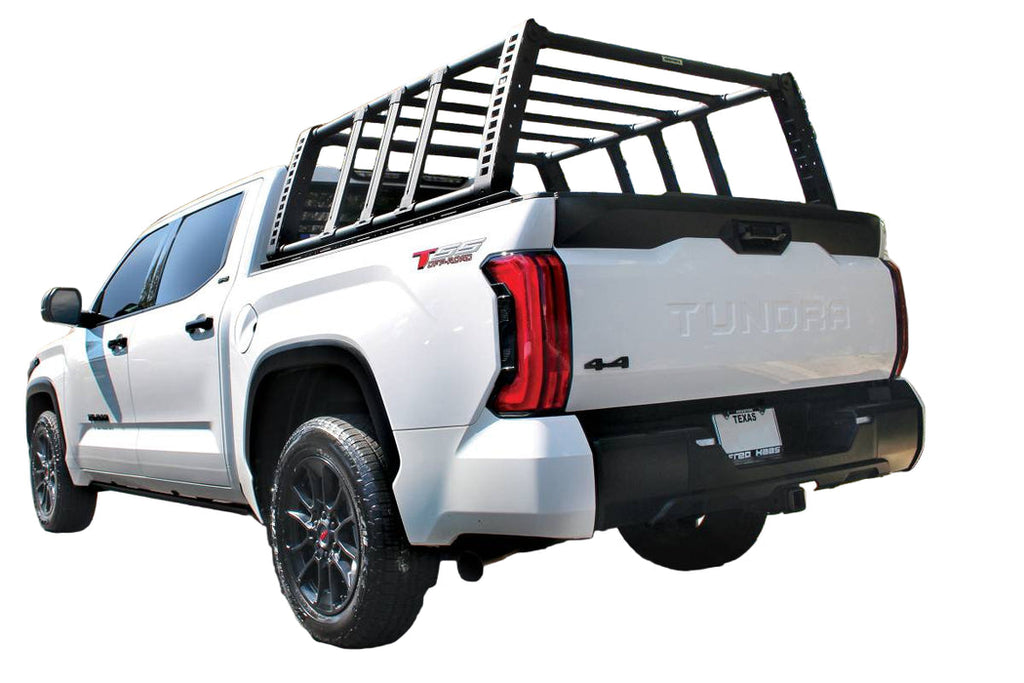

• XRS Overlanding Rack System for managing trail gear and accessories


• Mounting bracket options provide additional tie down locations


• Aluminum support bars and rails with steel vertical uprights


• Hold up to 300lbs Static and 600lbs Dynamic


• 68"L x 63"W x 21 3/4"H

Vehicle Fitment
