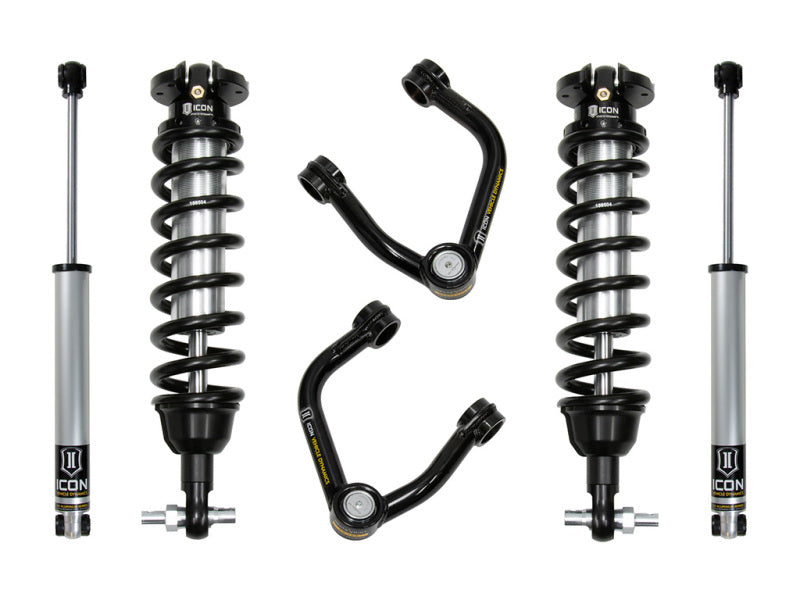

Kit includes

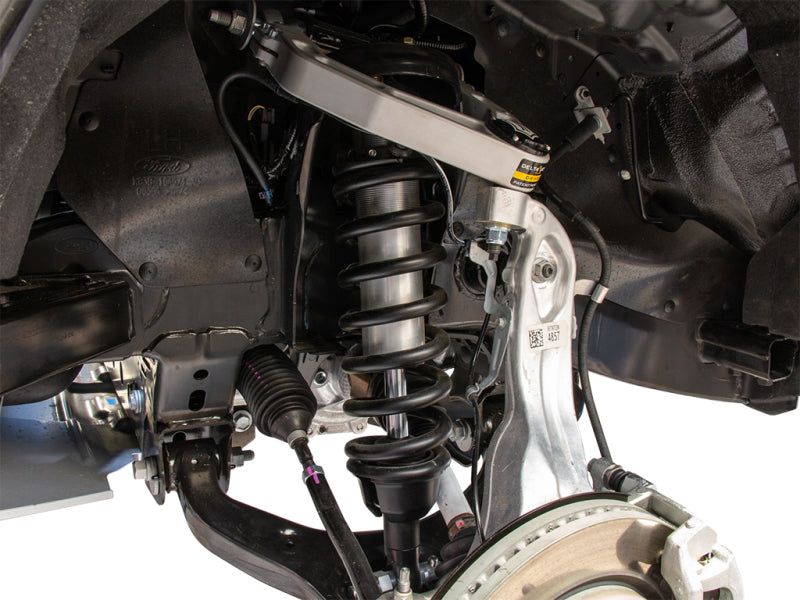

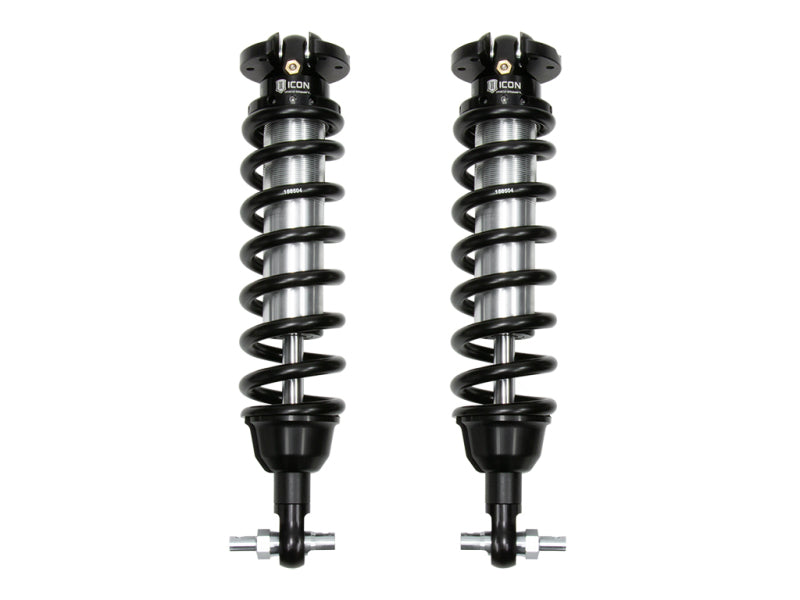

ICON Vehicle Dynamics 2019-2021 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform’s suspension and addressed any areas where performance could be extracted. The Stage 2 (Tubular) system includes vehicle-specific tuned, extended travel 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. The included ICON tubular upper control arm kit is designed to improve the overall performance with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the ICON Delta Joint allows for full bump and extended droop travel of the front suspension while eliminating bind. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2021 Ford Ranger Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
ICON complete suspension systems lift your Ford Ranger while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

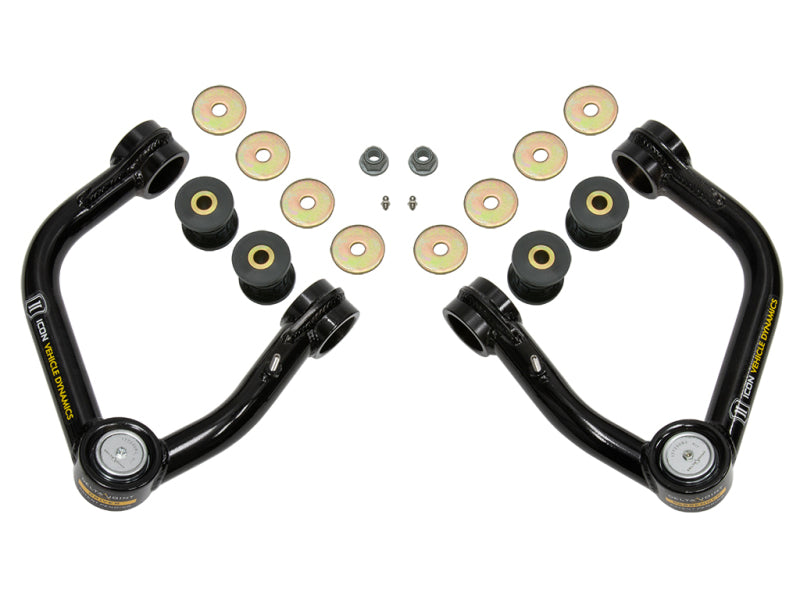

• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling


• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball


• Lifetime guarantee against ICON fabricated component and coil spring breakage or manufacturer defect


• Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)


• ICON shocks feature vehicle specific tune for superior performance and ride quality


• Corrosion resistant CAD plated shock body with 7/8" shaft (2.5 Series coilovers)


• Increased lift height allows for fitment of larger and more aggressive tires


• Height-adjustable coilovers provide a range of 0-3.5” of front lift height


• Direct bolt-in design makes for a simple and straightforward installation


• Delta Joint ball joints carry ICON's exclusive 5 year limited warranty


• FK Rod End bearings provide extended longevity and minimal deflection


• 35% increase in front wheel travel over stock


• Shocks are fully rebuildable and revalvable


• Fits 2WD & 4WD applications

Vehicle Fitment
