Kit includes

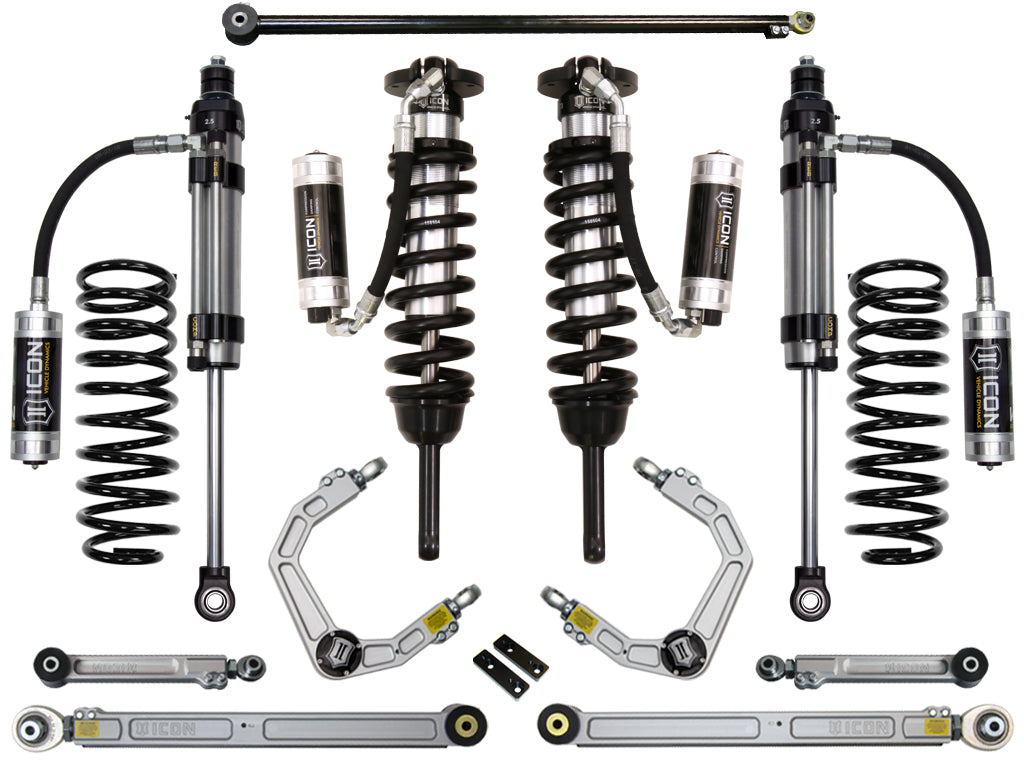

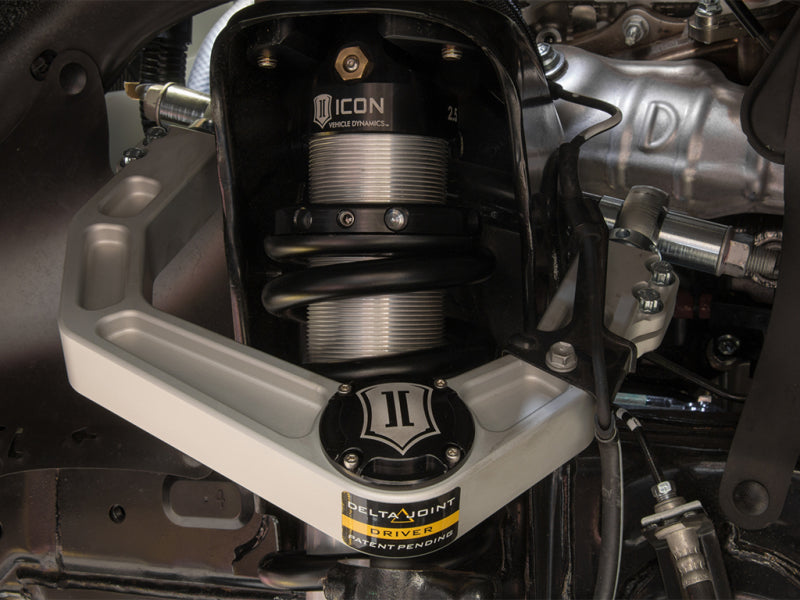

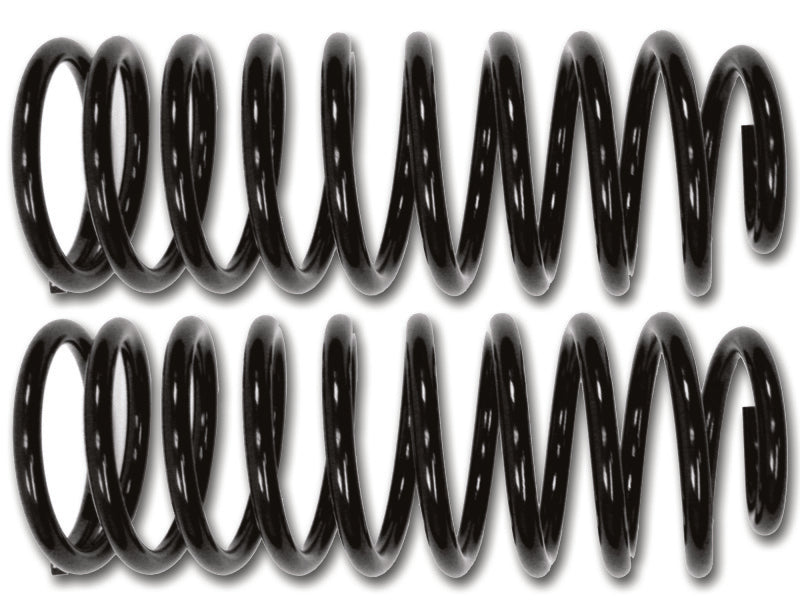

The Stage 8 system includes vehicle-specific tuned 2.5 Series Extended Travel coilover shocks equipped with ICON's CDC (Compression Damping Control) Valve. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. In addition, the coilovers feature a remote reservoir for exceptional cooling properties, ICON-engineered coil springs for superior vehicle "feel" through the range of travel, and are height adjustable from 0-3.5” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. The coilovers are paired with billet aluminum Delta Joint upper control arms that allow for extended wheel travel and on-vehicle adjustment of the upper control arms to dial in front end alignment. ICON 2” lift rear coil springs are paired with 2.5 Omega bypass remote reservoir rear shocks that combine vehicle-specific valving, more aggressive bump zones, and compression and rebound adjustment to give end-users ultimate control of performance and ride quality. ICON's billet aluminum upper and lower links are much stronger than the OE units, improve articulation, and can be adjusted while installed on the vehicle for optimum pinion angle. On top of it all, the lower links have been designed to provide correct roll steer geometry for the best possible handling on and off-road. An adjustable rear track bar is also included for KDSS compatibility that also helps correct rear end alignment. The ICON Vehicle Dynamics 2010-UP Lexus GX460 Stage 8 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

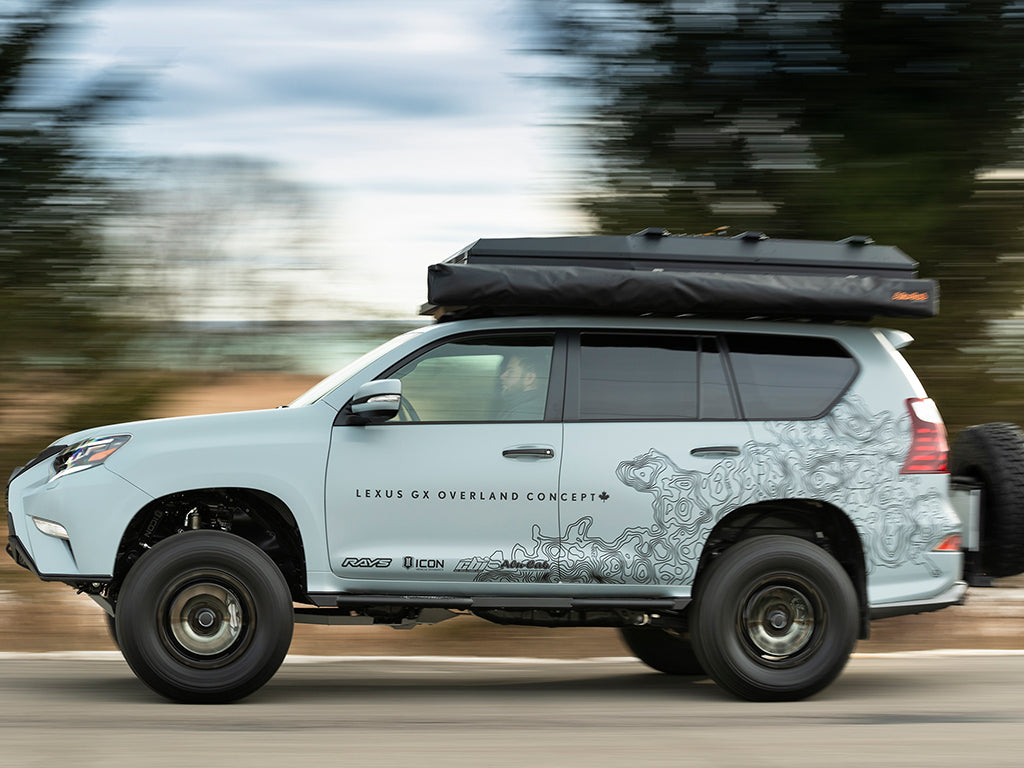

2010-UP LEXUS GX460 0-3.5" LIFT STAGE 8 SUSPENSION SYSTEM WITH BILLET UCA
APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT.

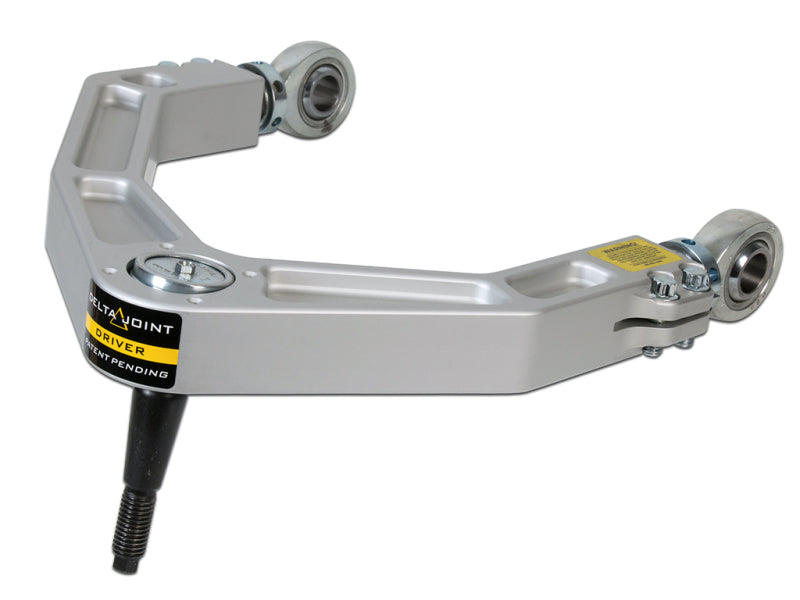

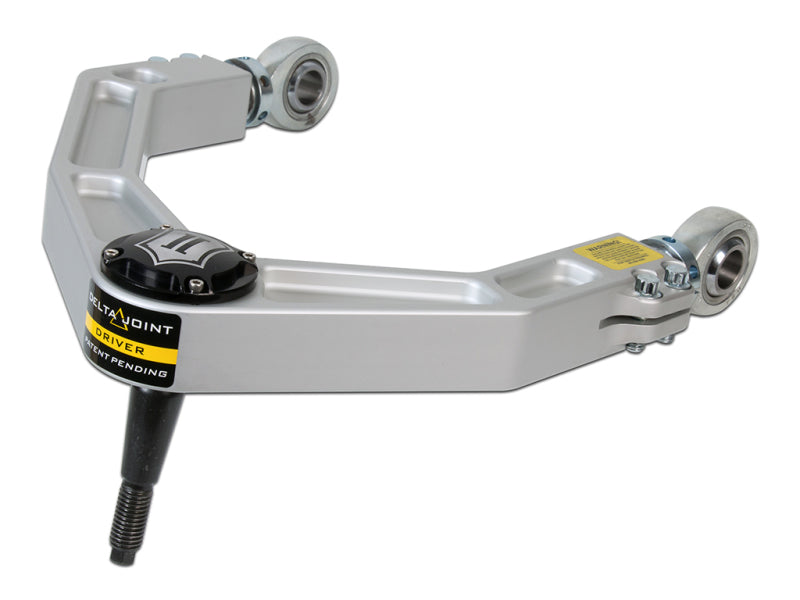

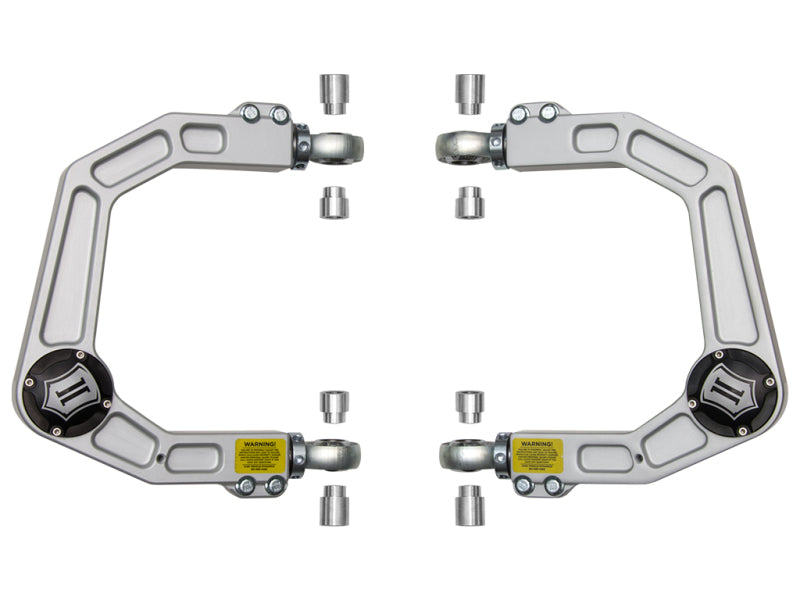

• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling

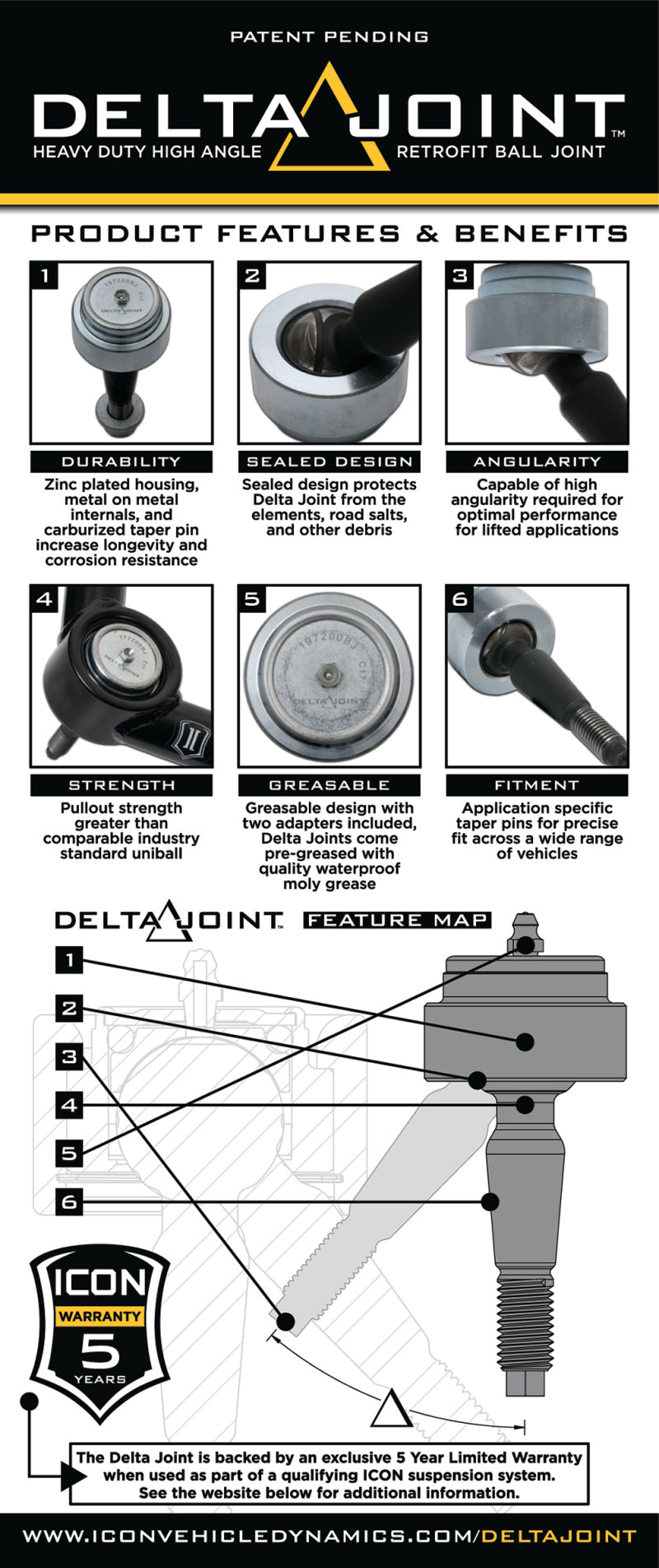

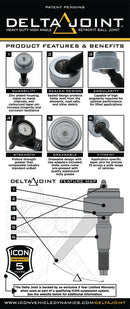

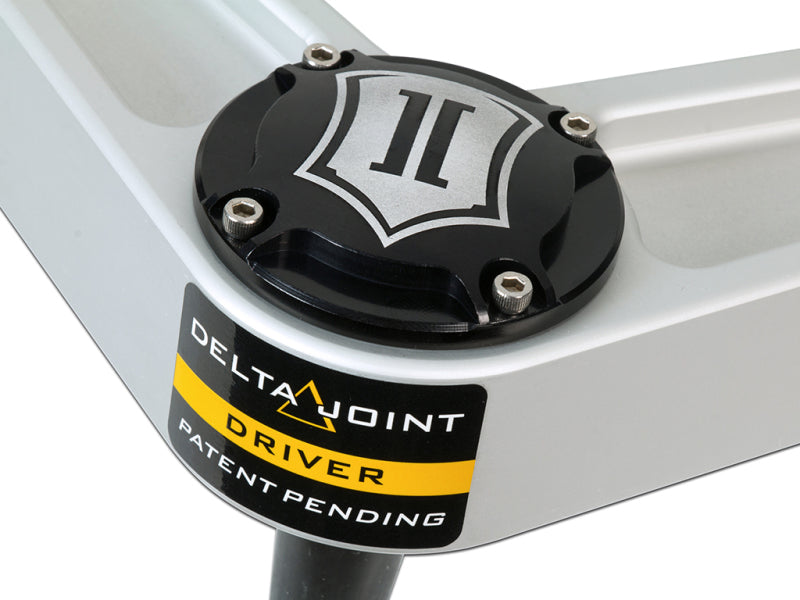

• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball

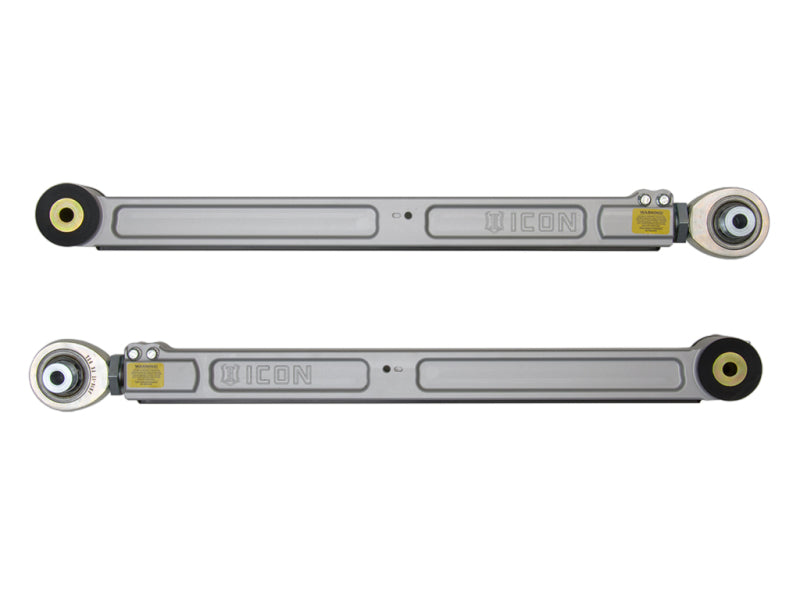

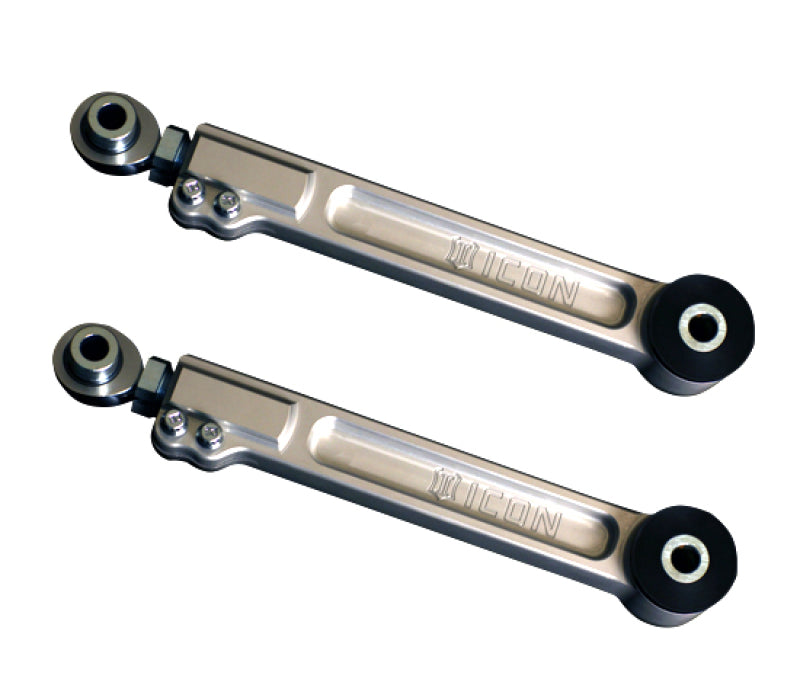

• Billet rear upper and lower links offer increased strength, improved geometry, and on-vehicle pinion angle adjustment


• Omega Series two-tube bypass rear shocks allow for compression and rebound damping adjustment without need for tools


• CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools


• Vehicle specific tuned front and rear shocks for superior shock damping and control

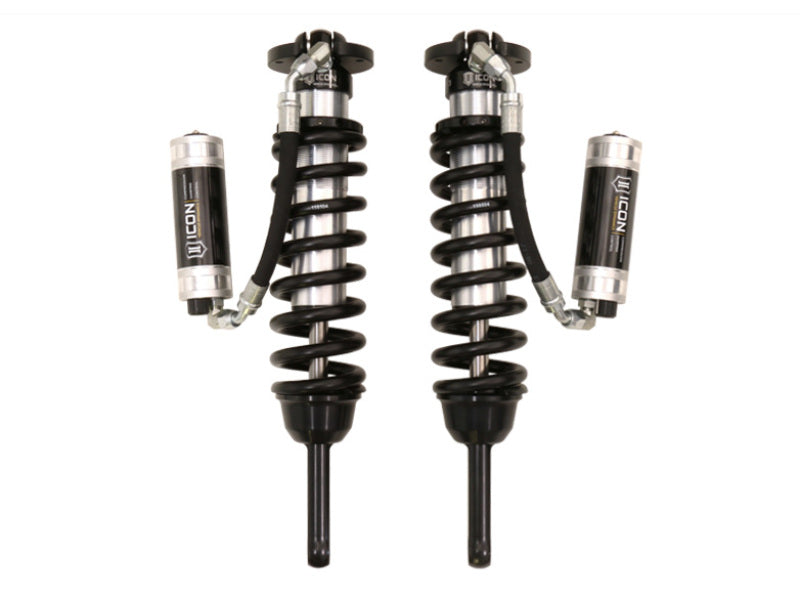

• Adjustable coilovers with remote reservoirs provide 0-3.5" of lift height


• Corrosion resistant CAD plated coilover shock body with 7/8" shaft

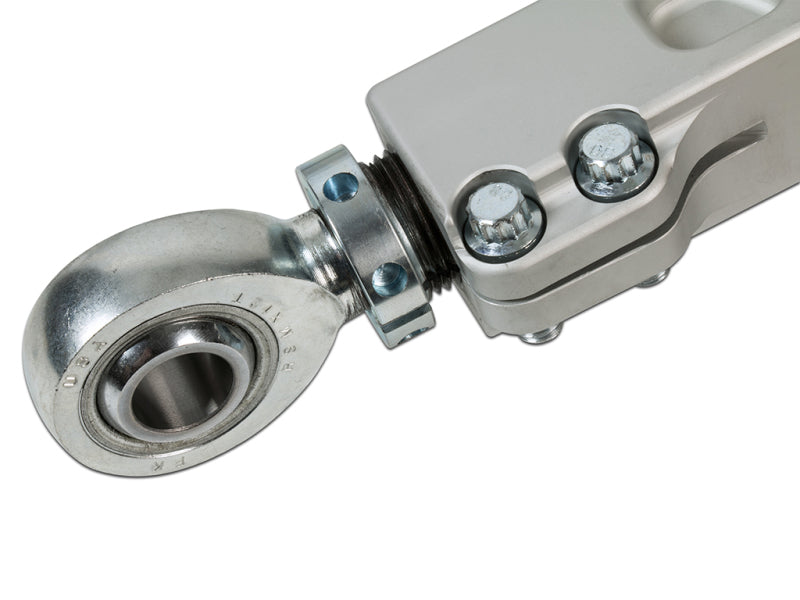

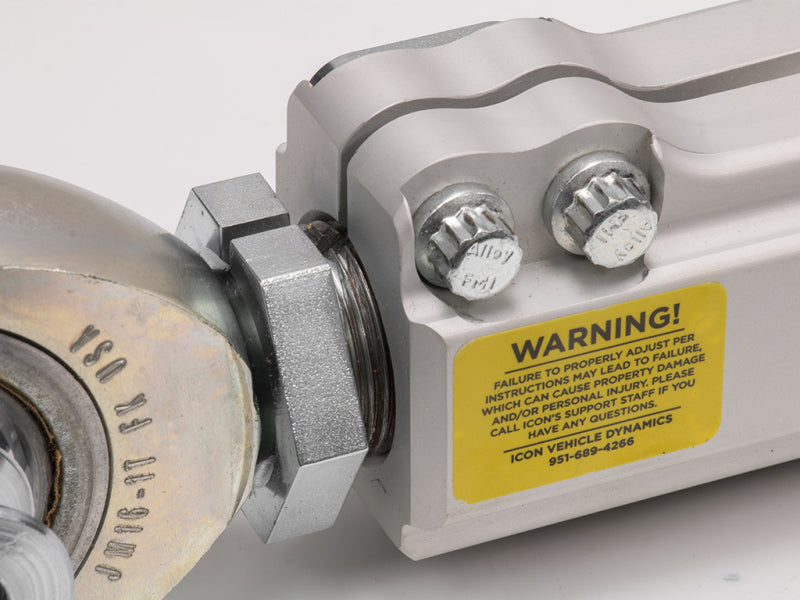

• FK Rod End bearings for extended longevity and minimal deflection


• Bolt-on system means no cutting or welding necessary for install

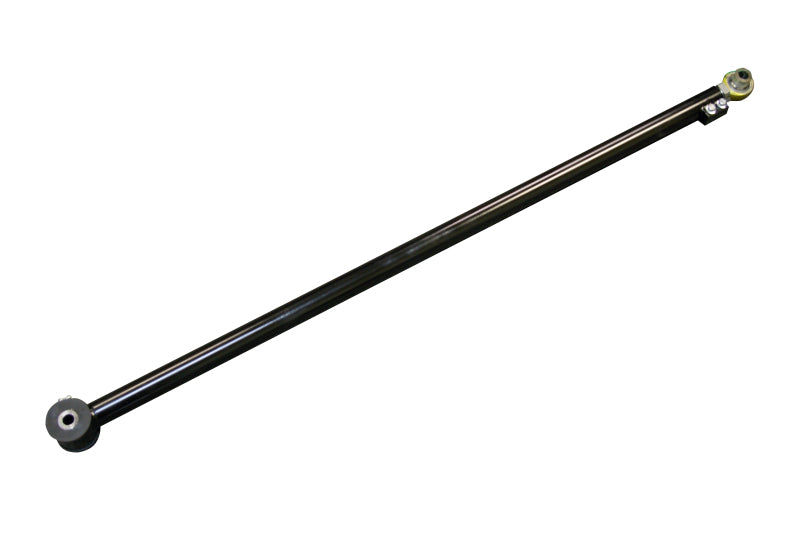

• Included adjustable rear track bar ensures KDSS compatibility

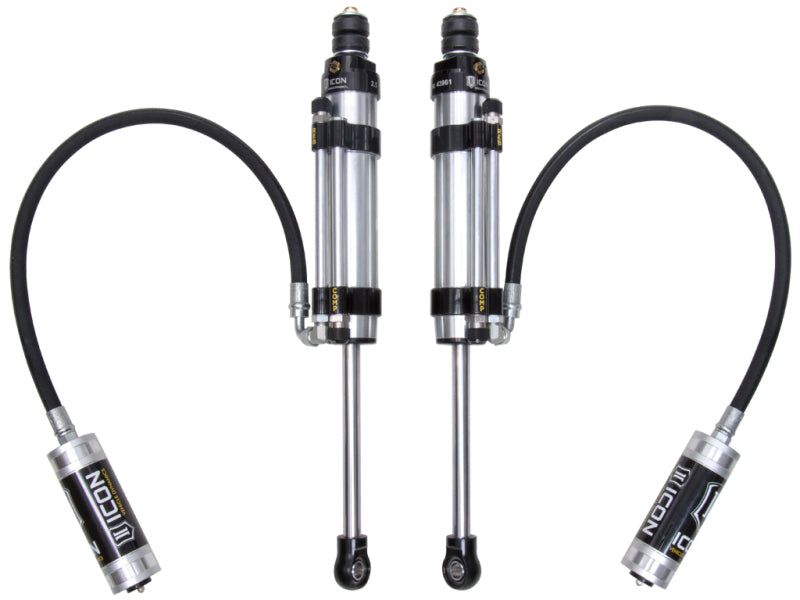

• 2.5 Series rear remote reservoir shocks with 7/8" shafts

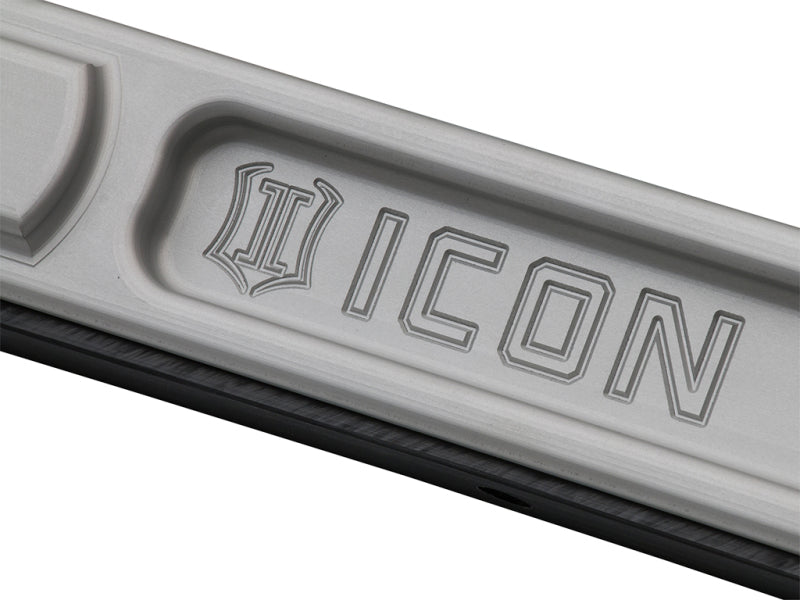

• 6061 aircraft grade aluminum CNC machined components


• Increased wheel travel and ride quality over stock
