ICON Intelligent Control (IIC) is the computer that monitors, analyzes, and processes data in real-time. Information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. IIC has the capability to collect information at over 1000 times per second, process the data and make adjustments, then deliver those changes to Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds. IIC also works as a data driver to connect the user to ICON’s proprietary mobile App interface for monitoring and adjusting shock settings. The IIC is mounted to the 2014-2021 Tundra using application specific mounting brackets, hardware and wire harnesses, ensuring an easy and clean looking install.

2014-2021 TOYOTA TUNDRA ICON INTELLIGENT CONTROL INSTALL KIT

• Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
• Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle

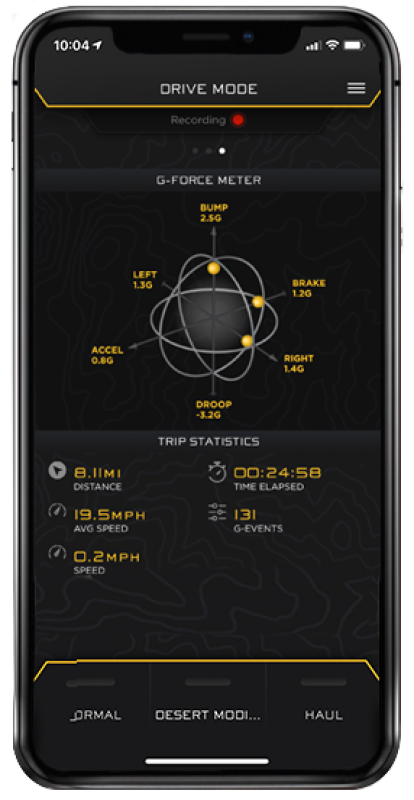

• Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips

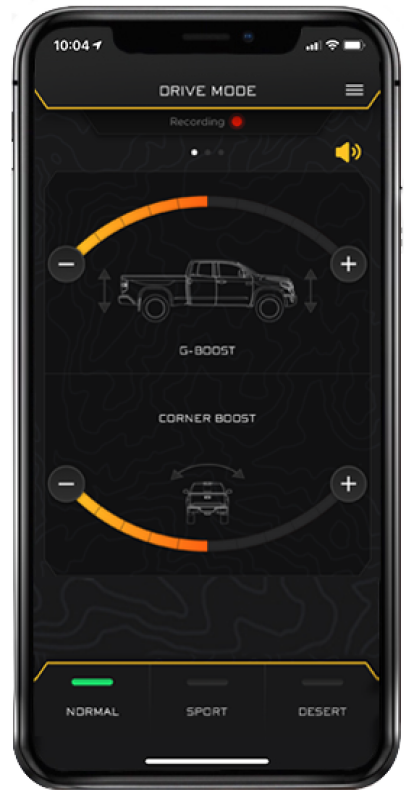

• Mobile app offers preconfigured “Drive Modes” as well as the ability to create custom presets
• Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds

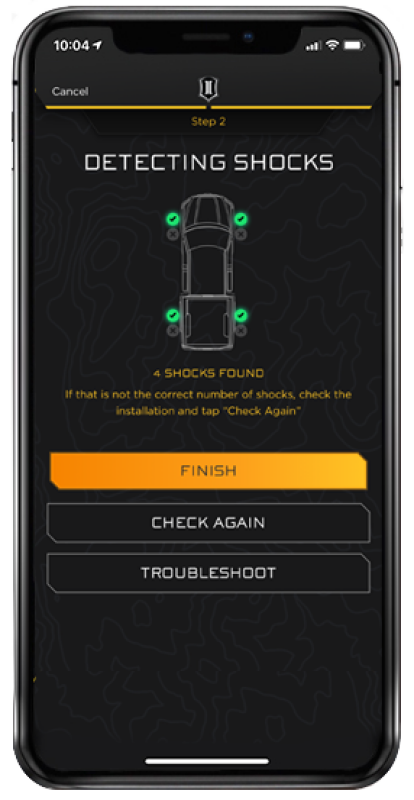

• User interface provided by IIC Mobile App via Bluetooth connection to iOS device

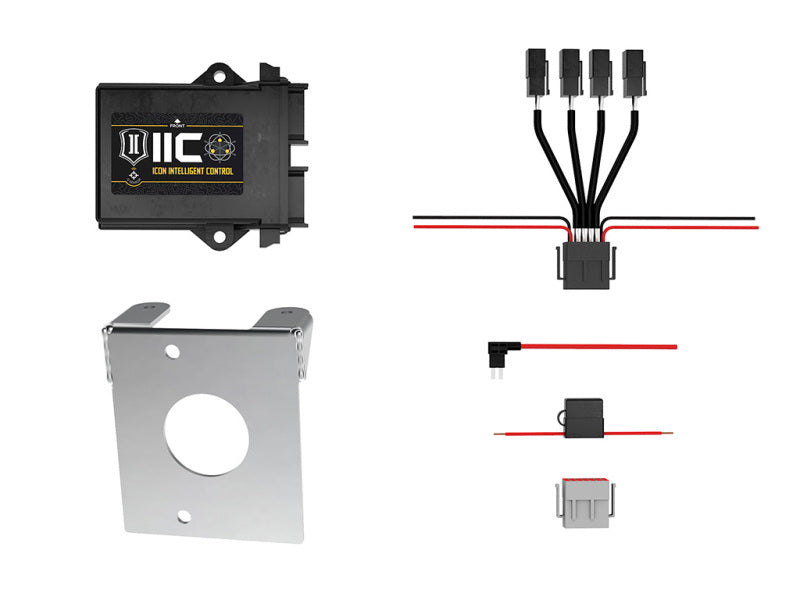

• Application specific mounting brackets, hardware and wire harnesses
• Onboard sensors monitor G-forces and movement of vehicle chassis
