Kit includes

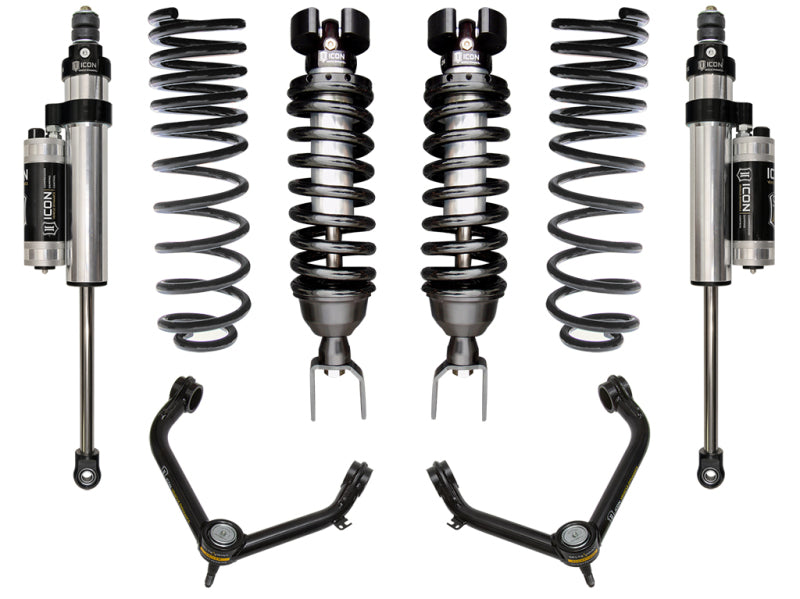

ICON Vehicle Dynamics Dodge Ram 1500 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 5 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-1.5" of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s tubular steel upper control arms with Delta Joints are included for additional strength and improved suspension geometry for more predictable handling. ICON 2.5 Aluminum Series CDCV piggyback reservoir rear shocks offer compression damping adjustability and when paired with 1.5" lift, dual rate rear coil springs balance the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-UP Ram 1500 Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

2019-UP RAM 1500 2/4WD 0-1.5" LIFT STAGE 5 SUSPENSION SYSTEM WITH TUBULAR UCA

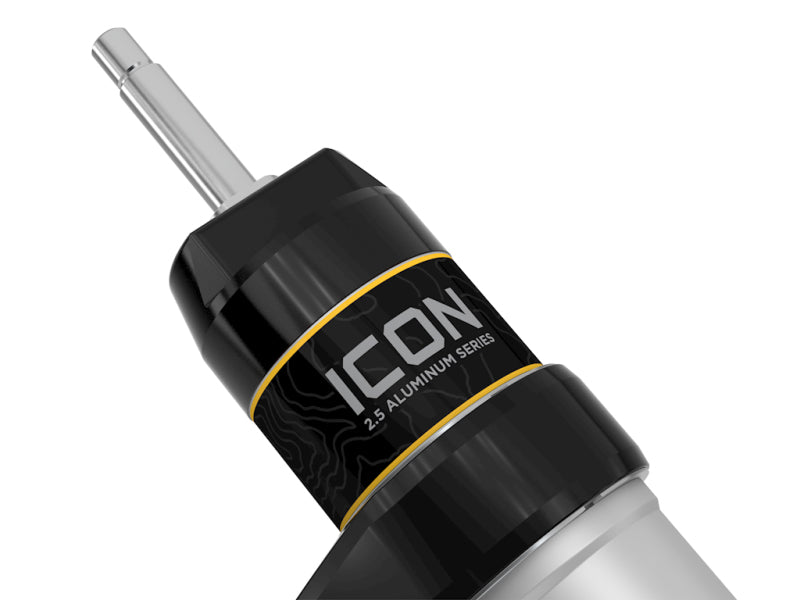

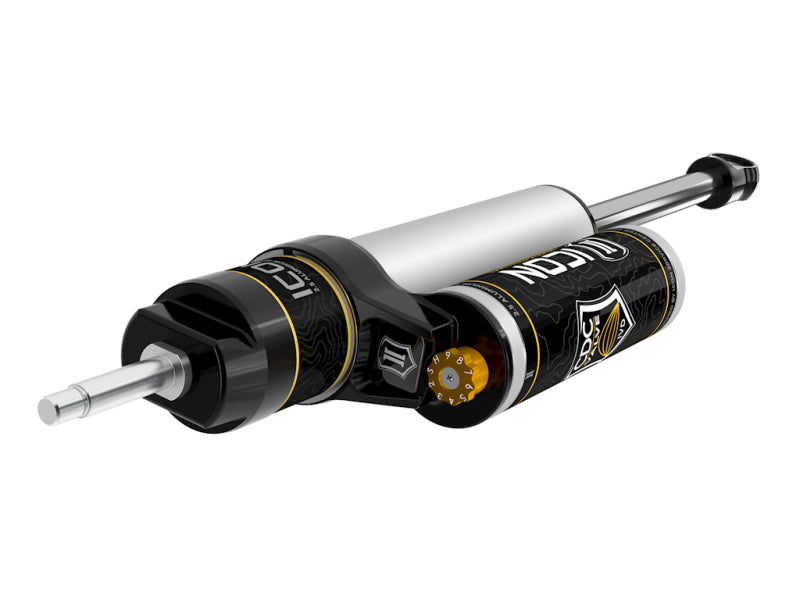

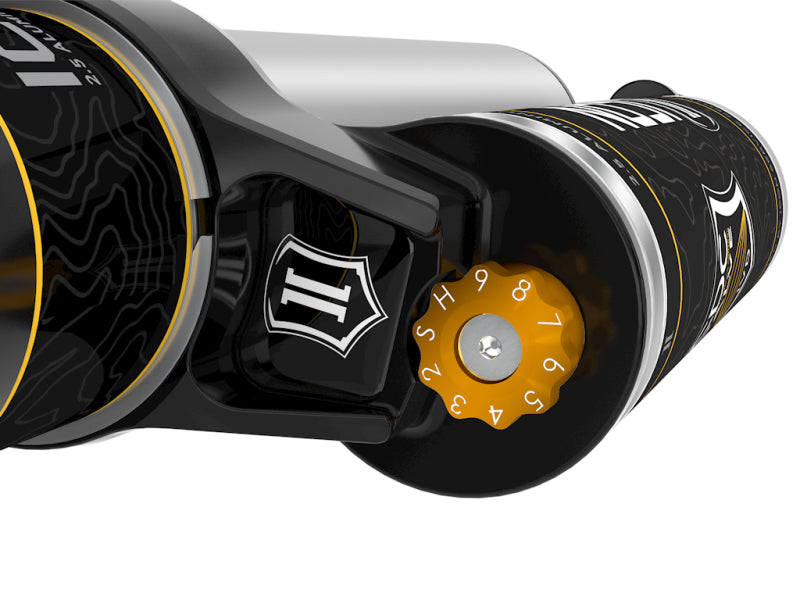

• Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression damping changes to suit all types of terrain and vehicle cargo configurations
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball

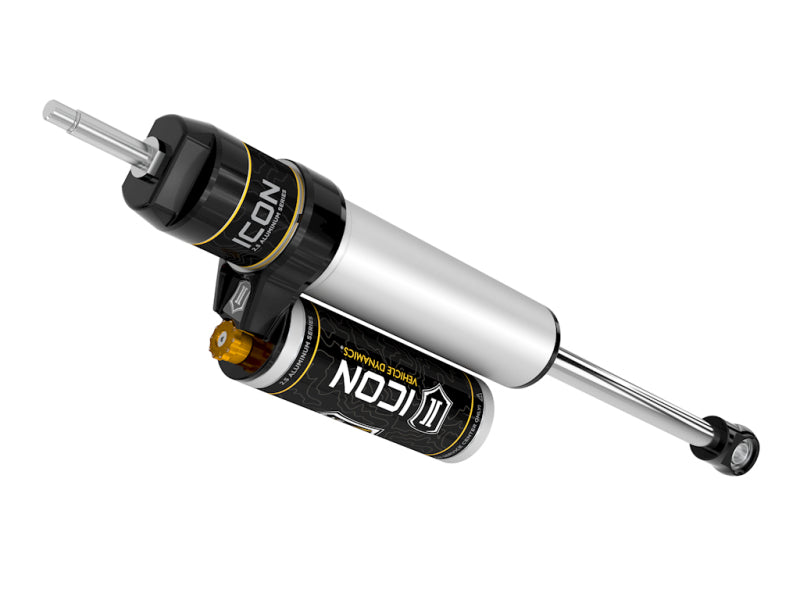

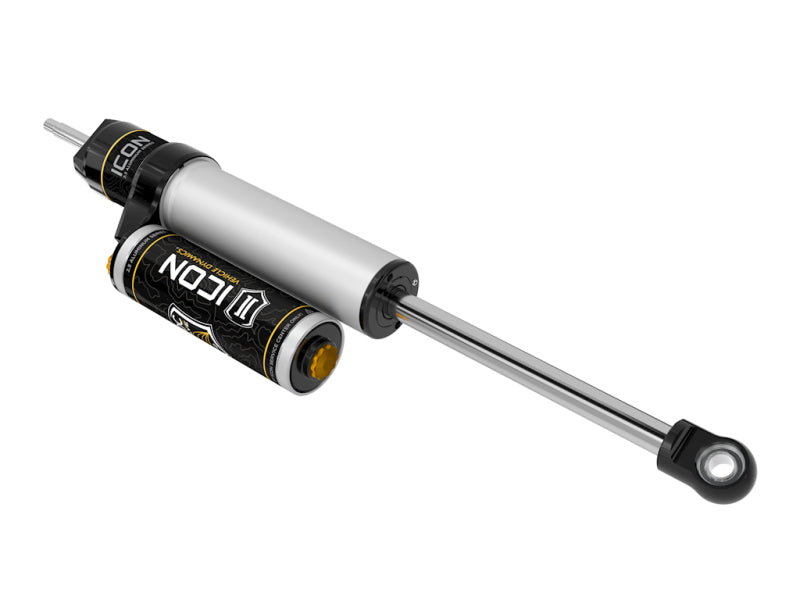

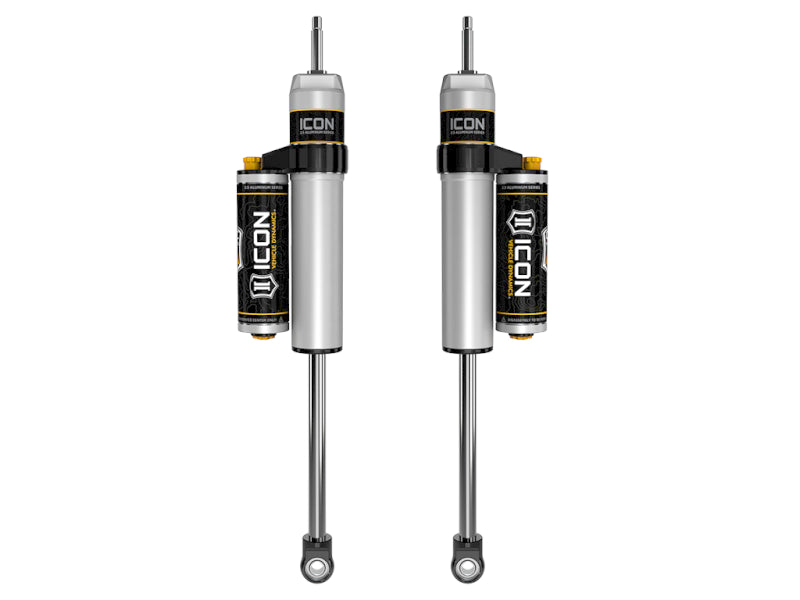

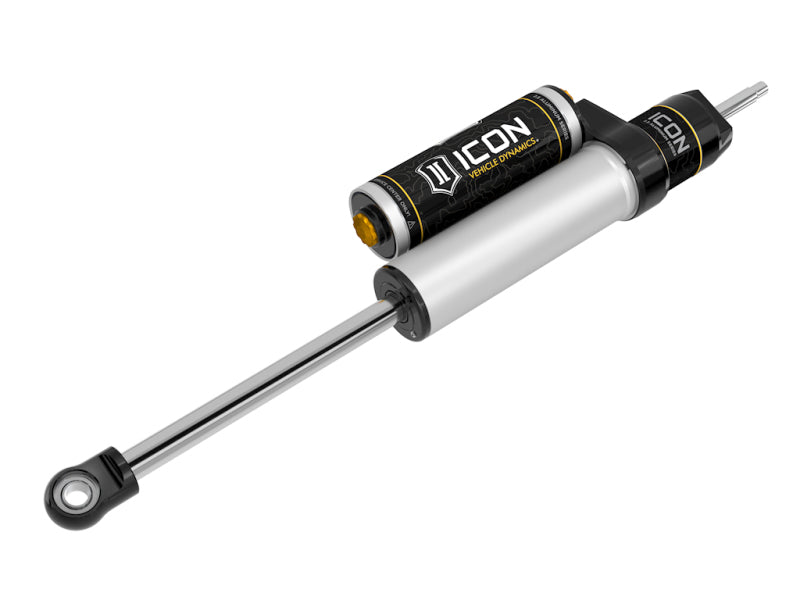

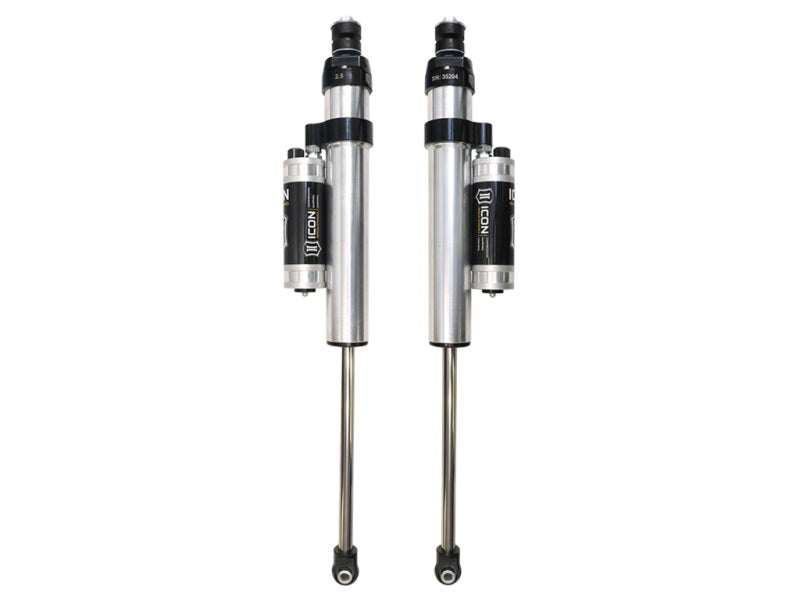

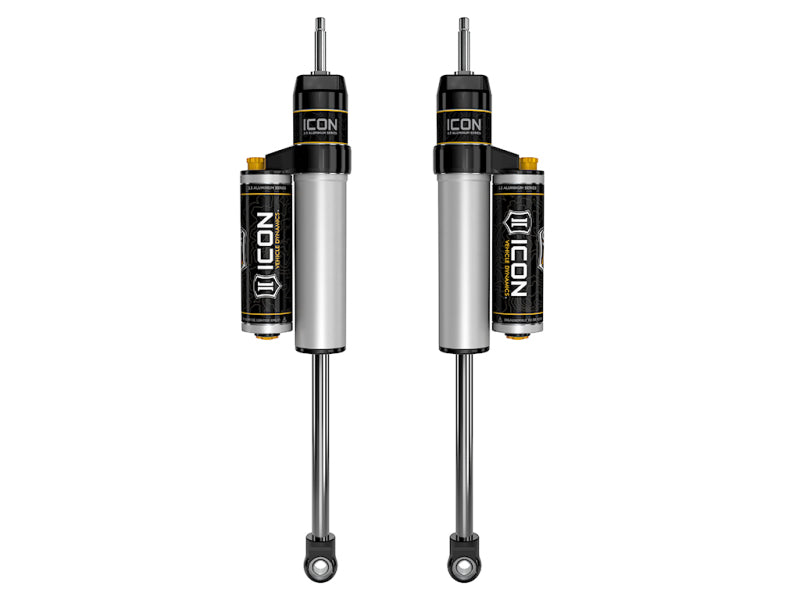

• Rear 2.5 Aluminum Series piggyback shocks feature one-piece impact extruded aluminum cylinders and 7/8" shafts

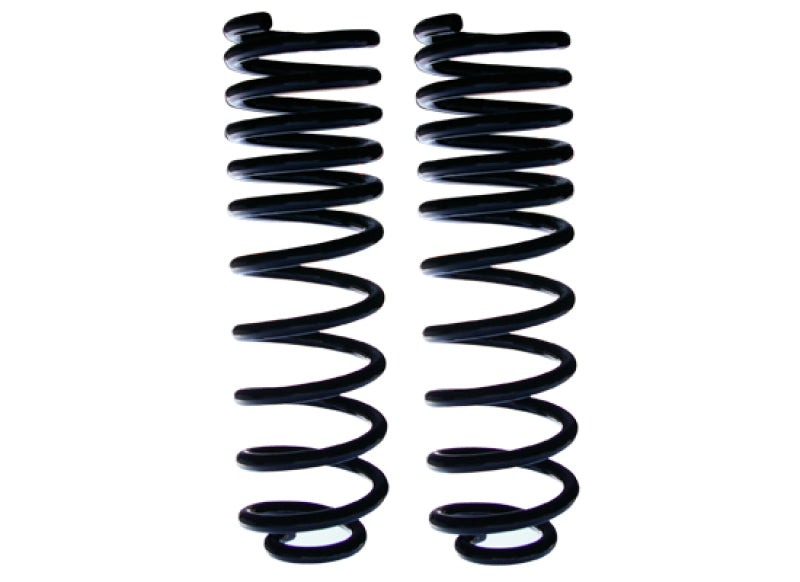

• 1.5" lift, dual rate rear coil springs offer incredible ride quality and increased suspension performance

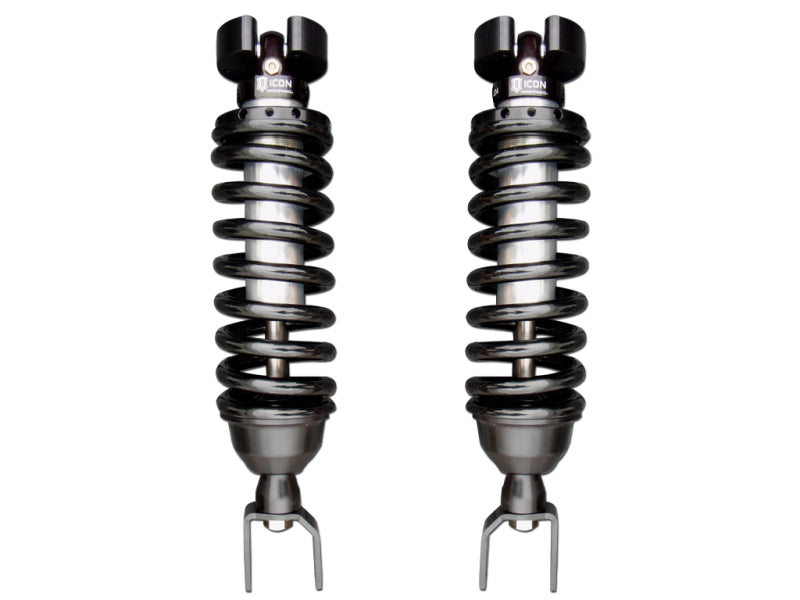

• Adjustable coilovers from 0-1.5" of lift height allow for fitment of larger and more aggressive tires
• ICON 2.5 Series shocks feature vehicle specific tune for superior performance and ride quality
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

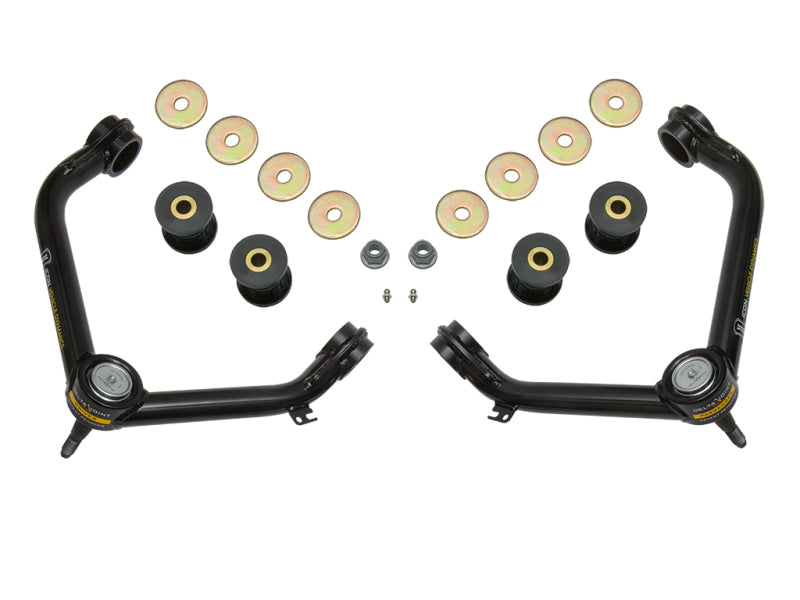

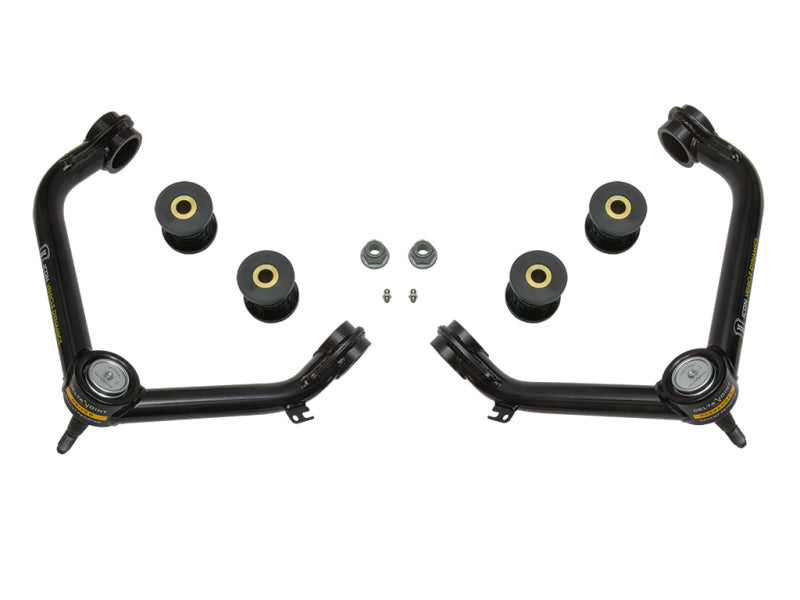

• ICON upper control arms improve suspension geometry for predictable handling
• Corrosion resistant CAD plated coilvoer shock bodies with 7/8? shafts
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• Shocks are fully rebuildable and revalvable
• Fits 2WD & 4WD applications
