Kit includes

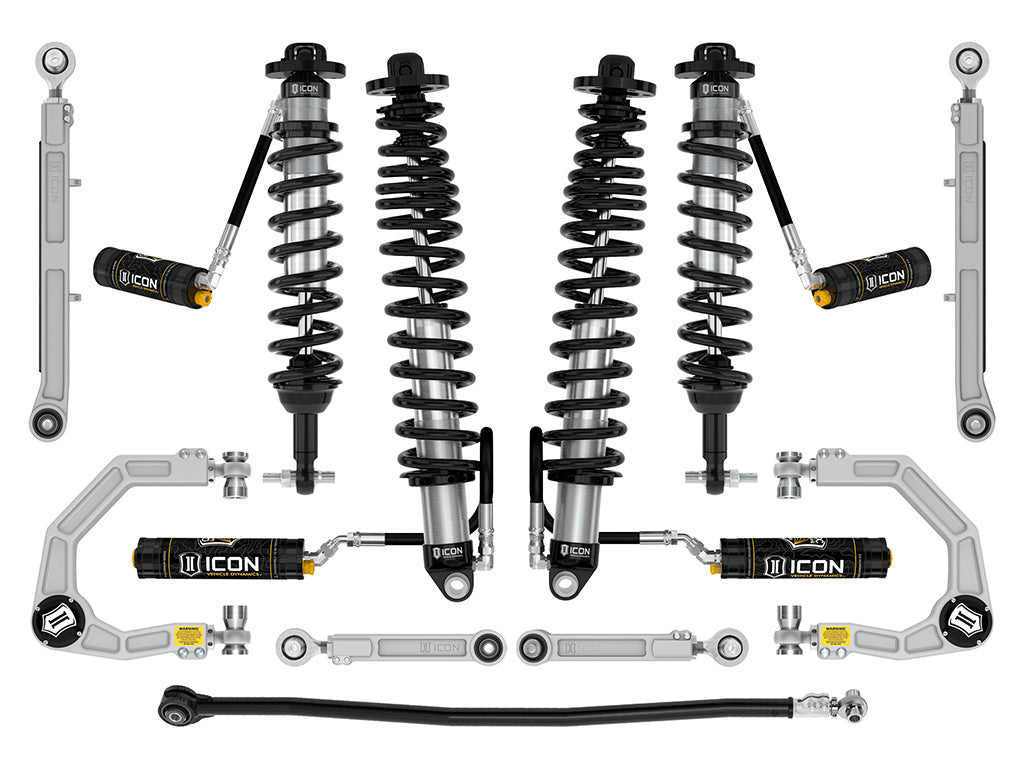

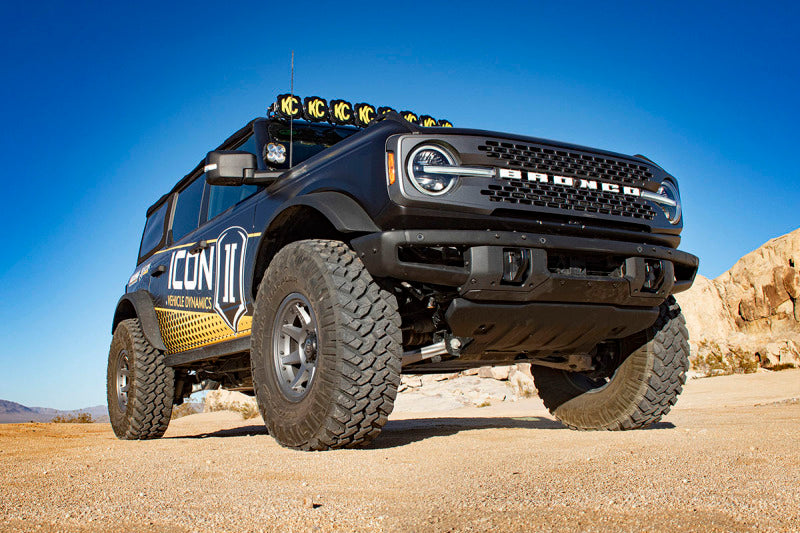

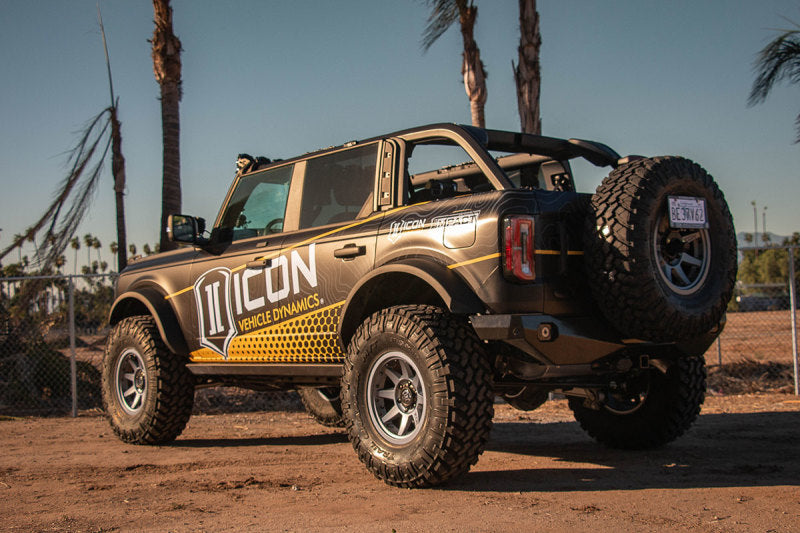

The ICON Vehicle Dynamics Stage 7 Suspension System for the 2021-2023 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks with CDCV to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4” of front lift and 2-3” of rear lift over stock 4-door Broncos without the Sasquatch Package. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain. The included CDC Valves control fluid flow under compression, allowing you to achieve the perfect shock tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.
ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

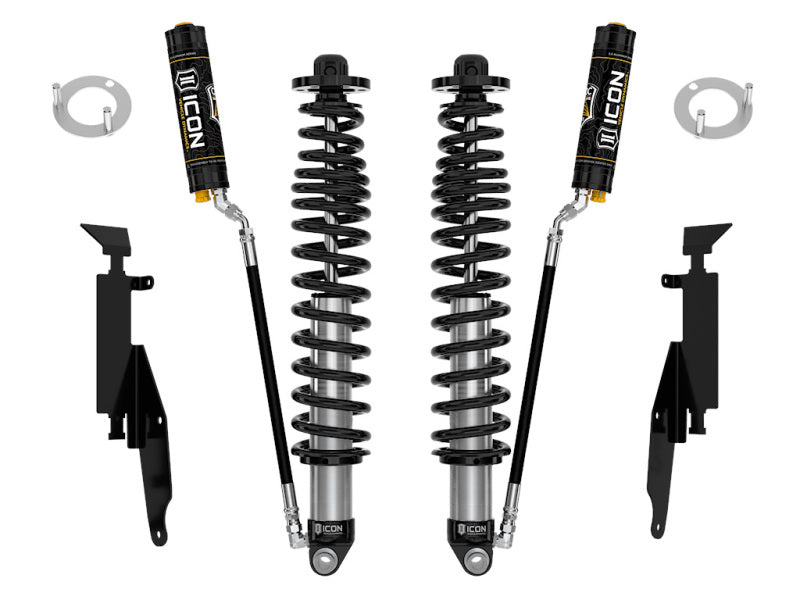

TECH NOTE: Triple rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier equipped Broncos, consider part number K40007X.

• Adjustable coilovers yield up to 3-4" of front lift height and 2-3” of rear lift height over stock 4-door Broncos without the Sasquatch package

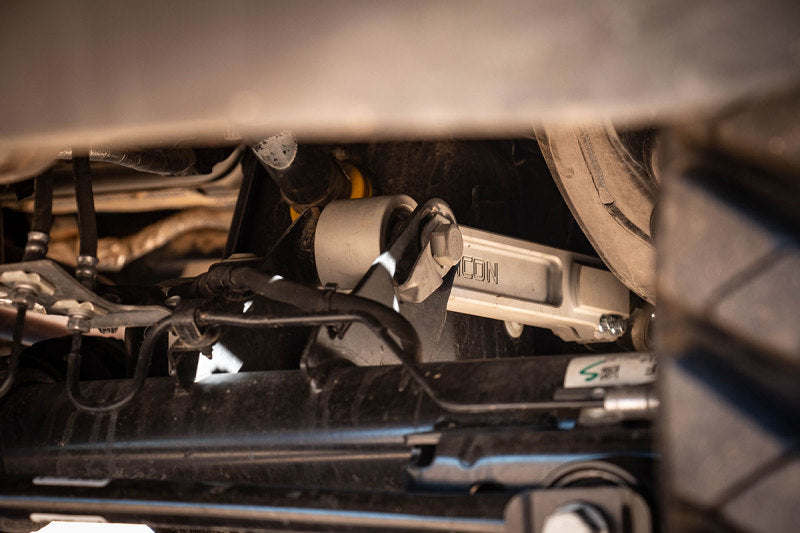

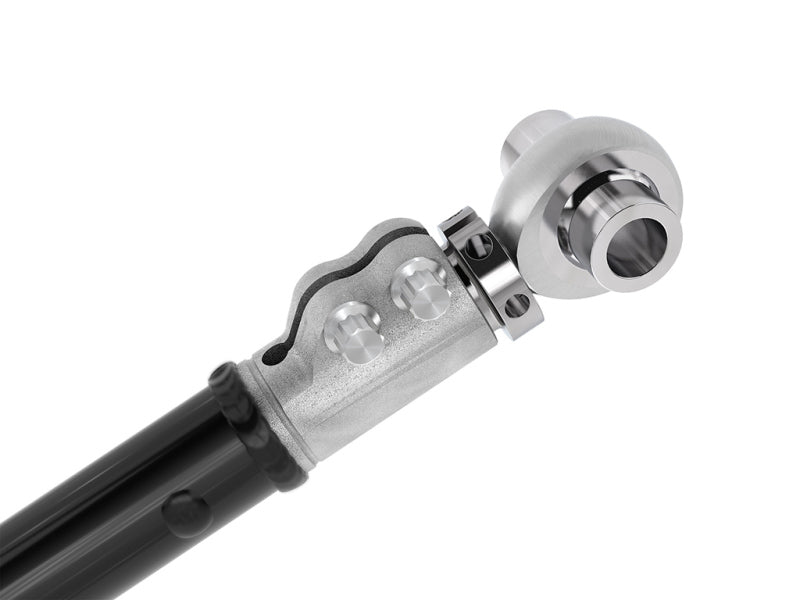

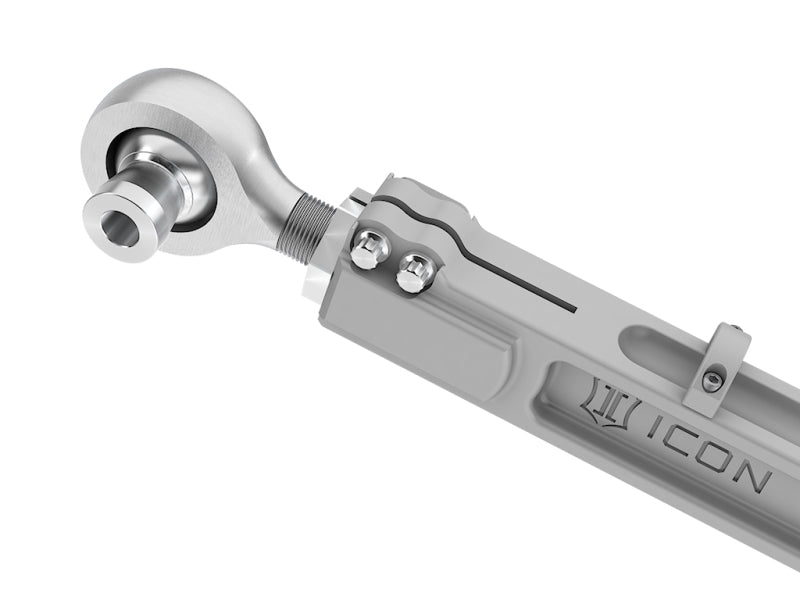

• Adjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment

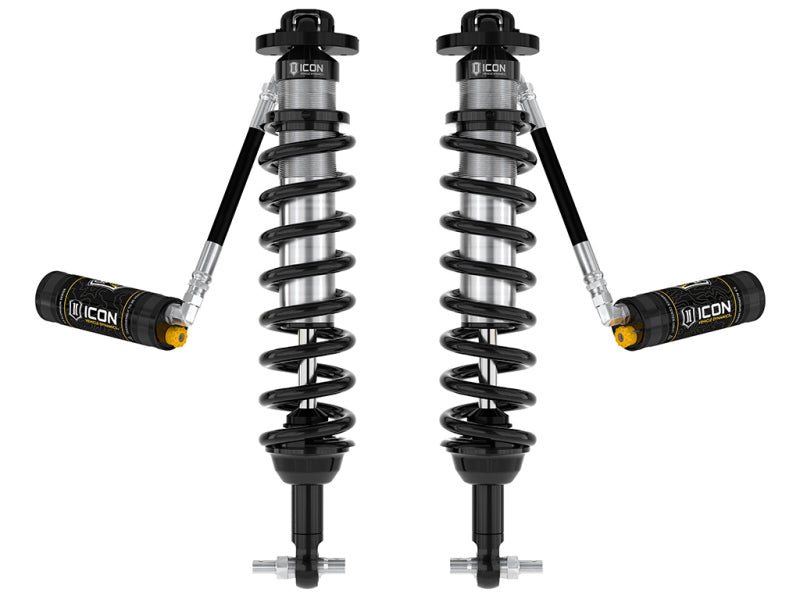

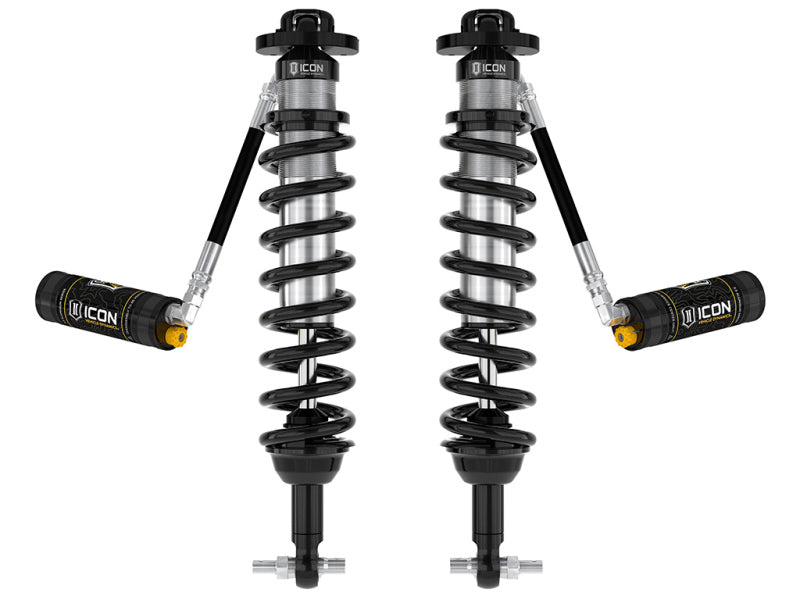

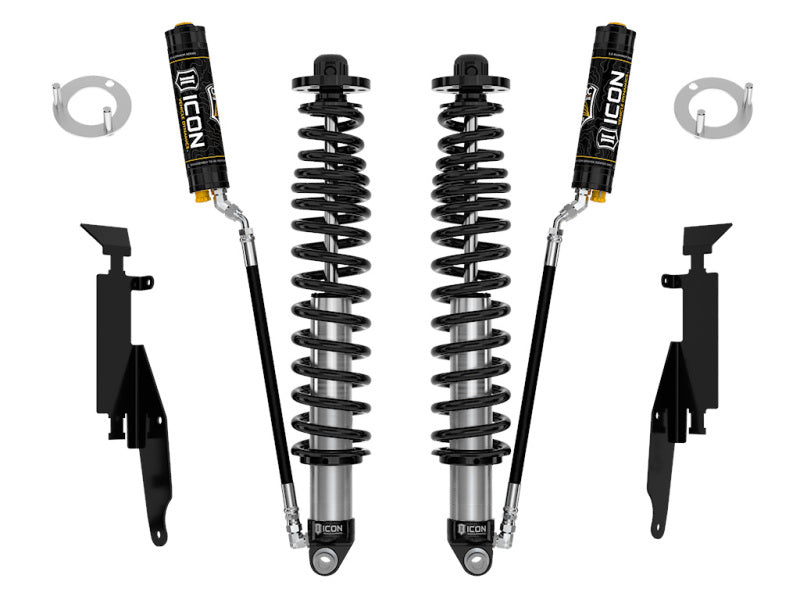

• Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use

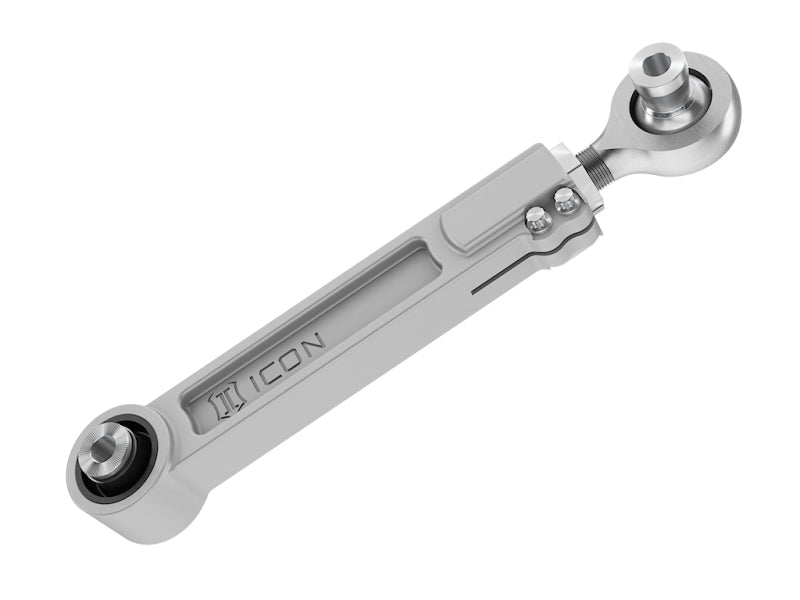

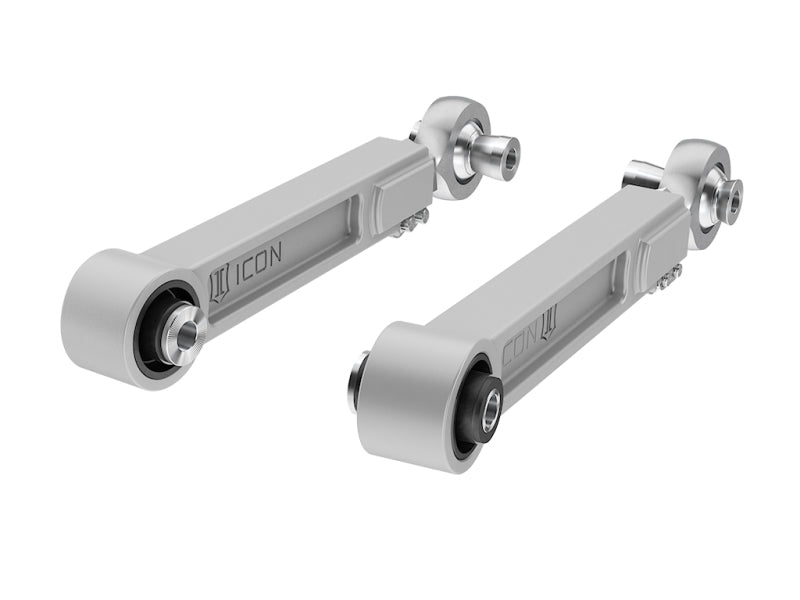

• Adjustable billet rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind

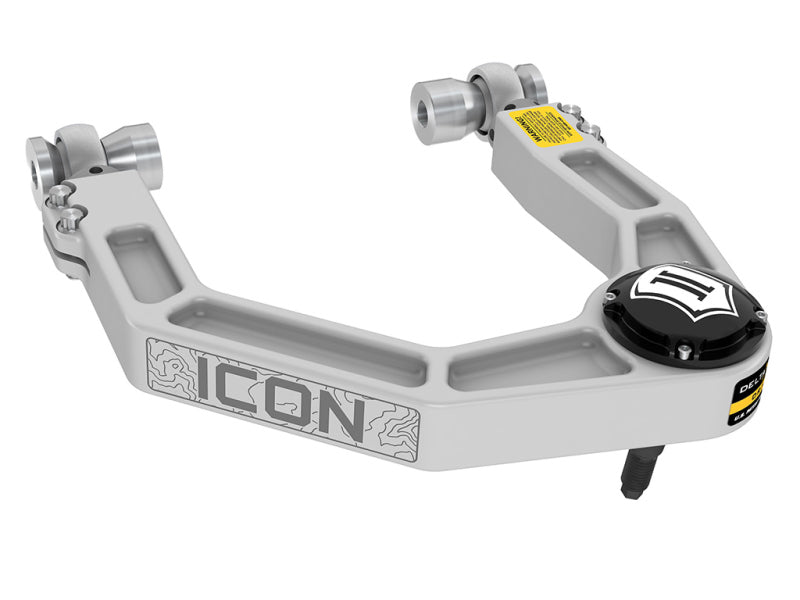

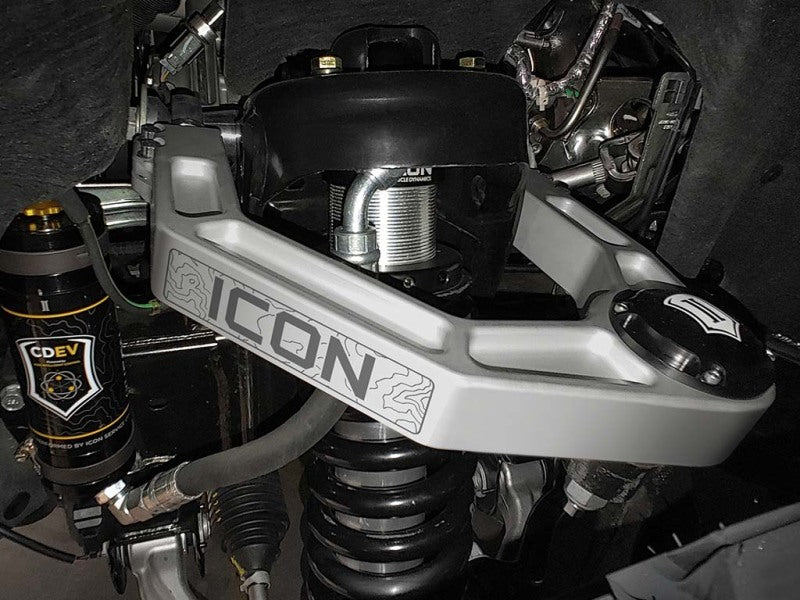

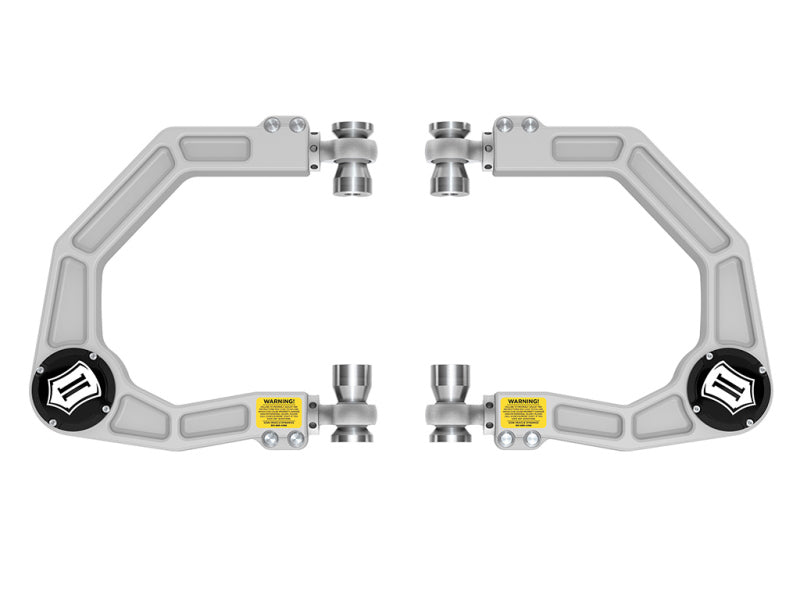

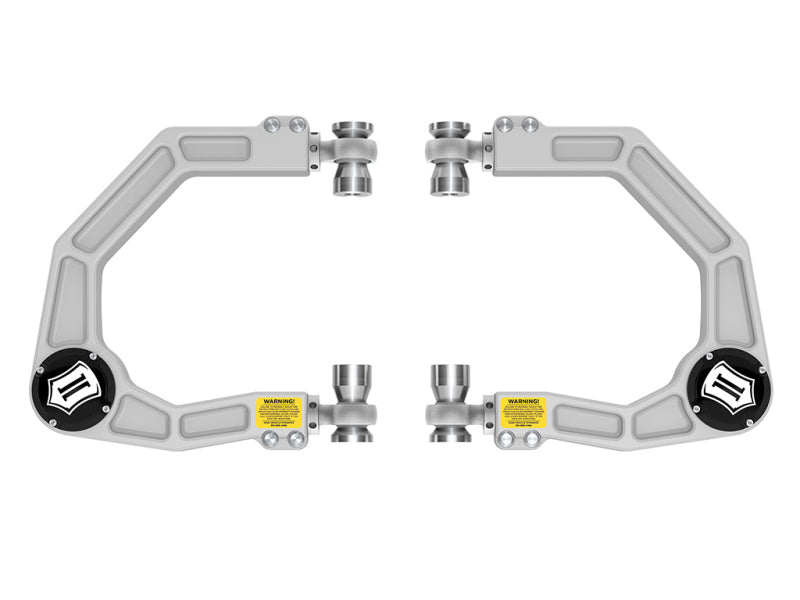

• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability


• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.


• Coilovers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard

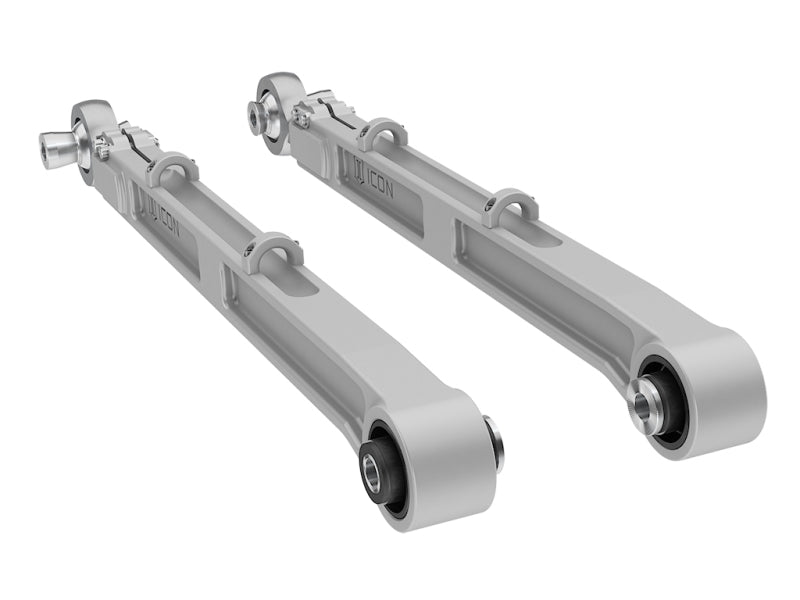

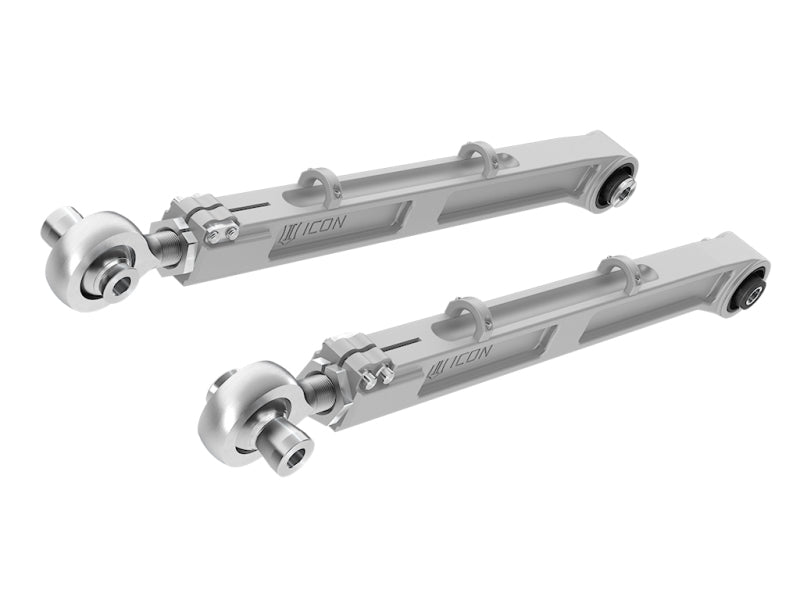

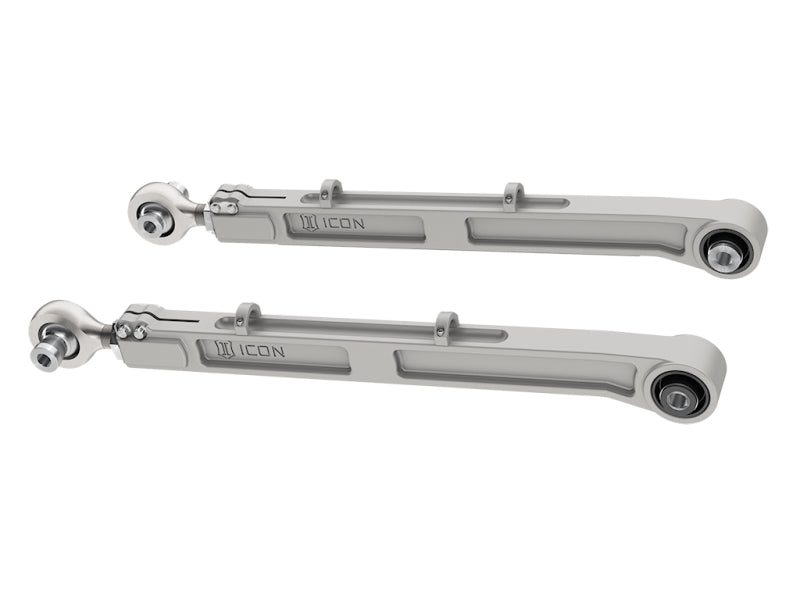

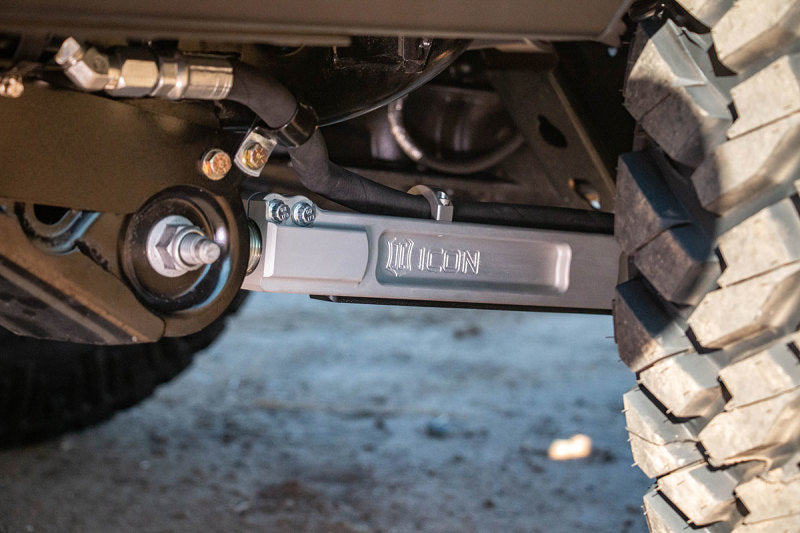

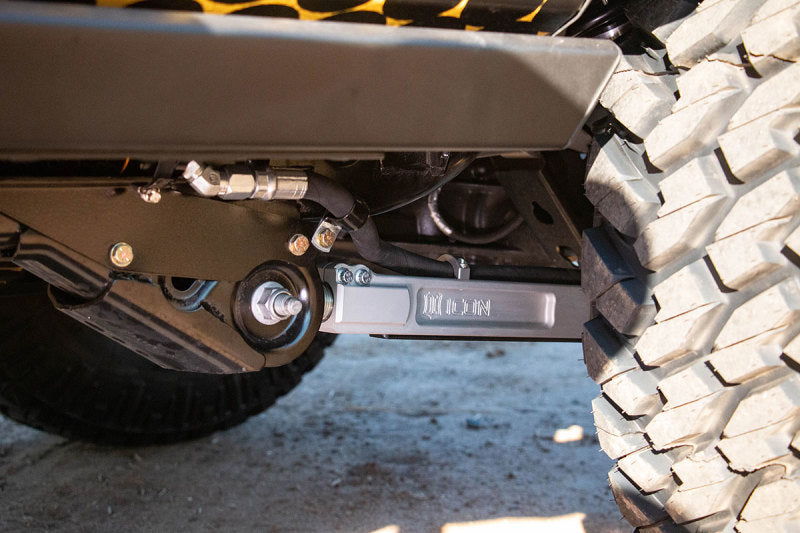

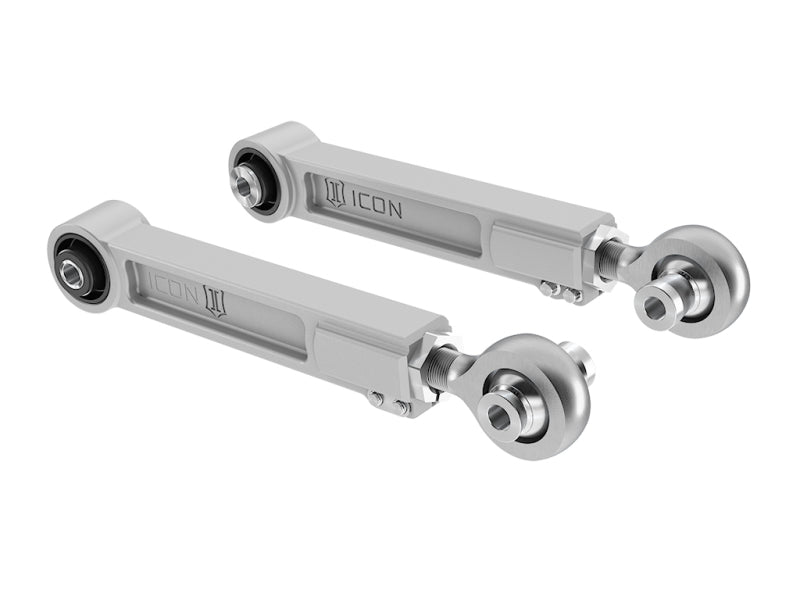

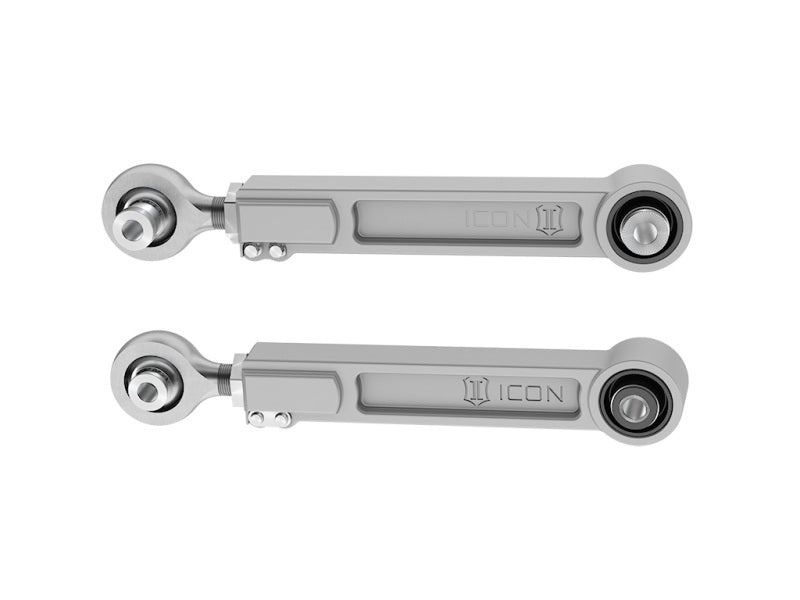

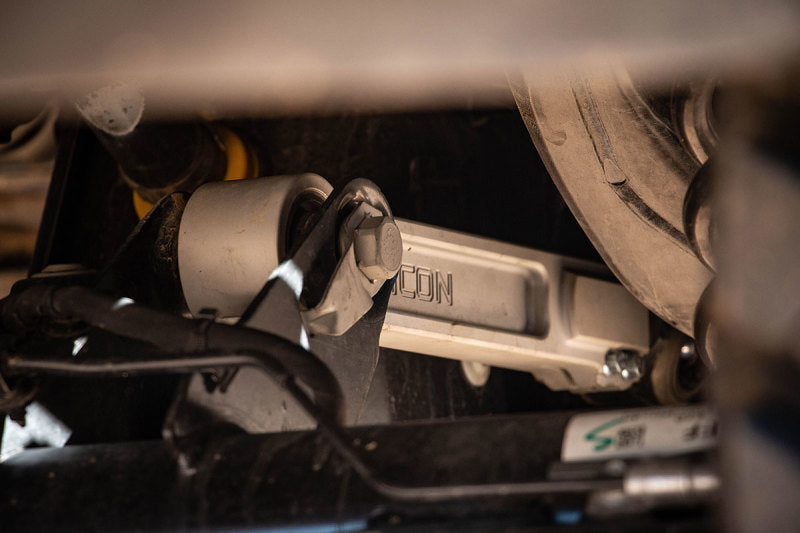

• Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment


• Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts


• 100% Bolt-on system - no drilling, cutting, or welding necessary for install


• ICON engineered coil springs featuring a unique triple rate rear coil design


• PTFE lined spherical bearings and application specific mounting hardware


• Up to 11.5" front / 14” rear wheel travel with 35” tire fitment


• Improved suspension performance and ride quality over stock


• 6061 Aircraft grade aluminum CNC machined components


• High strength alloy CNC machined lower bar pins
