Kit includes

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5” coilover shocks featuring extended travel & remote reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 96-04 Toyota Tacoma 4WD/PreRunner Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.
APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation

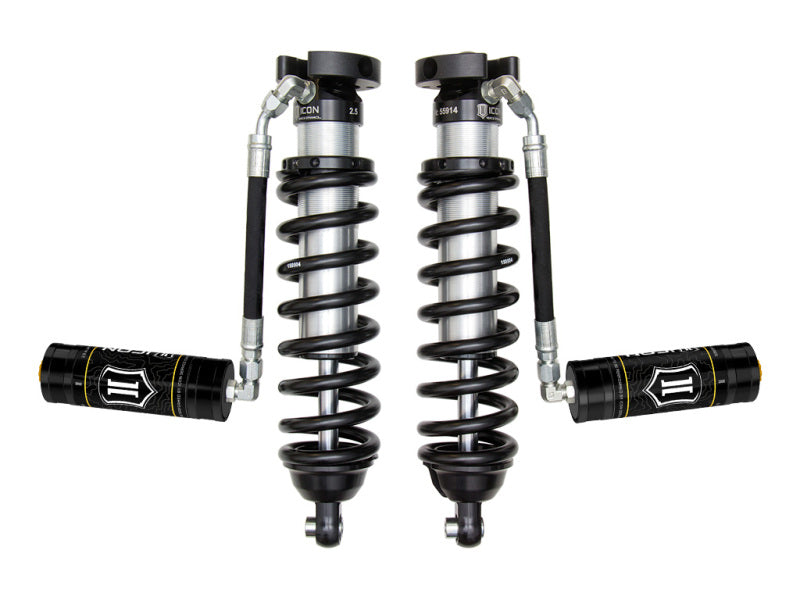

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

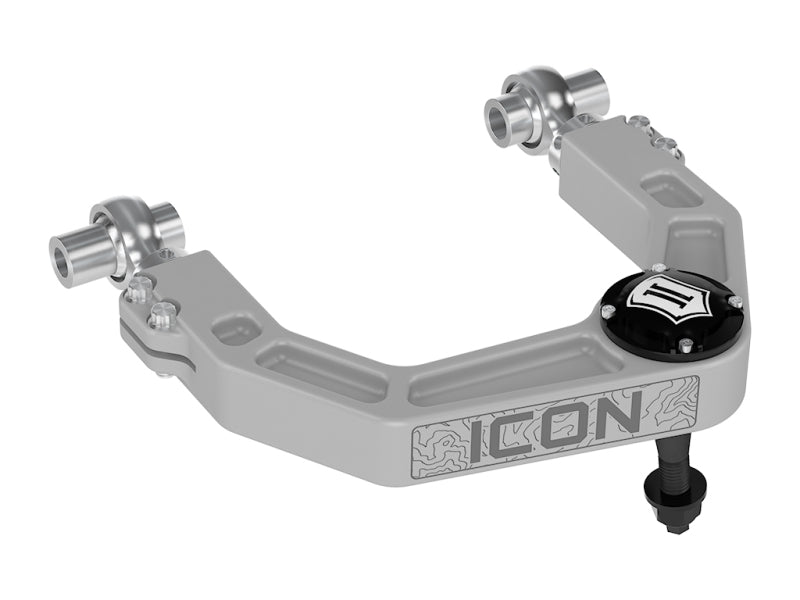

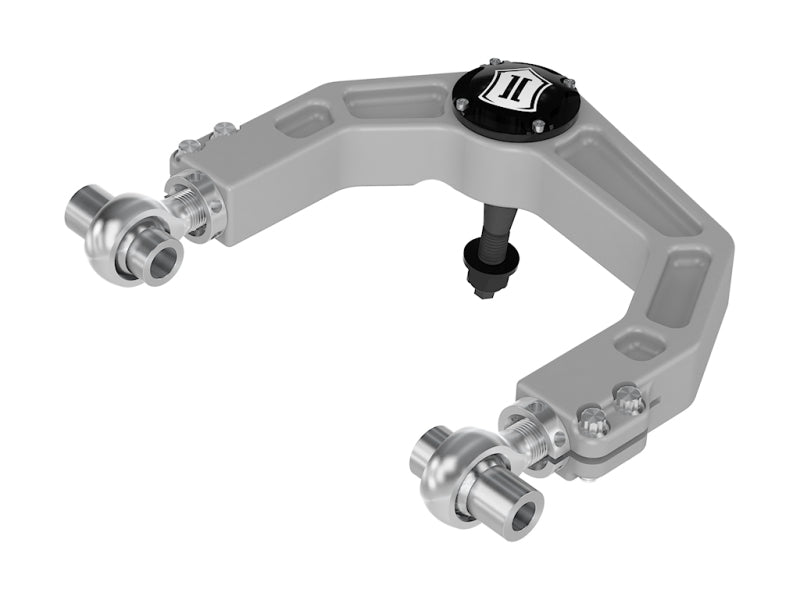

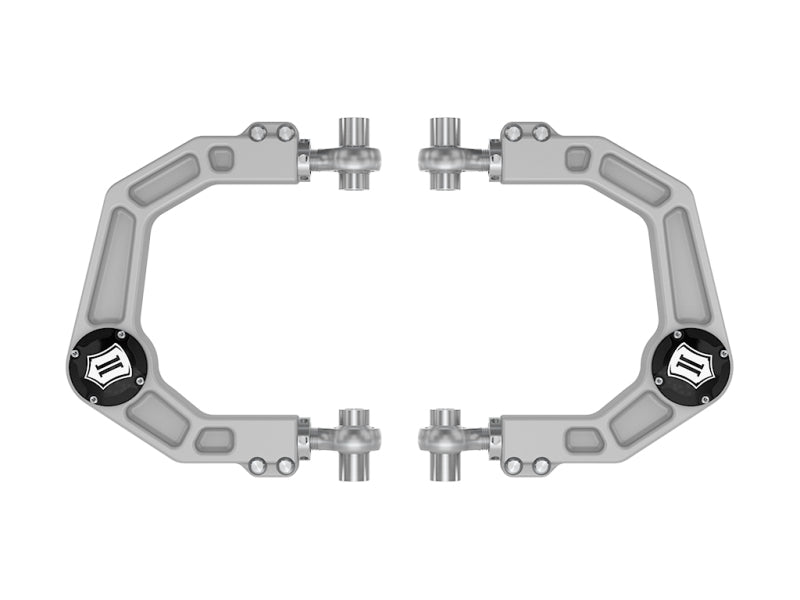

• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability


• Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift


• Vehicle specific tuned front and rear shocks for superior shock damping and control


• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts


• FK Rod End bearings for extended longevity and minimal deflection


• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts


• Adjustable coilovers provide up to 3.5" of front lift height


• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint


• Extended Travel coilovers offer maximum wheel travel


• 6061 aircraft grade aluminum CNC machined components


• Increased wheel travel and ride quality over stock
