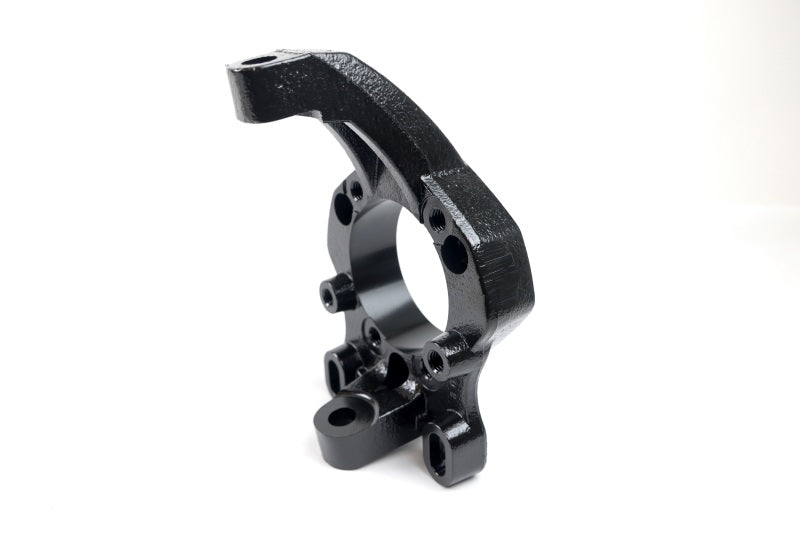

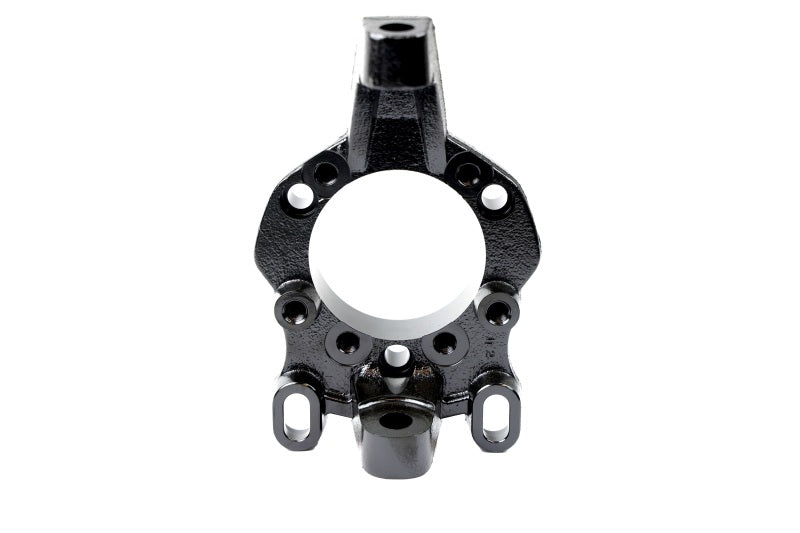

The Ridetech AFX Hub Spindles add the performance and simplicity of late model Corvette hubs and brakes to your muscle car!
Features:
Lowers vehicle 2?.
1.75? taller, improves negative camber gain and roll center.
Uses C5/C6/C7 Corvette hubs for maximum strength, consistent braking and reduced maintenance.
Compatible with C5/C6 Corvette brake systems, OE and Aftermarket (caliper brackets sold separately).
Stock track width.

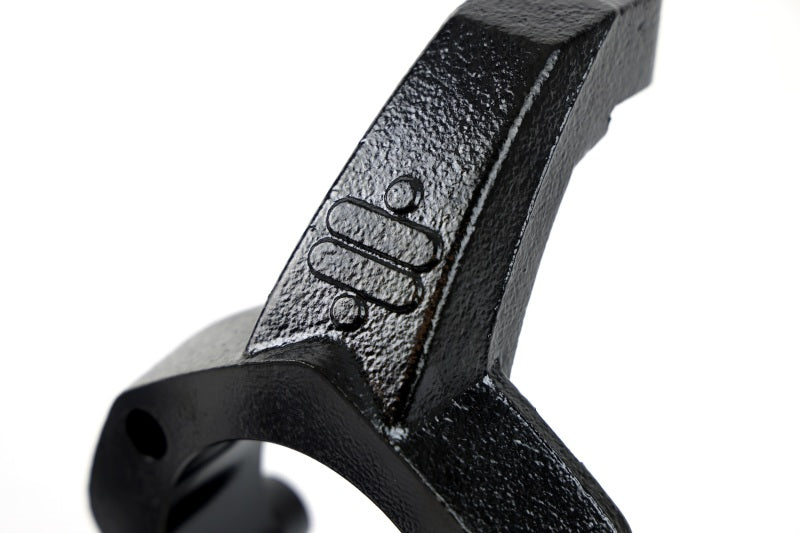

Durable Black E-Coat finish.
100% manufactured in the USA!
Fitment:
64-72 A-Body (Chevelle, Skylark, Cutlass, etc.)
67-69 F-Body (Camaro and Firebird)
68-74 X-Body (Nova, Acadian, etc)
62-67 X-Body (Nova, Chevy II with Ridetech TruTurn system)
63-82 Corvette (using Ridetech TruTurn system)
Hub and Brake Compatibility:
Hubs – 1997-2013 Corvette (C5/C6) or 2014-2019 Corvette (C7). C7 hubs are preferred, they are stronger and more cost effective as they don’t have a wheel speed sensor (Moog 513378).
Brakes – Any 1997-2013 Corvette (C5/C6) will fit (OE replacement or aftermarket). Ridetech caliper brackets are required. (Part # 11009546)

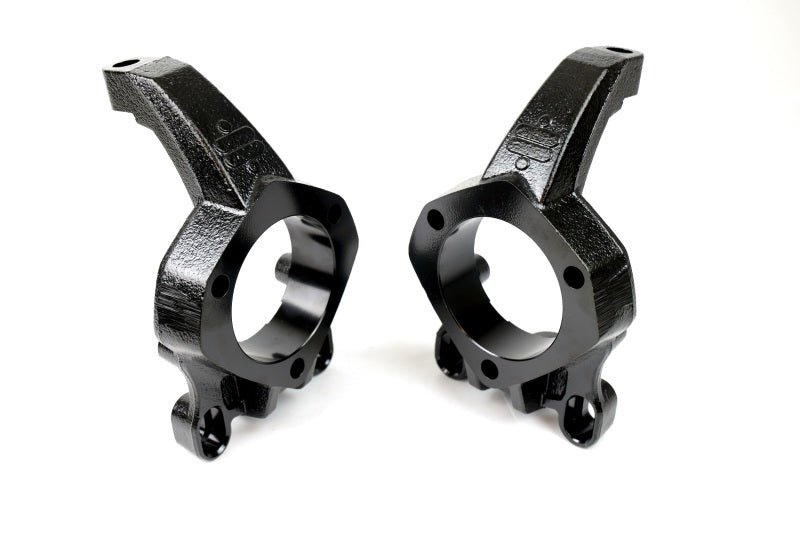

AFX hub spindle, 2" drop and 1.75" taller. Uses C7 Corvette hubs and C5/C6 brakes. Includes a pair of spindles, e-coated black and hardware. Caliper brackets and hubs sold separately.
Various
| Years | Make | Model | Trim |
|---|---|---|---|
| 1973–1974 | Buick | Apollo | Base |
| 1965–1967 | Buick | Gran Sport | Base |
| 1970–1972 | Buick | GS | Base |
| 1968–1969 | Buick | GS 350 | Base |
| 1968–1969 | Buick | GS 400 | Base |
| 1970–1972 | Buick | GS 455 | Base |
| 1970 | Buick | GS 455 | GSX |
| 1970, 1972 | Buick | Skylark | 350 |
| 1964–1972 | Buick | Skylark | Base |
| 1968–1972 | Buick | Skylark | Custom |
| 1964–1969 | Buick | Special | Base |
| 1964–1967 | Buick | Special | Deluxe |
| 1964–1972 | Buick | Sportwagon | Base |
| 1966, 1968–1969 | Buick | Sportwagon | Custom |
| 1967–1969 | Chevrolet | Camaro | |
| 1967–1969 | Chevrolet | Camaro | Base |
| 1967–1969 | Chevrolet | Camaro | RS |
| 1967–1969 | Chevrolet | Camaro | SS |
| 1967–1968 | Chevrolet | Chevelle | 300 |
| 1967–1969 | Chevrolet | Chevelle | 300 Deluxe |
| 1964–1968, 1970–1972 | Chevrolet | Chevelle | Base |
| 1967–1972 | Chevrolet | Chevelle | Concours |
| 1969–1972 | Chevrolet | Chevelle | Concours Estate |
| 1965–1967 | Chevrolet | Chevelle | Deluxe |
| 1969–1972 | Chevrolet | Chevelle | Greenbrier |
| 1968–1972 | Chevrolet | Chevelle | Malibu |
| 1968–1972 | Chevrolet | Chevelle | Nomad |
| 1964–1972 | Chevrolet | Chevelle | SS |
| 1968 | Chevrolet | Chevy II | Nova |
| 1964–1972 | Chevrolet | EL Camino | Base |
| 1968–1972 | Chevrolet | EL Camino | Custom |
| 1968–1972 | Chevrolet | EL Camino | SS |
| 1964–1967 | Chevrolet | Malibu | Base |
| 1970–1972 | Chevrolet | Monte Carlo | Base |
| 1969–1974 | Chevrolet | Nova | Base |
| 1973–1974 | Chevrolet | Nova | Custom |
| 1971–1972 | GMC | Sprint | Base |
| 1972 | GMC | Sprint | Custom |
| 1964–1971 | Oldsmobile | 442 | Base |
| 1964–1972 | Oldsmobile | Cutlass | Base |
| 1972 | Oldsmobile | Cutlass | Cruiser |
| 1964–1967 | Oldsmobile | Cutlass | Holiday |
| 1968, 1971–1972 | Oldsmobile | Cutlass | S |
| 1967 | Oldsmobile | Cutlass | Turnpike Cruiser |
| 1967–1972 | Oldsmobile | Cutlass Supreme | Base |
| 1964–1972 | Oldsmobile | F85 | Base |
| 1964–1966 | Oldsmobile | F85 | Deluxe |
| 1966 | Oldsmobile | F85 | Holiday |
| 1973–1974 | Oldsmobile | Omega | Base |
| 1964–1972 | Oldsmobile | Vista Cruiser | Base |
| 1964–1967 | Oldsmobile | Vista Cruiser | Custom |
| 1967 | Pontiac | Firebird | 326 |
| 1968–1969 | Pontiac | Firebird | 350 |
| 1969 | Pontiac | Firebird | 350 HO |
| 1967–1969 | Pontiac | Firebird | 400 |
| 1967–1969 | Pontiac | Firebird | Base |
| 1967–1968 | Pontiac | Firebird | HO |
| 1967–1969 | Pontiac | Firebird | Sprint |
| 1969 | Pontiac | Firebird | Trans AM |
| 1969–1972 | Pontiac | Grand Prix | Base |
| 1964–1972 | Pontiac | GTO | Base |
| 1970–1971 | Pontiac | GTO | THE Judge |
| 1971 | Pontiac | Lemans | |
| 1964–1972 | Pontiac | Lemans | Base |
| 1972 | Pontiac | Lemans | Luxury |
| 1969–1970 | Pontiac | Lemans | Safari |
| 1970–1972 | Pontiac | Lemans | Sport |
| 1964–1970 | Pontiac | Tempest | Base |
| 1964–1969 | Pontiac | Tempest | Custom |
| 1970 | Pontiac | Tempest | GT |
| 1964–1969 | Pontiac | Tempest | Safari |
| 1971–1974 | Pontiac | Ventura | Base |
| 1973–1974 | Pontiac | Ventura | Custom |
| 1974 | Pontiac | Ventura | GTO |
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Carb Acknowledgement Required: false |
| Regular Stock: t |
| Units Per Sku: 1 |
No fitment data available for this product.
