Kit includes

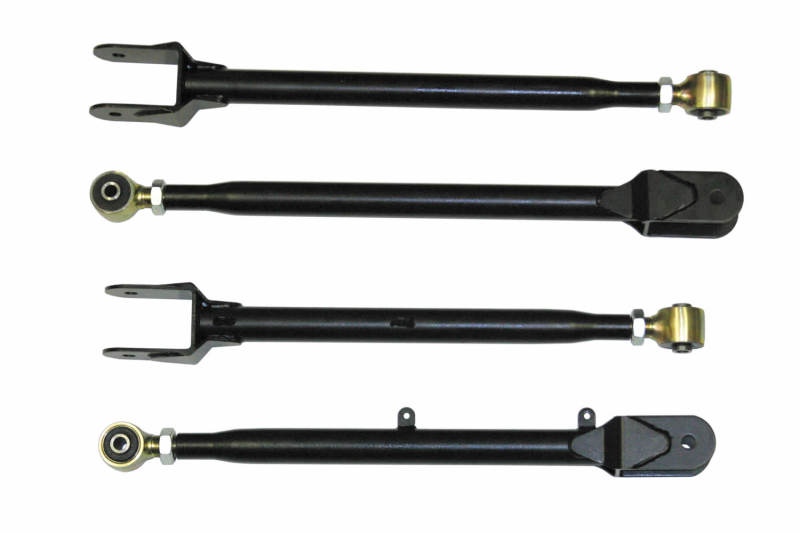

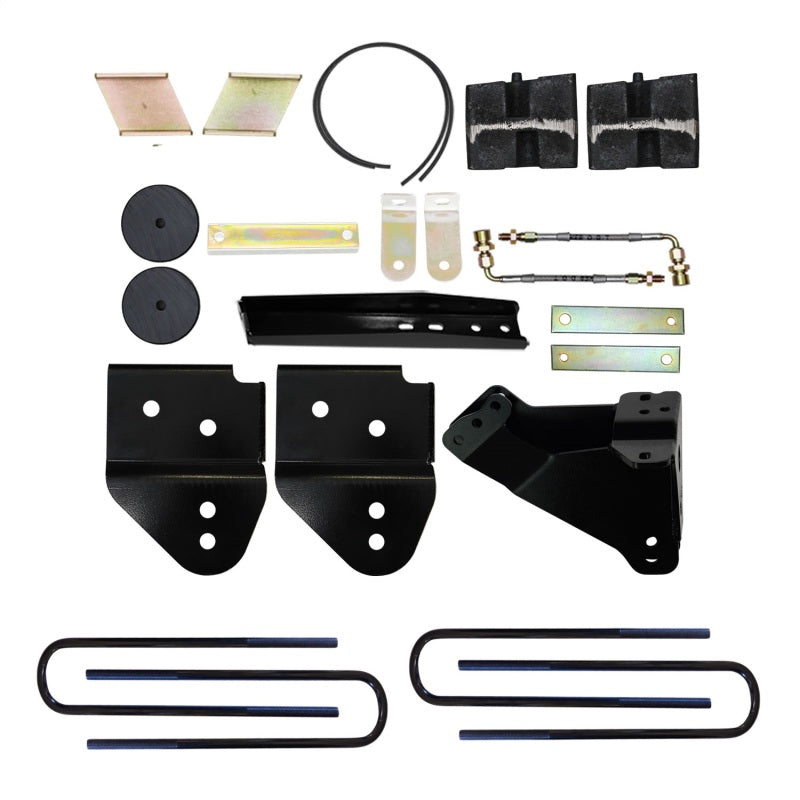

Skyjacker re-engineered the Super Dutys suspension via an impressive 4-Link Conversion. Replace your OEM radius arms with integrated radius arm drop brackets plus upper and lower adjustable control arms. Formed from 2-inch OD x 0.250 wall DOM tubing, both pairs of control arms are adjustable Flex Links. The adjustability allows proper caster settings to improve handling. Flex Links have a forked clevis end at the lower axle mount. The upper bracket mount has 1-1/4 in. forged rod end with Rubber Encased bushing. Skyjacker's legendary Softride(R) technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the coil spring. The sway bar lowering brackets realign the front sway bar working angle to achieve maximum sway control. Drop spacers reposition the front bump stops. Front brake line extension brackets correctly reposition the brake lines. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection. A 4.5-inch rear block and U-bolt kit delivers a more level stance. E-brake relocation brackets, bump stop spacers, rear braided stainless steel brake line extensions and rear exhaust hanger brackets are included. Shocks are a key link in-between the chassis and your suspension. Front and rear damper capacity enhanced with ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks. ADX 2.0 has a race-inspired full-displaced valving system. Nitrogen charged with Internal Floating Piston Technology = Quickest Shock Reaction Time Ever. Together this complete kit maintains the factory geometry angles, alignment specifications and structural strength. Reap the benefits: On-Road Refinement and Off-Road Readiness.

6in.KT;CLII;11F250 GAS;4ADX

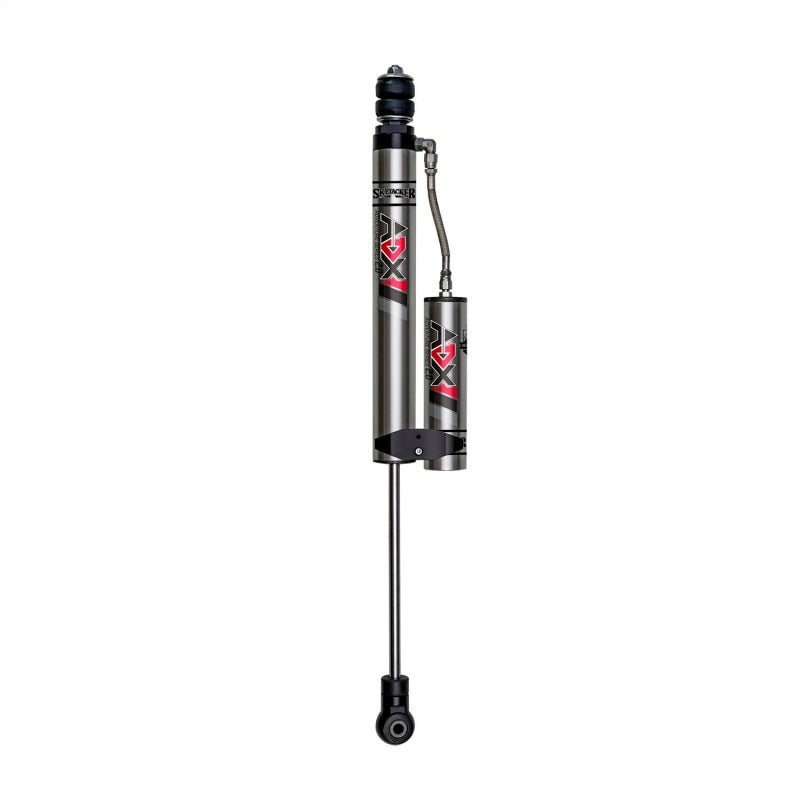

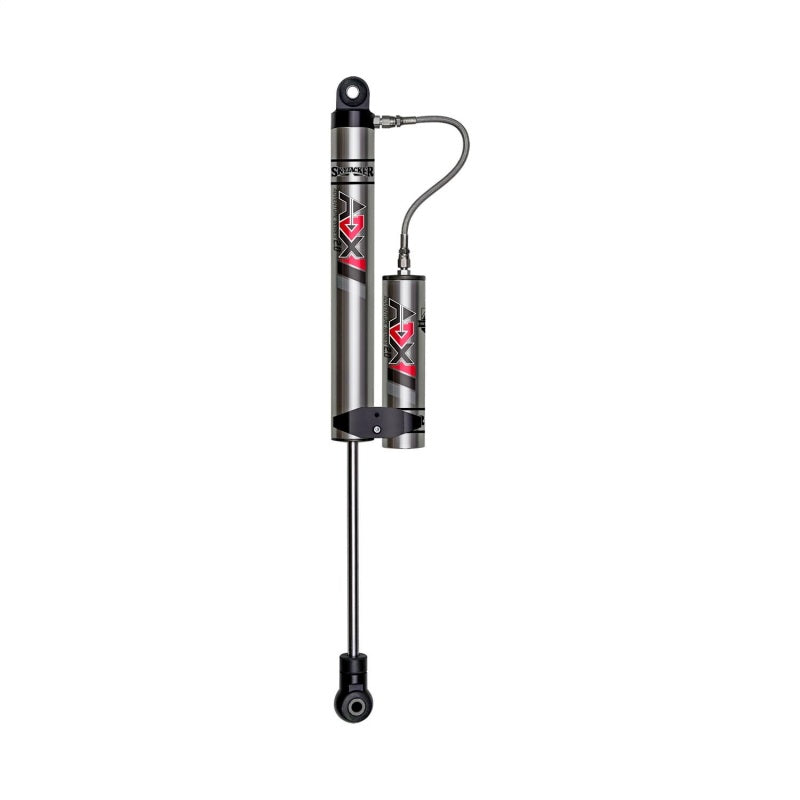

• ADX 2.0 Nitrogen Charged\Internal Floating Piston Technology
• Increase Travel With Impressive 4-link Flex Ride Enhancement
• 36s Improve Your Off-Road Stance and Gain Ground Clearance
• Ultra Heavy-duty Track Bar Bracket Keeps The Axle Centered

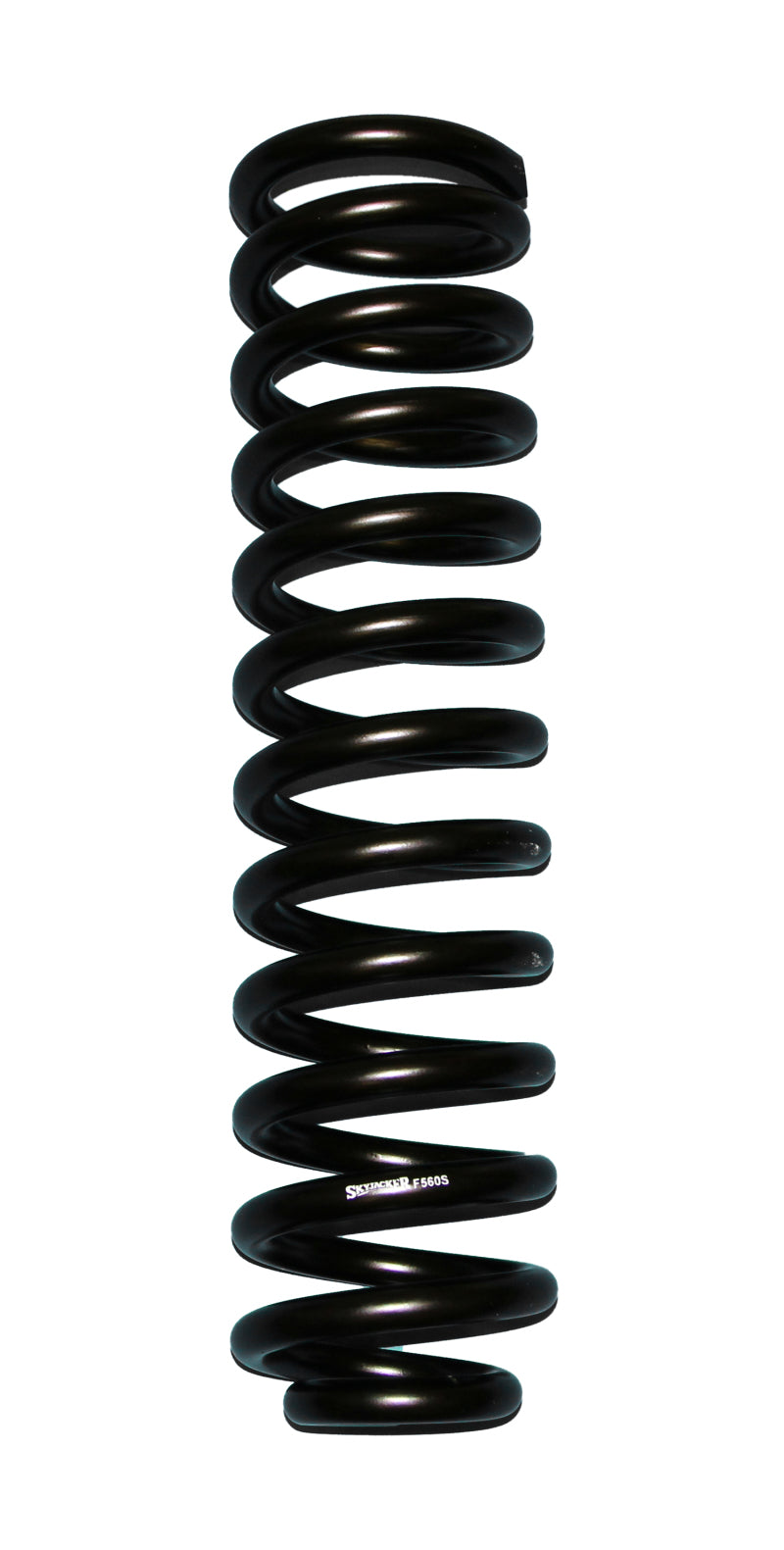

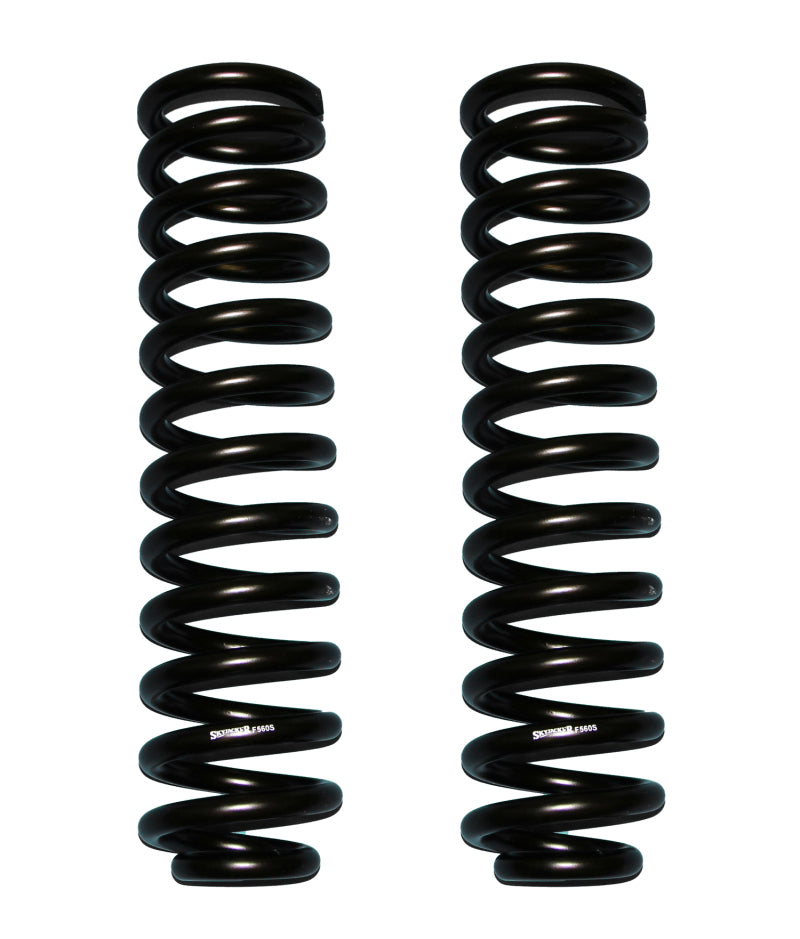

• Skyjacker Softride Technology Enhanced Spring Performance
• ADX 2.0 Has A Race-Inspired Full-Displaced Valving System
• Bump Stop Spacers Keep Suspension Travel Safely In Check
• Radius Arm Mount Drop Brackets Properly Corrects Caster
• Reap The Benefits/On-Road Refinement/Off-Road Readiness
• Yields More Lift In The Front For A More Level Stance
• IFP Technology Prevents Lag/Decline Or Fade/Failure
• ADX 2.0 Has The Quickest Shock Reaction Time Ever

Vehicle Fitment
