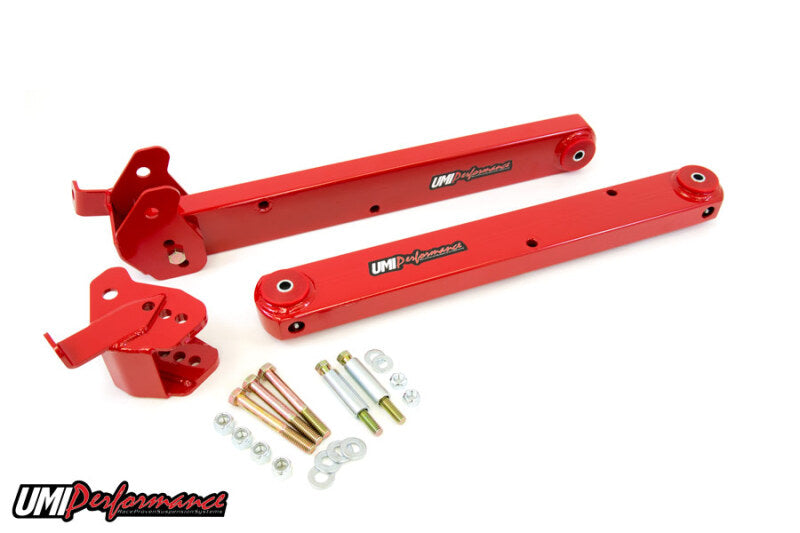

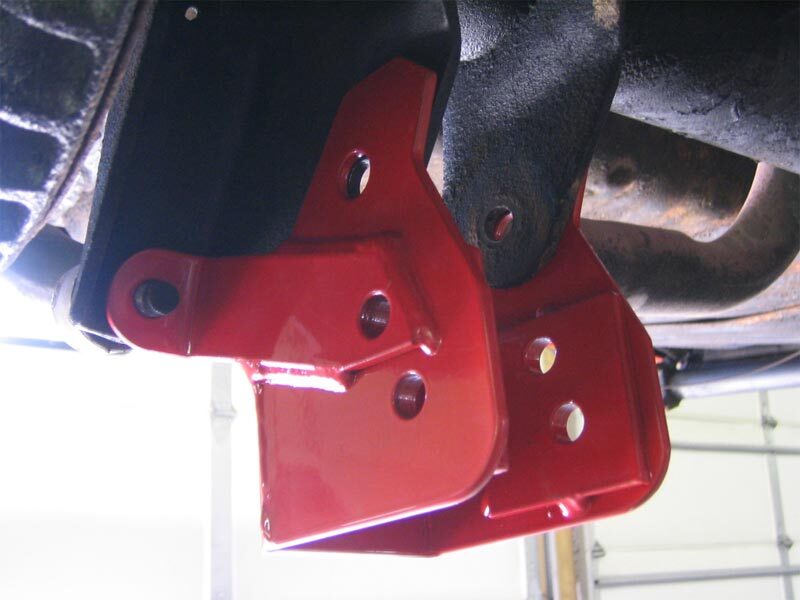

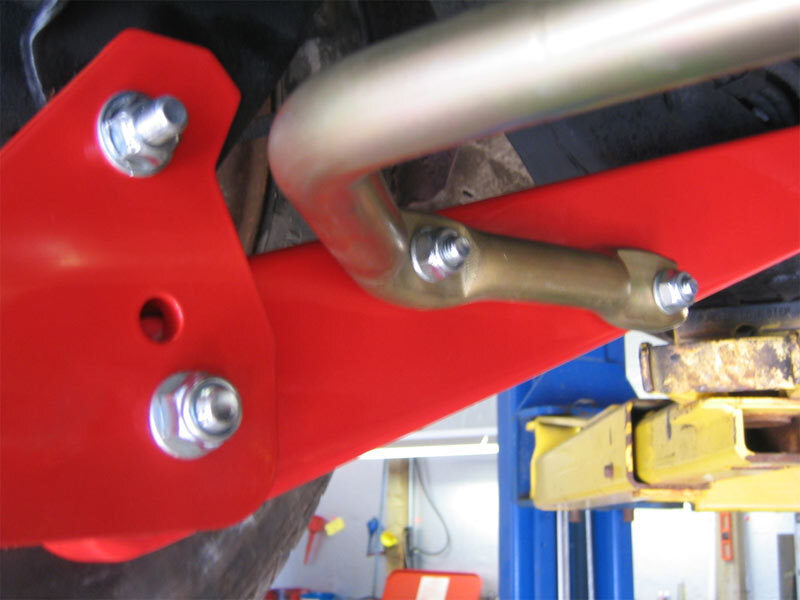

The bolt on lift bar set up from UMI requires no drilling, welding or cutting making it a true bolt on. The UMI rear lift bars replace the factory rear control arms adding traction while not changing vehicle ride height. Lift bars work with axle torque to load the chassis of the car, forcing the rear wheels downward pushing the tires into the ground resulting in harder launches and improved 60-foot times. The UMI lift bars are designed to improve traction and reduce unwanted wheel hop. Lift bars are constructed of boxed mild steel tubing, 1/8" thick wall and 3/16" thick mounting brackets. Lift bars feature greaseable polyurethane bushings which are designed to reduce bushing deflection while being streetable. Lift bar kit features the correct provisions for adding a stock or aftermarket sway bar, the sway bar holes are placed in the correct pattern to maintain the sway bar level with the rear end while the lift bar is in the lowest hole. Sway bar holes are reinforced with a 1/8" wall thickness steel sleeve TIG welded into place. The rear mounting brackets feature three settings that allow the lift bar to be lowered 2", 2-3/4” or 3-1/4”. Lift bar set up is designed to correct lost geometry and correct instant center on a lowered vehicle. Add a set of UMI adjustable upper control arms for the maximal rear suspension set-up and performance.

Fitment:
1964 Buick Skylark
1964 Chevrolet Chevelle
1964 Oldsmobile Cutlass
1964 Pontiac GTO
1965 Buick Skylark
1965 Chevrolet Chevelle
1965 Oldsmobile Cutlass
1965 Pontiac GTO
1966 Buick Skylark
1966 Chevrolet Chevelle
1966 Oldsmobile Cutlass
1966 Pontiac GTO
1967 Buick Skylark
1967 Chevrolet Chevelle
1967 Oldsmobile Cutlass
1967 Pontiac GTO
1968 Buick Skylark
1968 Chevrolet Chevelle
1968 Oldsmobile Cutlass
1968 Pontiac GTO
1969 Buick Skylark
1969 Chevrolet Chevelle
1969 Oldsmobile Cutlass
1969 Pontiac GTO
1970 Buick Skylark
1970 Chevrolet Chevelle
1970 Oldsmobile Cutlass
1970 Pontiac GTO
1971 Buick Skylark
1971 Chevrolet Chevelle
1971 Oldsmobile Cutlass
1971 Pontiac GTO
1972 Buick Skylark
1972 Chevrolet Chevelle
1972 Oldsmobile Cutlass
1972 Pontiac GTO
