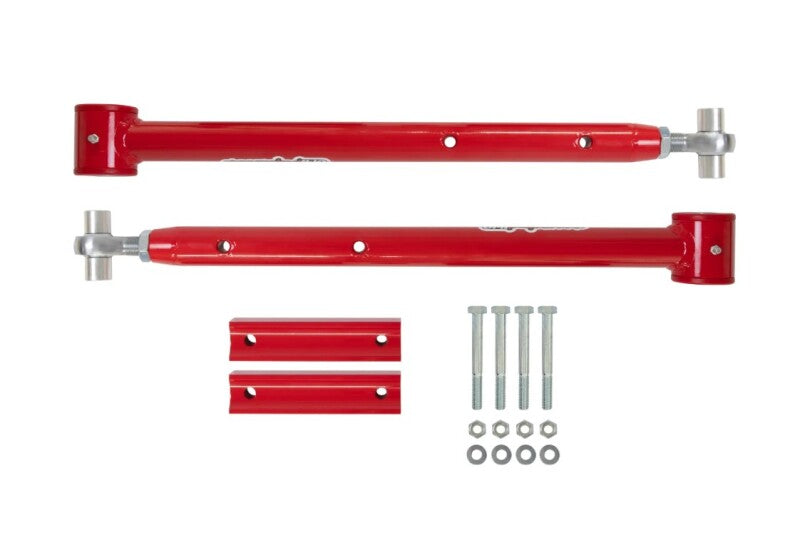

UMI Performance extended length control arms are designed to properly center the rear wheels in the wheel well of the Impala SS. These control arms are extended by 5/8” and feature additional adjustment capabilities to perfectly center the rear end. This adjustment allows users to lengthen or shorten the control arms by an additional ¼” beyond the initial 5/8". The control arms are constructed from 1.500” DOM tubing and fully TIG welded for maximum strength. They also come with provisions for adding either a stock or aftermarket sway bar. The sway bar holes are reinforced with a 0.120” thick steel sleeve, TIG welded and sanded in place. The sway bar connects to the control arms using a billet aluminum spacer that is contoured to match the shape of the round tubing, ensuring a proper attachment at the factory location. The control arms attach to the rear end with spherical bearing rod ends, promoting a bind-free operation for improved handling. This setup allows the suspension to articulate correctly while the polyurethane end bolts to the chassis, absorbing unwanted road noise.
UMI extended length control arms for Impala SS add 5/8” plus ¼” adjustability. DOM tubing, TIG welded, with reinforced sway bar provisions and spherical rod ends for bind-free suspension and improved handling.
- Control arms extended 5/8" with additional 1/4" adjustment for perfect centering
- Extended length control arms designed to center rear wheels in wheel well
- Built from 1.500" DOM tubing and fully TIG welded for strength

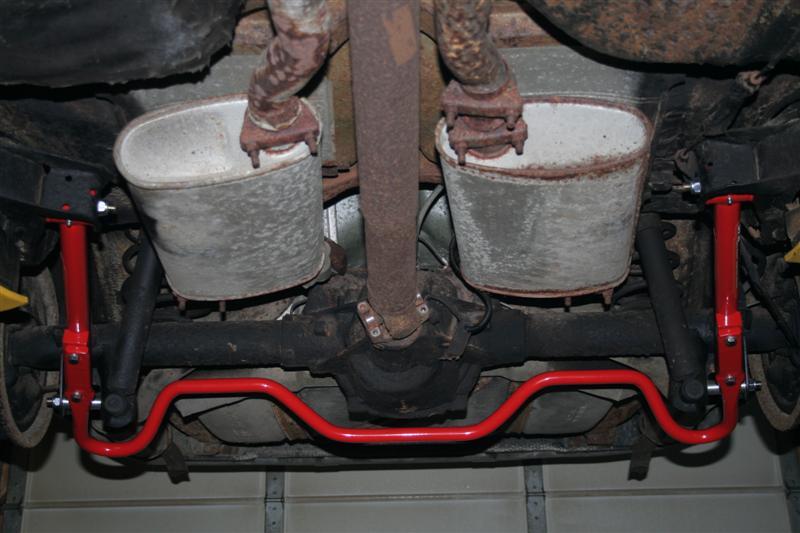

- Correct provisions for adding stock or aftermarket sway bar
- Compatible with UMI Performance weld-in relocation brackets
- Fully assembled with grease-able High Quality bushings
- Chrome moly Teflon lined spherical bearing rod ends
- Sway bar holes reinforced with 0.120" steel sleeve
- Spherical bearing rod ends for bind-free operation

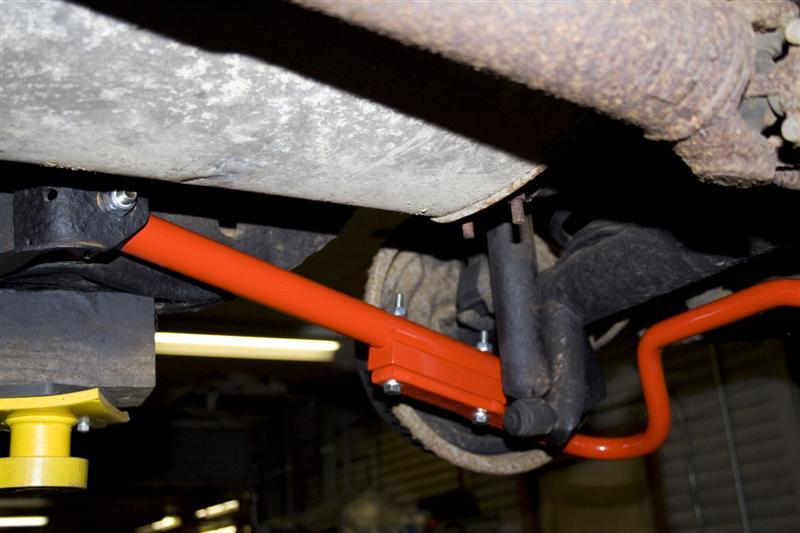

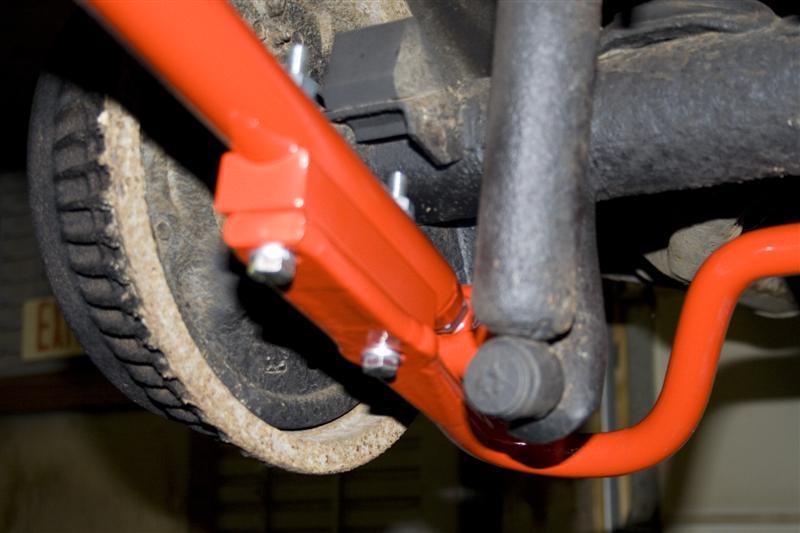

- Sway bar attaches with billet aluminum spacer
- Includes new 10.9 grade sway bar hardware
- Polyurethane end bolts absorb road noise
- Installs in 1-2 hours using OEM hardware
- CNC machined for exact tolerances
- Durable glossy powder coat finish
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Carb Acknowledgement Required: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Regular Stock: false |
| Units Per Sku: 1 |
