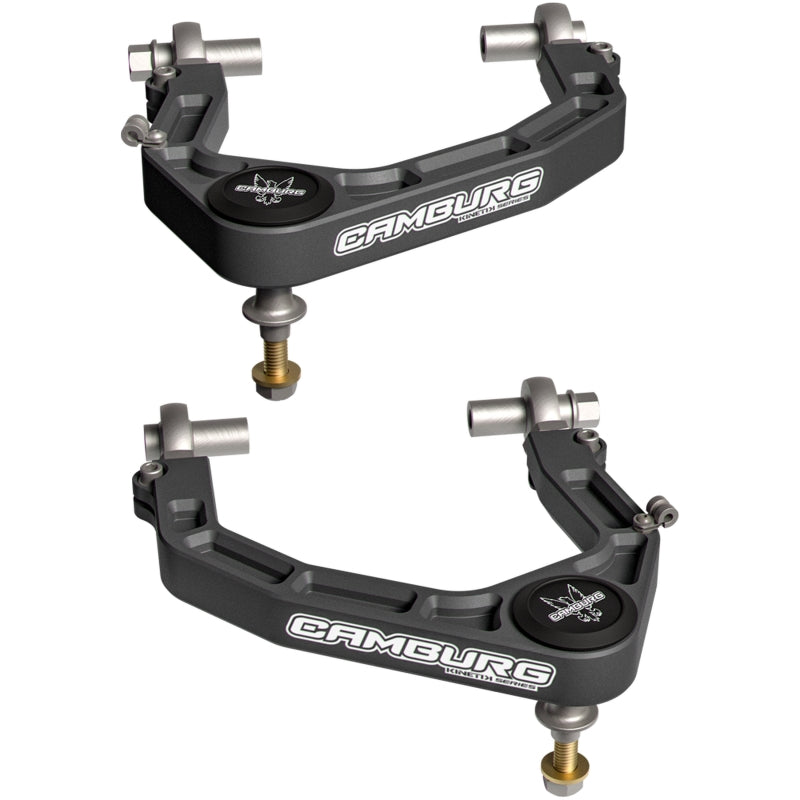

Our Camburg KINETIK Series billet upper control arms for the Ford Ranger Raptor allow for increased wheel travel and articulation out on the trail, corrected suspension geometry with increased caster for improved handling both on and off-road and are considerably higher quality and higher strength compared to the OEM parts for off-road use. These arms have undergone extensive CAD designing and machining to meet our high standards. They are CNC machined in-house from aerospace quality 6061 billet aluminum, Type II anodized and laser etched. We utilize a larger FK 1.25" uniball with a military grade PTFE internal liner for increased strength, longevity and higher misalignment, allowing for maximum wheel travel. The uniball is adapted to the spindle/knuckle using model specific spacers machined from heat-treated stainless steel, for a precision fit without the need for drilling or modifications. The 1.25" uniball allows for a larger and stronger 12-point bolt with a low-profile press-on uniball cap to resist the elements. Additional camber and caster adjustment is available with the use of larger and stronger FK 7/8" chromoly heim joints, which also eliminate flexing/deflection under hard use and heavy braking without binding. Step by step instructions with all the necessary hardware ensure a successful installation for your next off-road adventure.
Camburg 2024-2025 Ford Ranger Raptor Uniball Contol Arm Kit Gray
Given the multitude of factors such as wheel size, offset/backspacing, tire size, brand preferences, and suspension specifics, adjustments like trimming the plastic inner fenders or modifying the body mounts behind the front tires may be necessary to prevent tire rubbing.

• Eliminates weak factory ball-joints


• Increases usable wheel travel


• Corrects camber and caster

Vehicle Fitment
