The 2-Row 42mm core greatly not only increases the fluid capacity of the radiator, but also improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. More cooling rows also improve the overall efficiency of the radiator. More cooling tubes means more surface area for the coolant's heat to dissipate from.
CSF manufactures the most advanced and efficient radiator in the industry for your R33 Skyline. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.
- 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
- True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
- M16 x 1.5P temperature sensor port with pre-installed plug

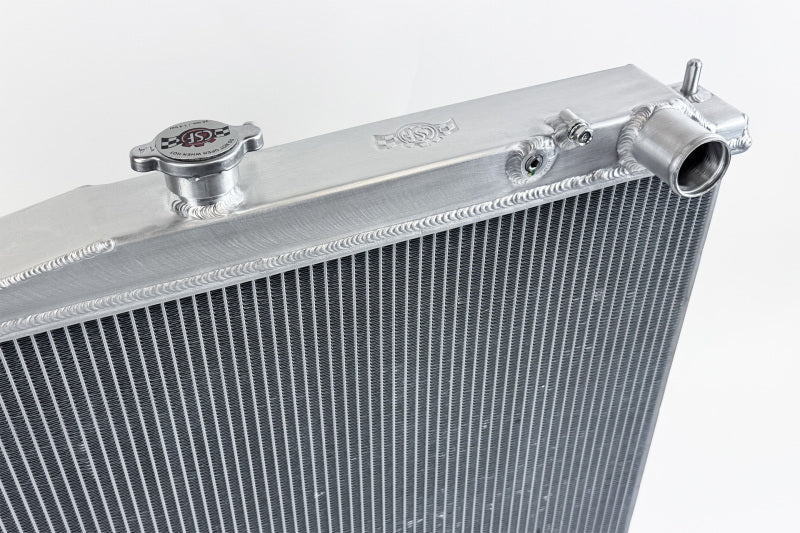

- 1.4 Bar High Pressure Radiator Cap with CSF embossed logo
- 75 Cooling Tubes with CSF's Exclusive B-Tube Technology
- CNC Machined Mounting Pins and OEM Style Inlet/Outlet
- 1/8th NPT Temp Sensor Port on Top End Tank
- 100% All Aluminum TIG-Welded Construction
- 2-Row - 42mm Ultra-High-Performance Core
- OE Location Fan Shroud Mounting Points
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty

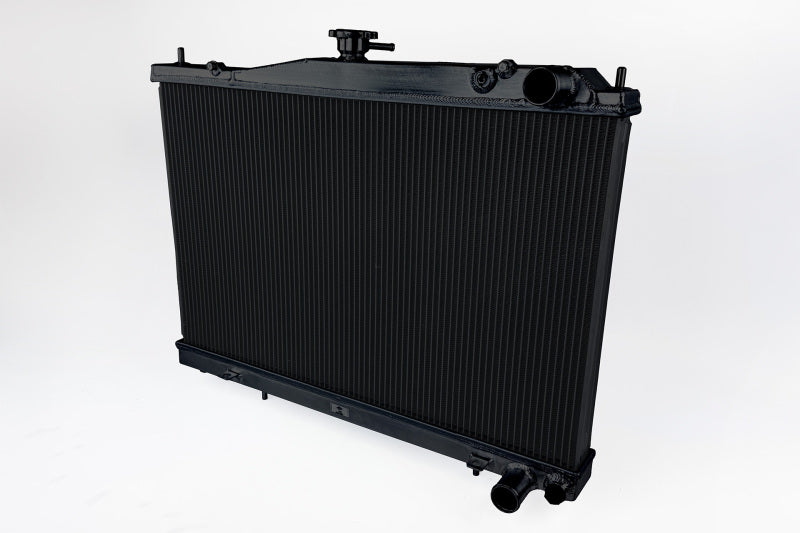

- Satin Black Finish
Fitment:
1994 Nissan Skyline GTS R33
1995 Nissan Skyline GT-R R33
1995 Nissan Skyline GTS R33
1996 Nissan Skyline GT-R R33
1996 Nissan Skyline GTS R33
1997 Nissan Skyline GT-R R33
1997 Nissan Skyline GTS R33
1998 Nissan Skyline GT-R R33
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Carb Acknowledgement Required: false |
| Ltl Freight Required: false |
| Prop 65: N |
| Part Type: automotive |
| Epa: N/A |
| Regular Stock: true |
| Units Per Sku: 1 |
