⚠ No shipping to California due to CARB regulation.

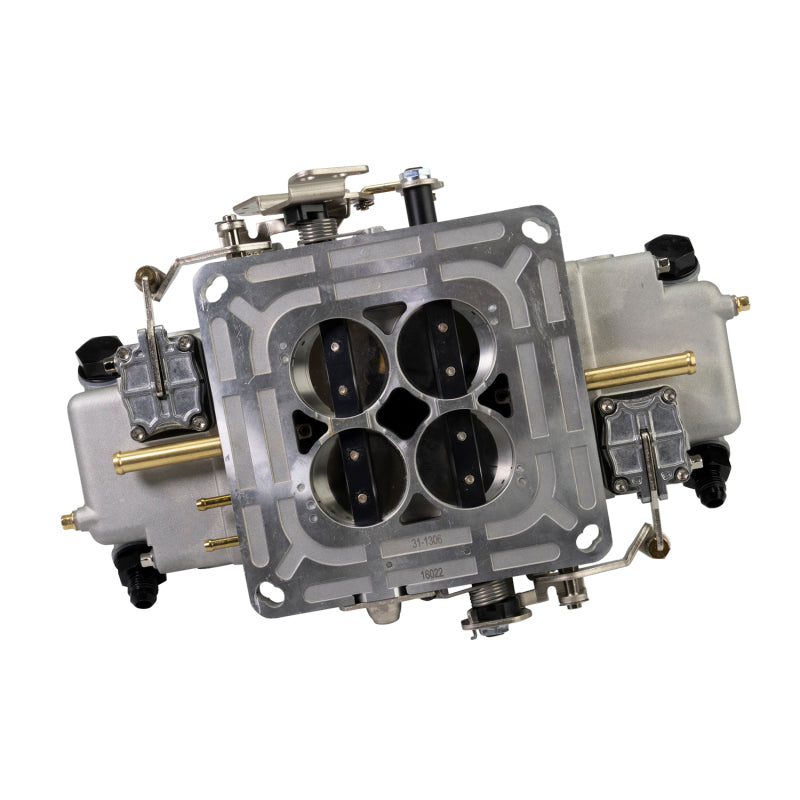

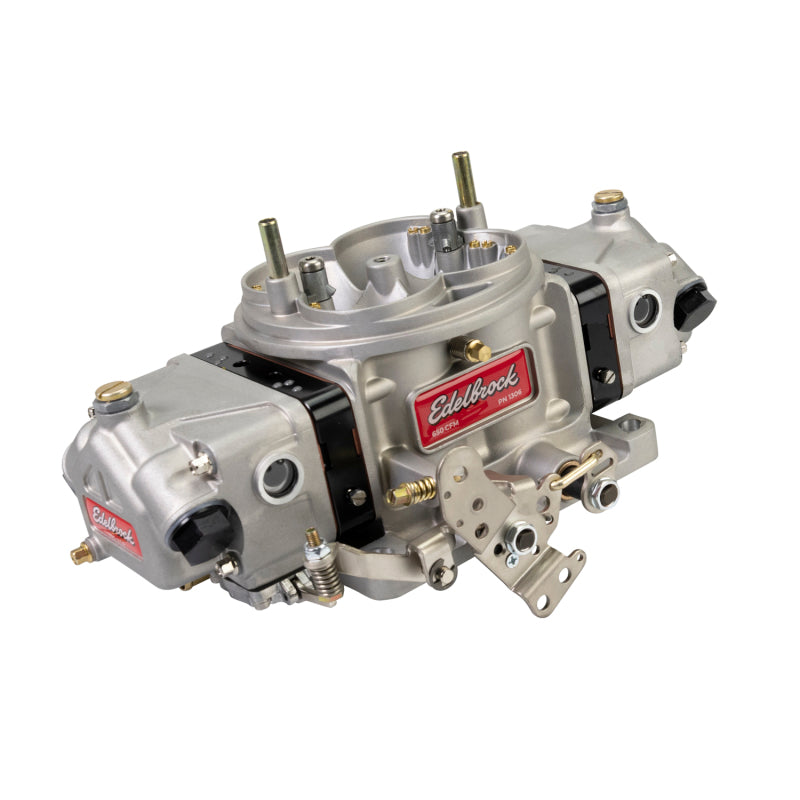

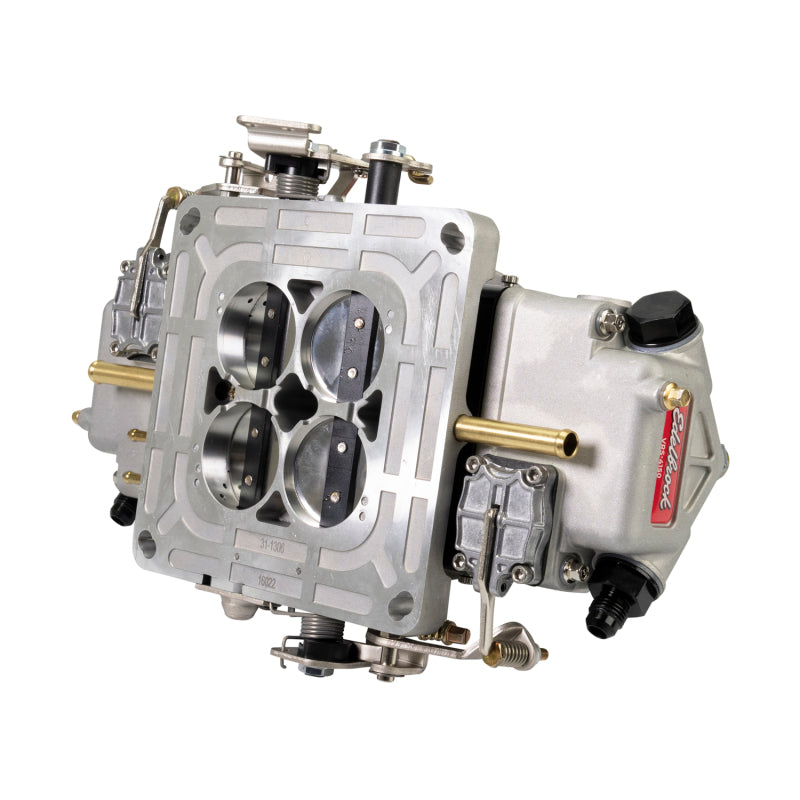

Edelbrock VRS-4150 Race & Performance Carburetor #1309 950 CFM is race ready but street friendly. The one-piece, cast aluminum body fits all 4150 and 4500 carb flange manifolds without requiring an adapter plate. PN 1309 is ready for the track with four circuit billet metering blocks that utilize screw-in emulsion bleeds. The 20% larger capacity fuel bowls feature internal ribs to control fuel slosh, and a sculpted baffle directs incoming fuel to the sides to minimize bubbles. The floats have corner cuts to avoid shutting off the fuel flow during hard cornering, and jet extender notches and jet extenders in the rear to keep the jets covered in fuel under hard acceleration. VRS carburetors allow users to externally adjust idle bypass air as the adjustment screws are accessible without removing the air cleaner/scoop. The advanced idle circuit features interchangeable idle discharge jets in all four corners to allow for a smooth, clean idle with the use of big, low-vacuum camshafts. Normally found only in high end racing carbs, the VRS also includes fully adjustable intermediate fuel circuits, which help to provide incredible throttle response and easy fuel curve slope tuning. Finally, for greater control at high RPM, the high speed/main fuel circuit is split into two bleed circuits – one each for the lower and upper sections. A universal fit throttle arm with take -offs for TV cables, Moly-coated throttle shafts and built-in provisions for a standard GM three-wire TPS mount add features to this carburetor that are ideal for any user. Multiple vacuum hook-ups including timed and full time ports keep this carburetor usable on the street. As an additional feature, the power valves are located on both primaries and secondaries that support optimized jetting. The power valve will add fuel as necessary while the power valve protection circuit prevents diaphragm damage from backfires. All these features make for easy tuning and great versatility in many applications.

Edelbrock VRS-4150 Race & Performance Carburetor #1309 is race ready with four circuit billet metering blocks for full tuning capability and street friendly with a universal fit throttle arm, vacuum fittings and provisions for a TPS sensor.
