Kit includes
| Qty |
Component |
Part # |
| 1× |
Fabtech 17-20 Ford F250/350 4WD 6in Rear Block Kit |
fabFTS22219 |
| 1× |
Fabtech 17-20 Ford F250/350 4WD 6in Radius Arm System - Component Box |
fabFTS22220 |
| 1× |
Fabtech 17-20 Ford F250/350 4WD Gas 6in Coil Spring Kit |
fabFTS22250 |
| 2× |
Fabtech 05-07 Ford F250/350 4WD Front Performance Shock Absorber |
fabFTS7188 |
| 2× |
Fabtech 88-98 GM K1500 4WD Rear Performance Shock Absorber |
fabFTS7266 |
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Carb Acknowledgement Required: f |
| Ltl Freight Required: false |
| Prop 65: Y |
| Epa: N/A |

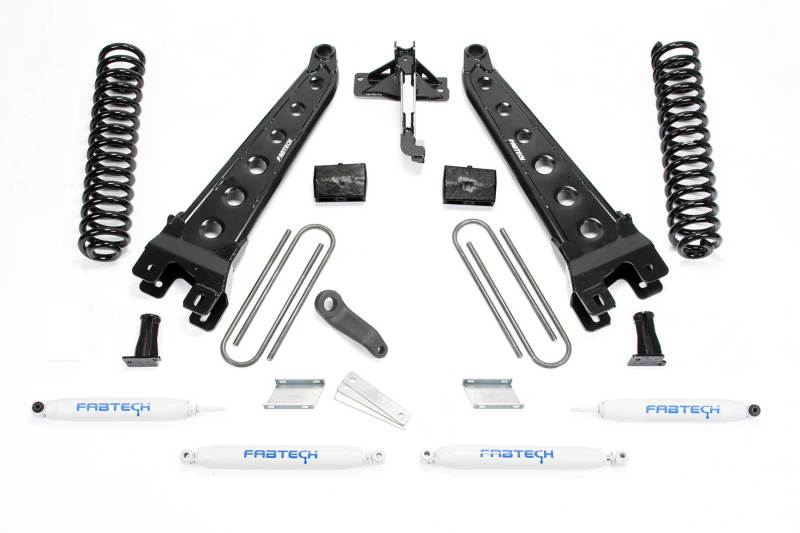

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6" replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit. Includes Performance Shocks. This system qualifies for our 5/60 Powertrain Warranty.
6in. RAD ARM SYS W/COILS/PERF SHKS 17-18 FORD F250/F350 4WD GAS
TIRE SIZE - 37/12.50R17 WHEEL - 17X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R18 WHEEL - 18X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 3. NON DUALLY MODELS ONLY.; 163. VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.; 171. WILL NOT FIT DIESEL MODELS; 173. FRONT DRIVESHAFT MODIFICATION IS REQUIRED OR ORDER DRIVESHAFT (FTS92036); 175. VEHICLES W/ FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276.
Fitment:
2017 Ford F-250 Super Duty King Ranch
2017 Ford F-250 Super Duty Lariat
2017 Ford F-250 Super Duty Platinum
2017 Ford F-250 Super Duty XL
2017 Ford F-250 Super Duty XLT
2017 Ford F-350 Super Duty King Ranch
2017 Ford F-350 Super Duty Lariat
2017 Ford F-350 Super Duty Platinum
2017 Ford F-350 Super Duty XL
2017 Ford F-350 Super Duty XLT
2020 Ford F-250 Super Duty King Ranch
2020 Ford F-250 Super Duty Lariat
2020 Ford F-250 Super Duty Platinum
2020 Ford F-250 Super Duty XL
2020 Ford F-250 Super Duty XLT
2020 Ford F-350 Super Duty King Ranch
2020 Ford F-350 Super Duty Lariat
2020 Ford F-350 Super Duty Platinum
2020 Ford F-350 Super Duty XL
2020 Ford F-350 Super Duty XLT
