Vehicle Fitment

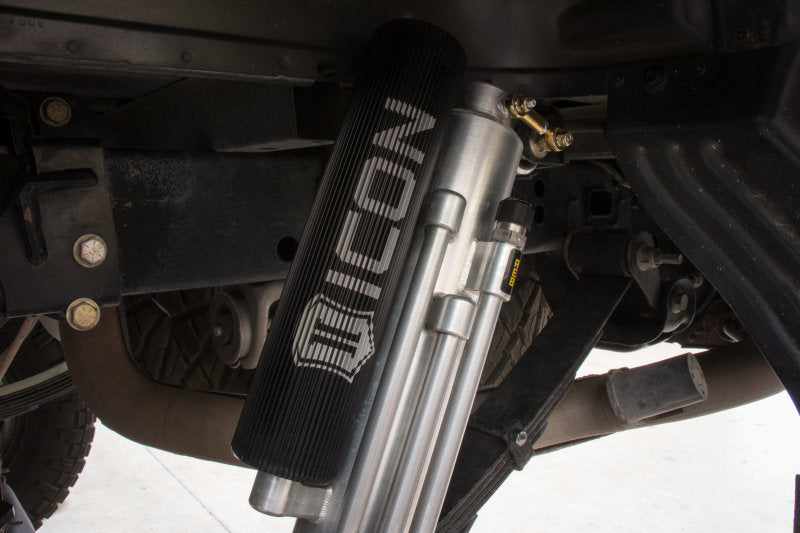

The rear of the updated Ford Raptor was a highlight for ICON engineers, as new changes proved to be for the better. One significant change was that the shock mounting layout went from a parallel style setup to an offset design. While this is great for controlling axle wrap, it required a thorough reevaluation of the way ICON shocks would need to function to make the most of the refreshed rear end. In the R&D process it was found that Gen 2 had more available wheel travel than the original Raptor, and by way of an offset upper eyelet ICON engineers laid out a 3.0 Series bypass shock that maximized travel while utilizing the factory shock mounts. To control the rear end in specific ranges of travel, these shocks feature 3 unique bypass zones – 2 on the compression stroke and one rebound. Unlike other shocks that have a loud bypass “click” when functioning, ICON bypass valves feature damped valve stops for quiet and precise operation. Easy-to-adjust knobs allow for quick changes to shock tuning without the need for tools, enabling the user to dial in their ride with minimal down time. When in use on and off-road, ICON’s patented Anti-Wobble Link stabilizes the shocks to prevent rotation and possible collision. Additionally, urethane shin guards protect the shock shafts and rod ends under grueling off-road conditions.

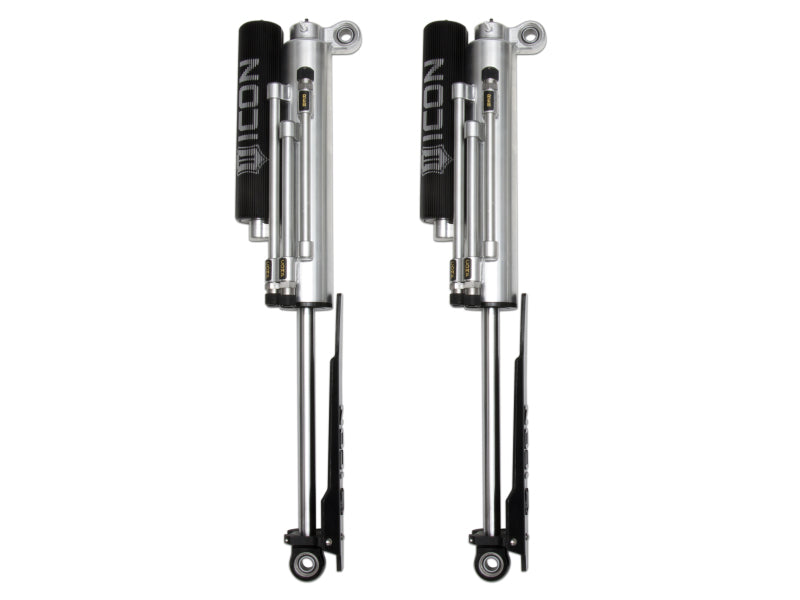

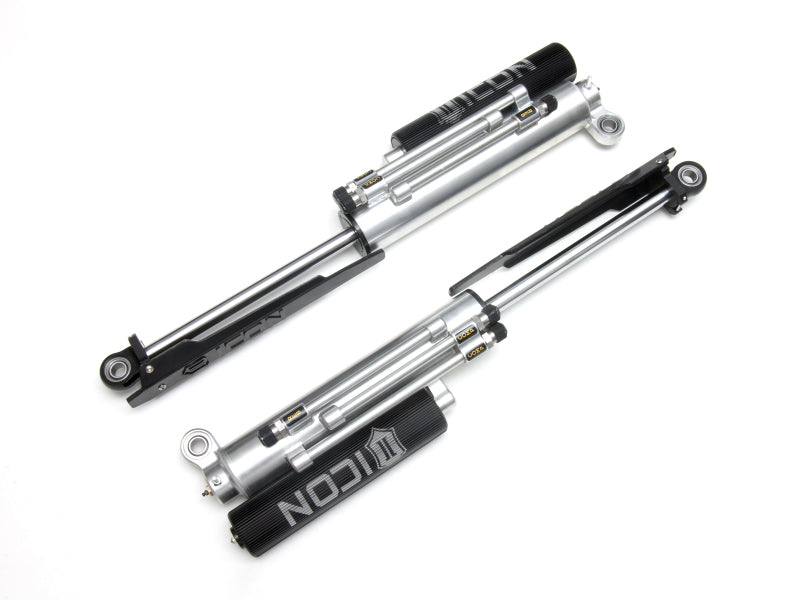

2017-UP FORD RAPTOR REAR 3.0 PB SHOCK PAIR
APPLICATION NOTE: 2019-UP VEHICLES WITH FACTORY LIVE VALVE SHOCKS WILL NEED AN ICON DAMPER INTERFACE DEVICE (PN: 95199) TO ALLOW THE VEHICLE DRIVE MODES TO OPERATE CORRECTLY WITH THE OE SHOCKS REMOVED.
