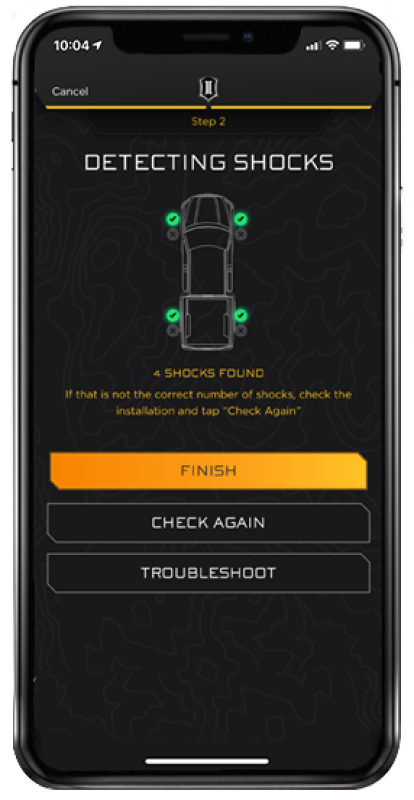

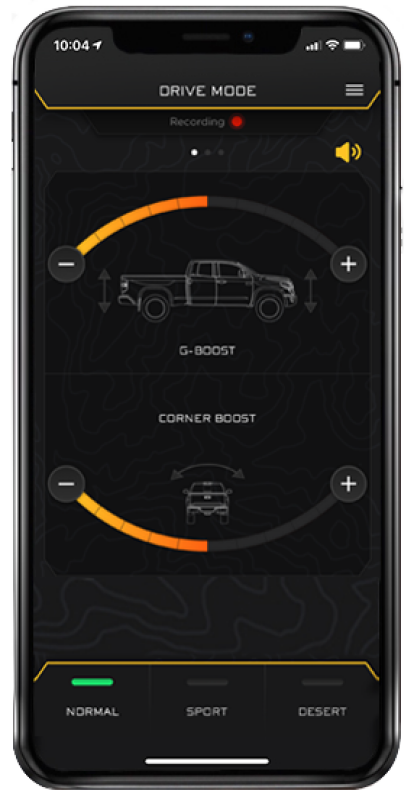

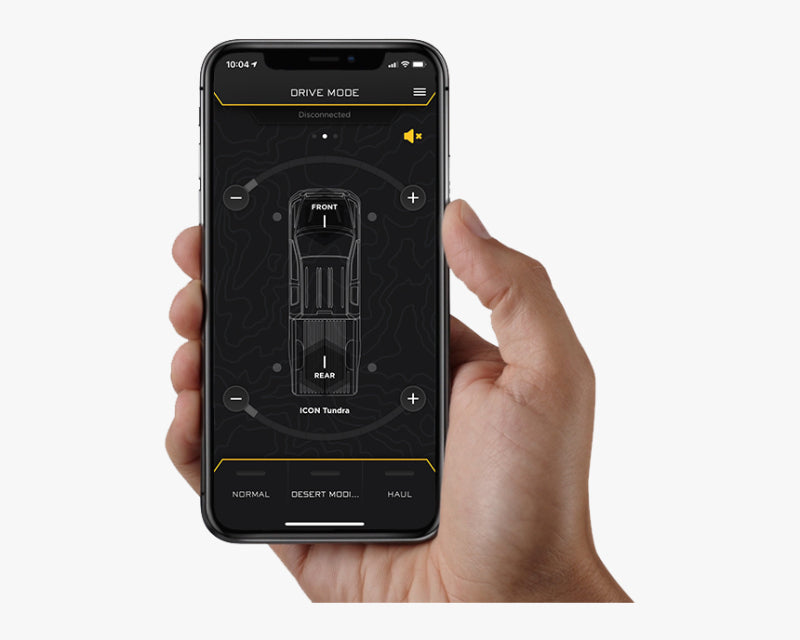

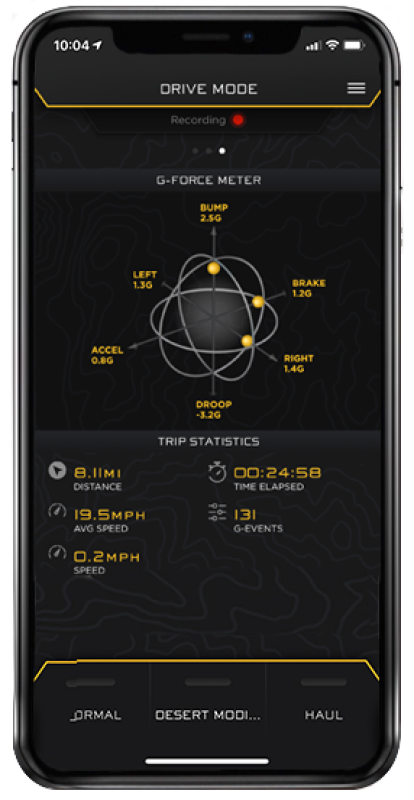

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

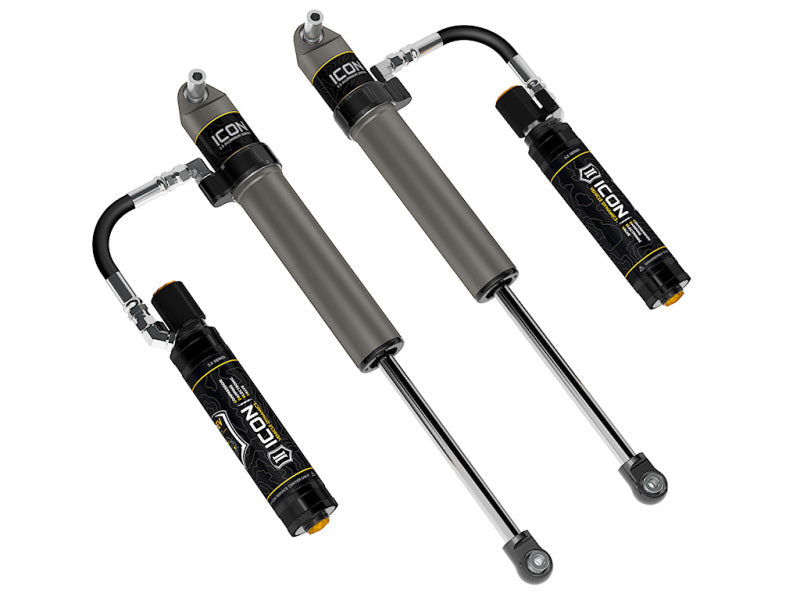

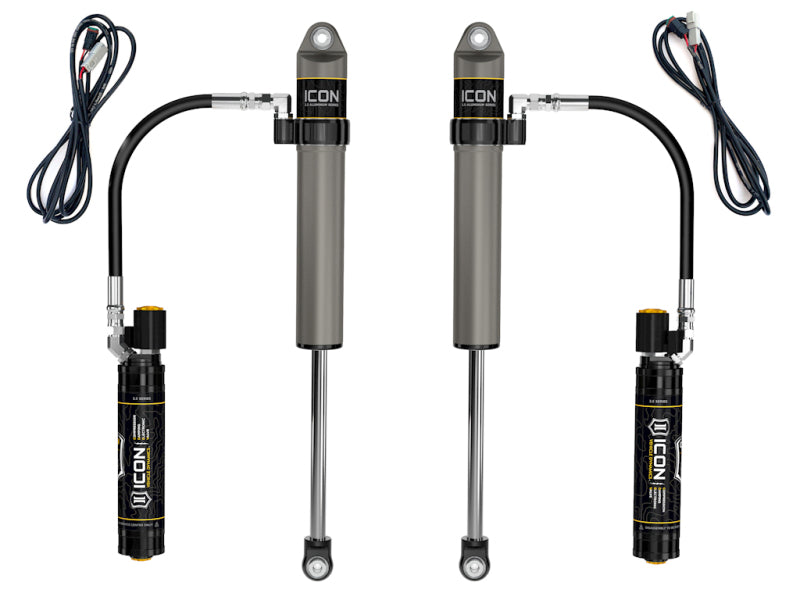

ICON 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured for each application in both length and damping tune.

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with piggyback reservoir
• 6061 aircraft grade aluminum CNC machined components
• 100% Revalveable
• 100% Rebuildable
