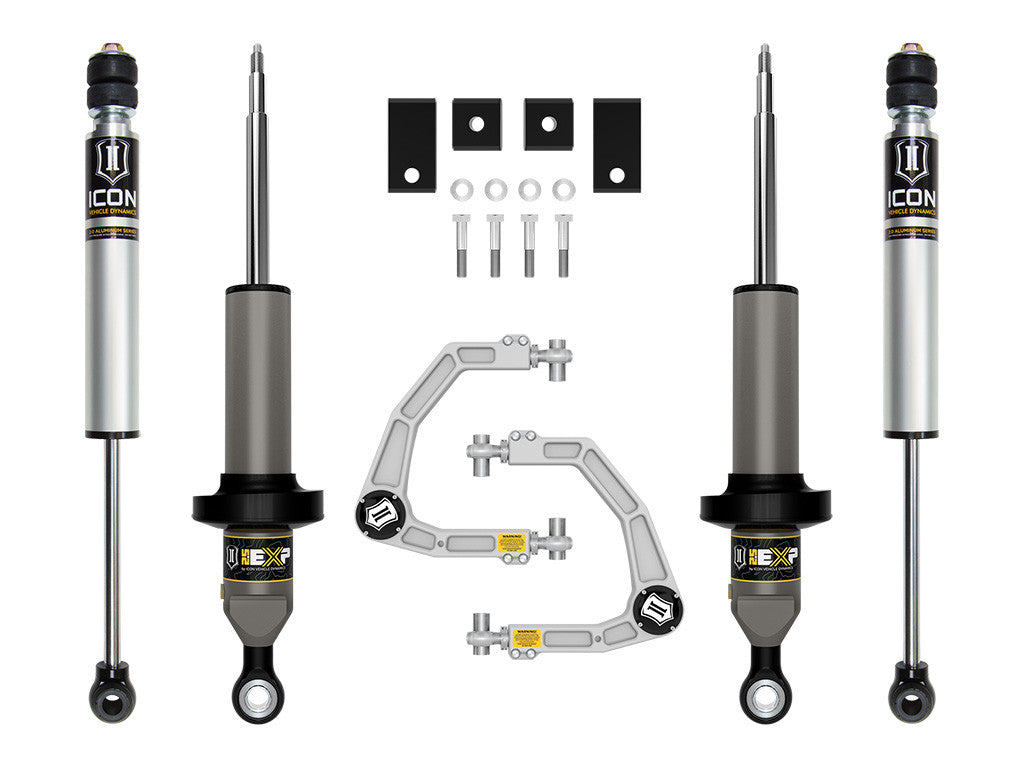

Kit includes

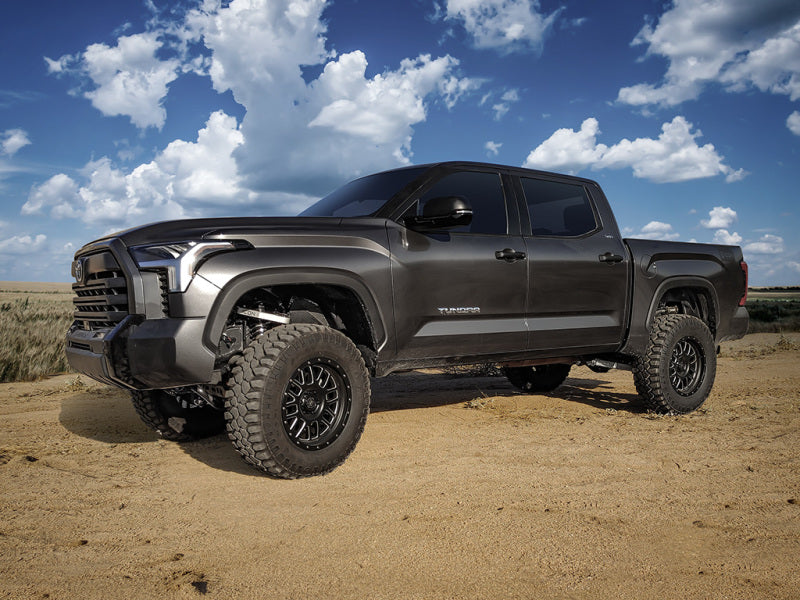

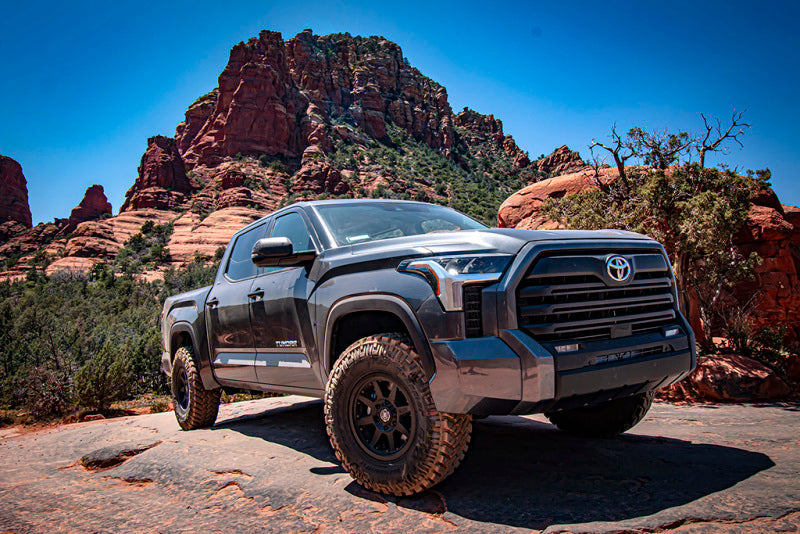

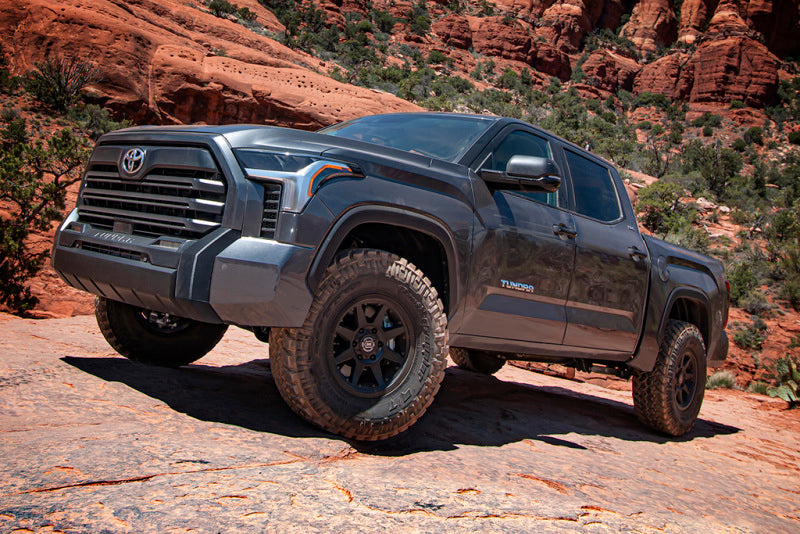

The ICON Vehicle Dynamics Stage 2 complete suspension system for the 2022-2025 Toyota Tundra builds on ICON's 2.5 EXP Shock Kit with the addition of billet front upper control arms, providing proper alignment at any ride height, improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks and sway bar drop kit for the front of the truck along with our proven 2.0 nitrogen charged monotube shock with internal reservoir for the rear.
Stage 2 includes a pair of 2.5 EXP Series coilovers for 2-3” of front lift, improved performance, and 35” tire fitment. Billet UCAs for alignment correction are included with 2.0 Series rear shocks to balance the tuning from front to rear.
TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package.

• Adjustable front ride heights from 0-3” of front lift over stock with the use of snap ring and included billet UCAs

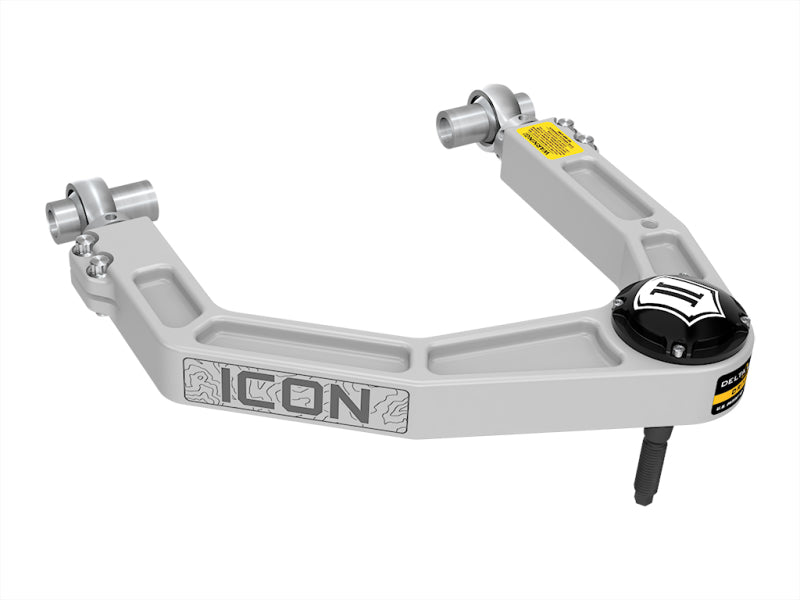

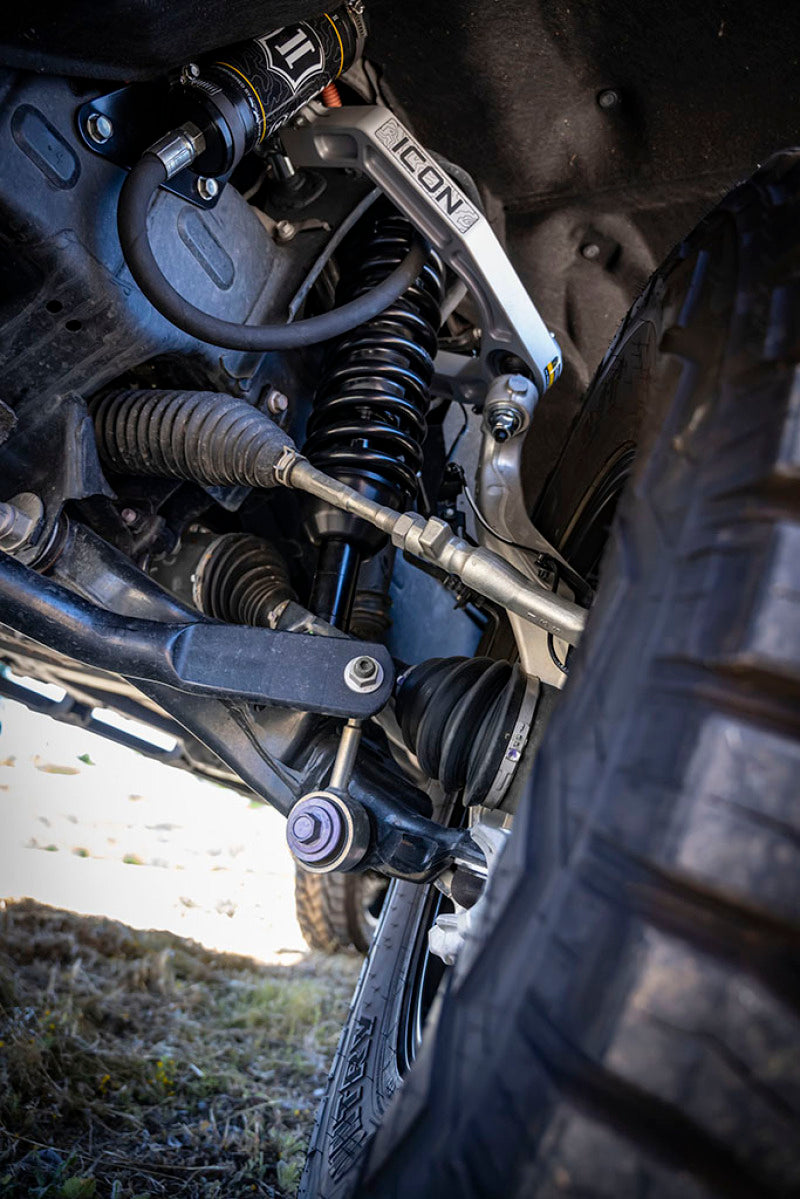

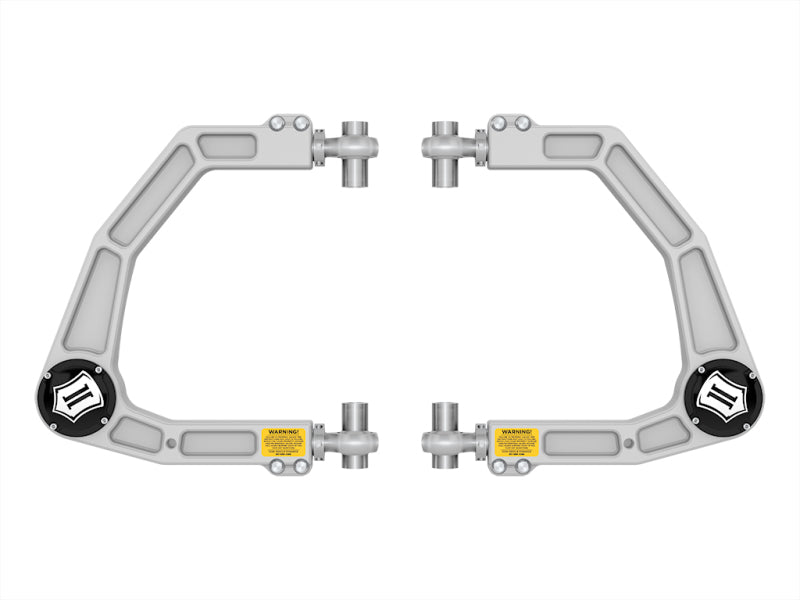

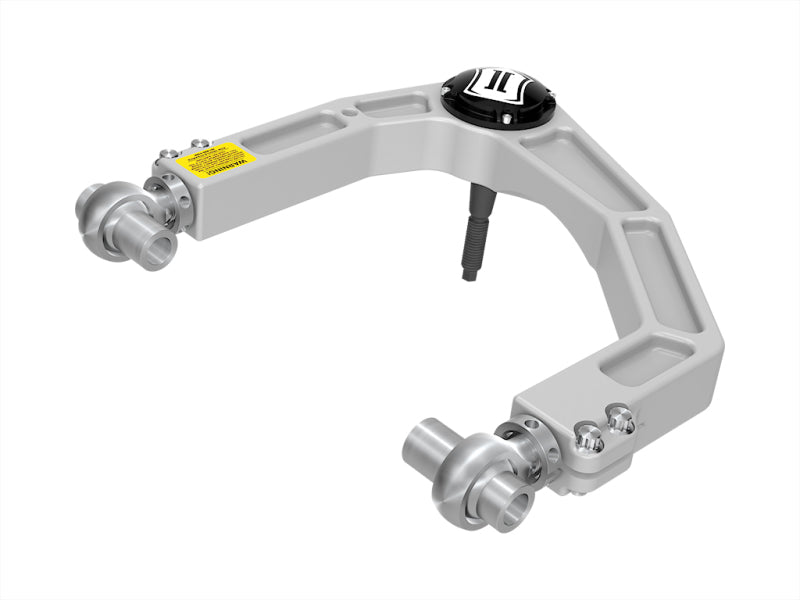

• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability


• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation

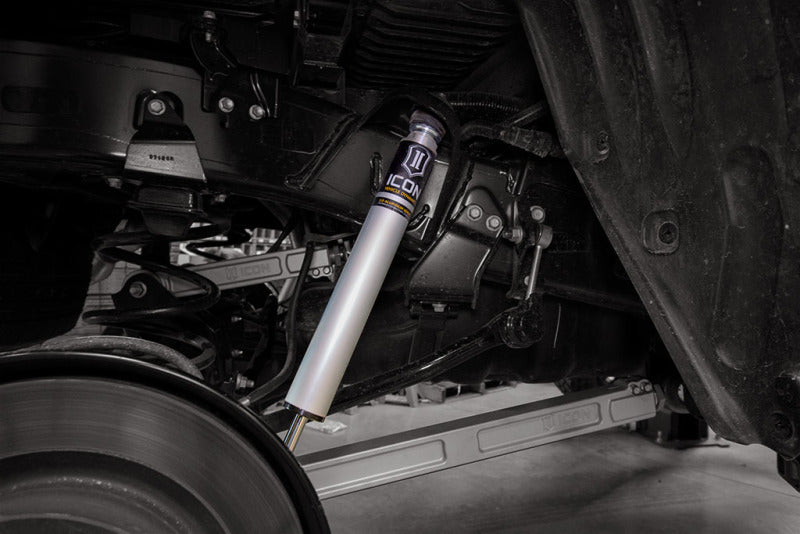

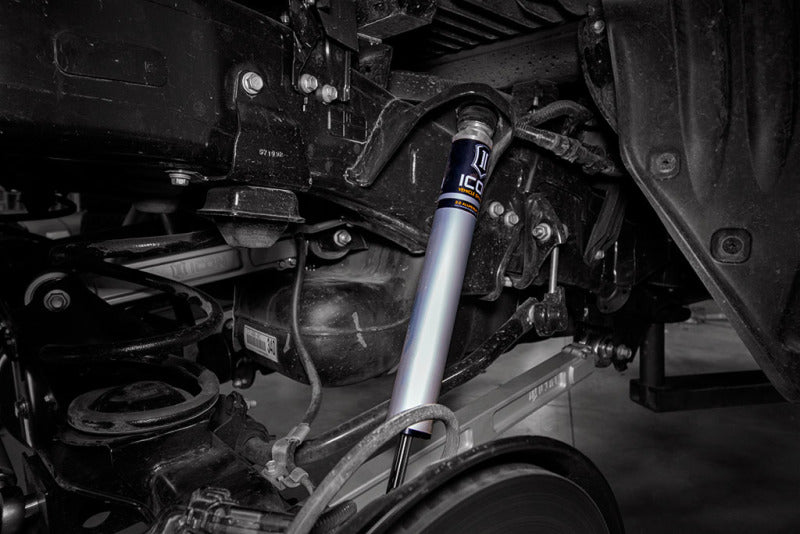

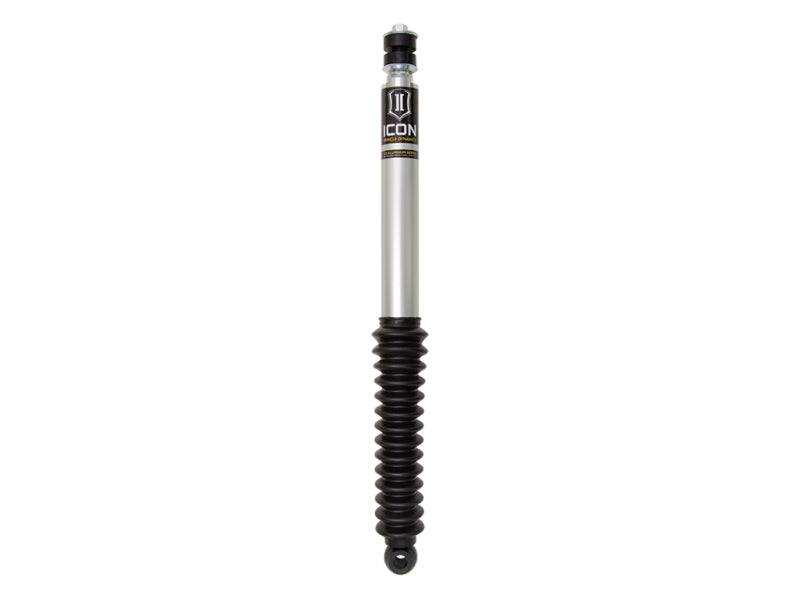

• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance

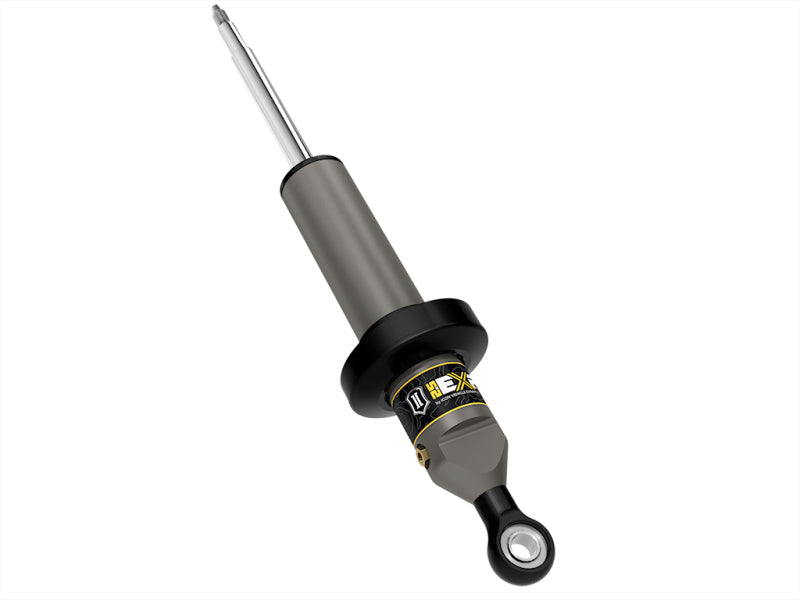

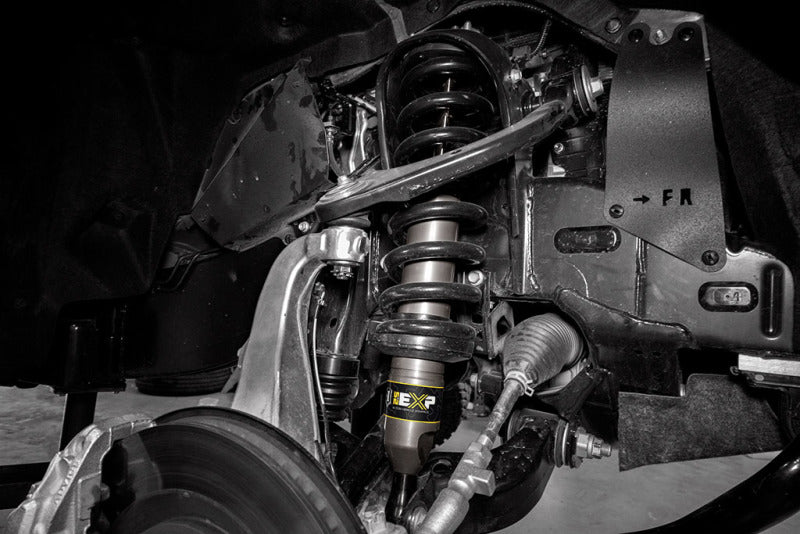

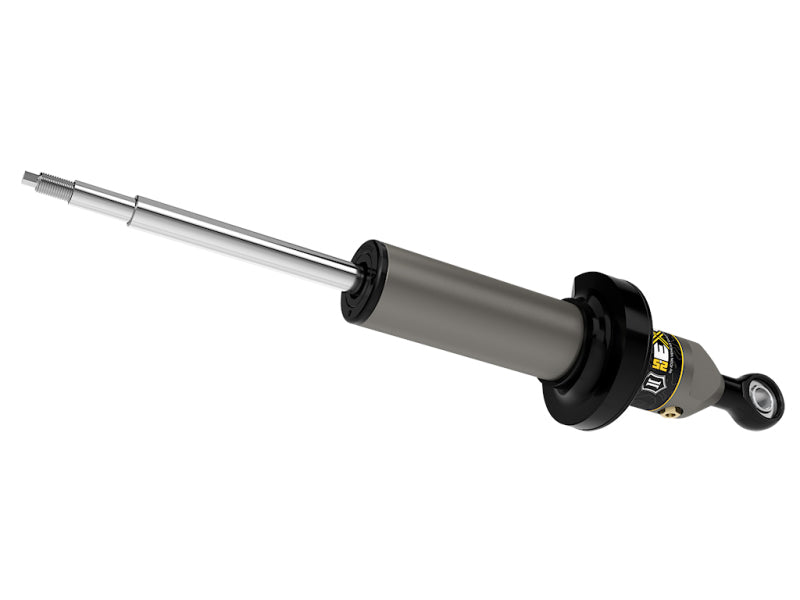

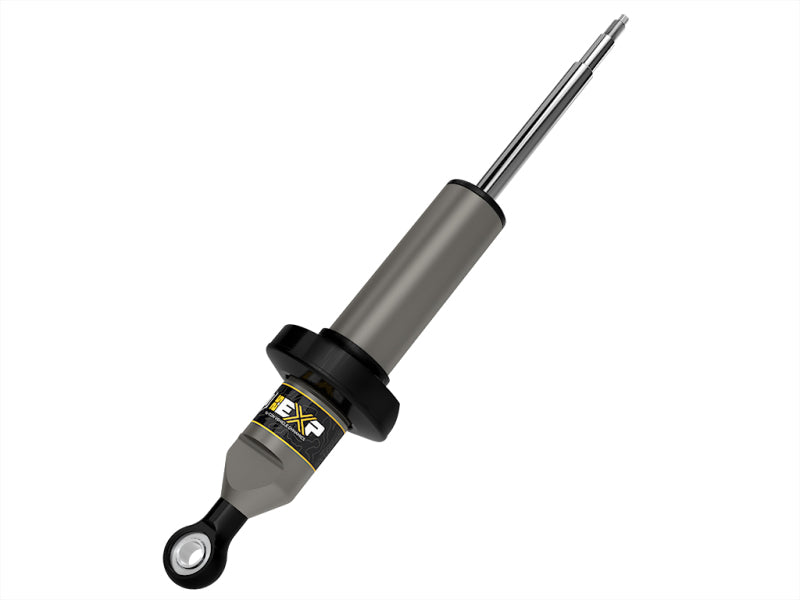

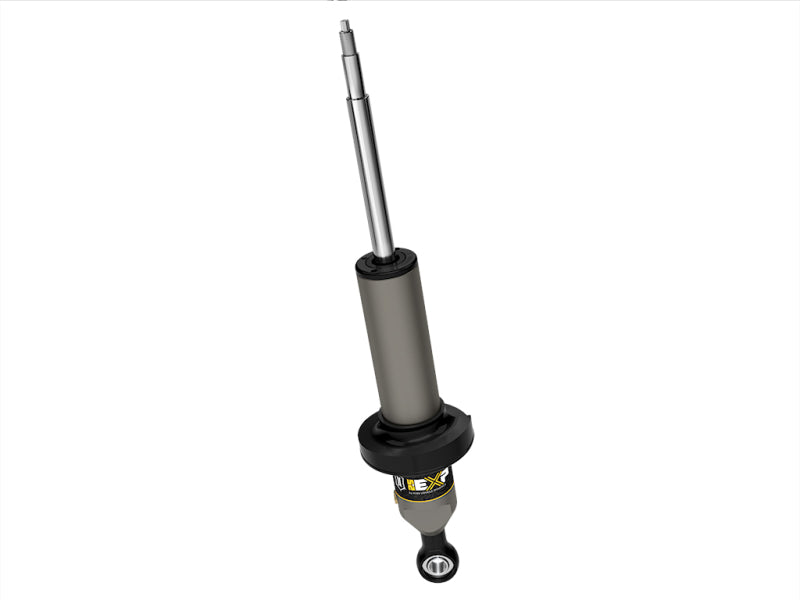

• 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware


• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

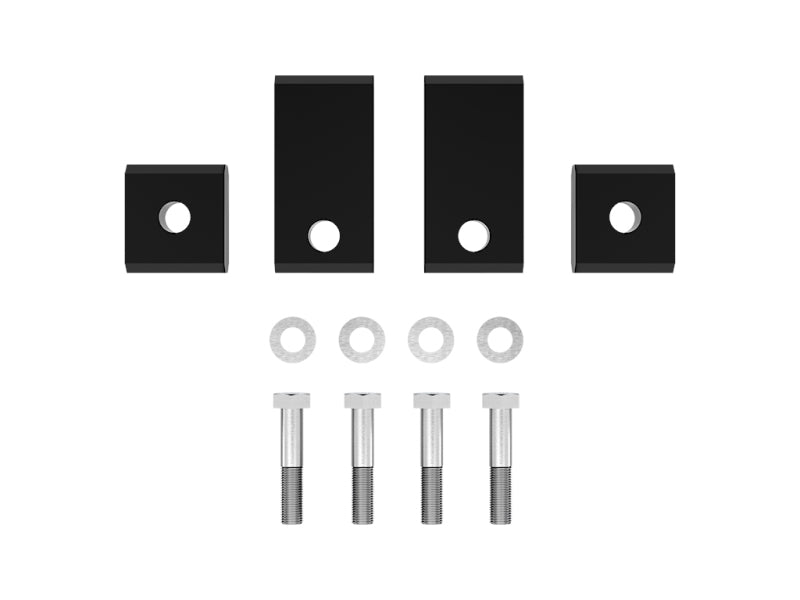

• Included sway bar drop brackets reduce bind in OE sway bar links


• Allows for full wheel travel without overstressing OE components


• All ICON shock absorbers are fully rebuildable and re-tunable


• Vehicle specific design for 2022-2025 Toyota Tundra

Fitment:
2022 Toyota Tundra 1794 Edition
2022 Toyota Tundra Limited
2022 Toyota Tundra Platinum
2022 Toyota Tundra SR
2022 Toyota Tundra SR5
