Kit includes

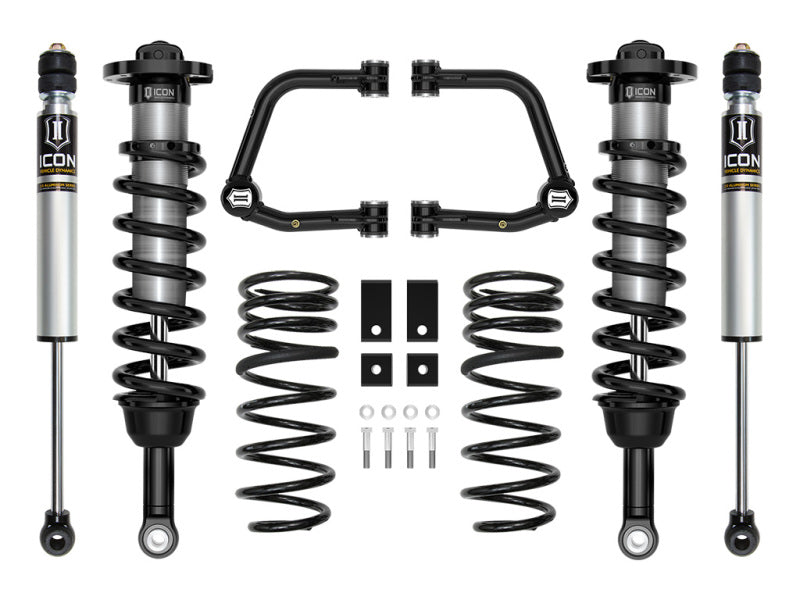

The ICON Vehicle Dynamics Stage 4 complete suspension system for the 2023-2025 Toyota Sequoia builds upon the ICON threaded-body V.S. 2.5 Series Coilovers with the addition of ICON tubular front upper control arms. This system offers improved on- and off-road performance as well as improved alignment specs with front-end lift and leveling for a proper stance and fitment of up to 35" tires. To compliment the internal reservoir coilover shock and tubular control arm combo, a sway bar drop kit for the front of the truck is included along with dual rate coil springs and our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.
Stage 4 includes 2.5 Series coilovers for 3-4.5” of front lift, greater performance, and 35” tire fitment. Tubular UCAs provide alignment correction and rear coils with 2.0 Series rear shocks balance the tuning from front to rear.
TECH NOTE: Most Sequoia submodels will have front lift height range of 3-4.5” over stock and 2" of rear lift over stock. Submodels equipped with TRD Off-Road Package and TRD Pro will have a front lift height range of 1-2.5" over stock and remain at stock height in the rear. If taller rear ride heights are desired, consider kit part number K53234TS.

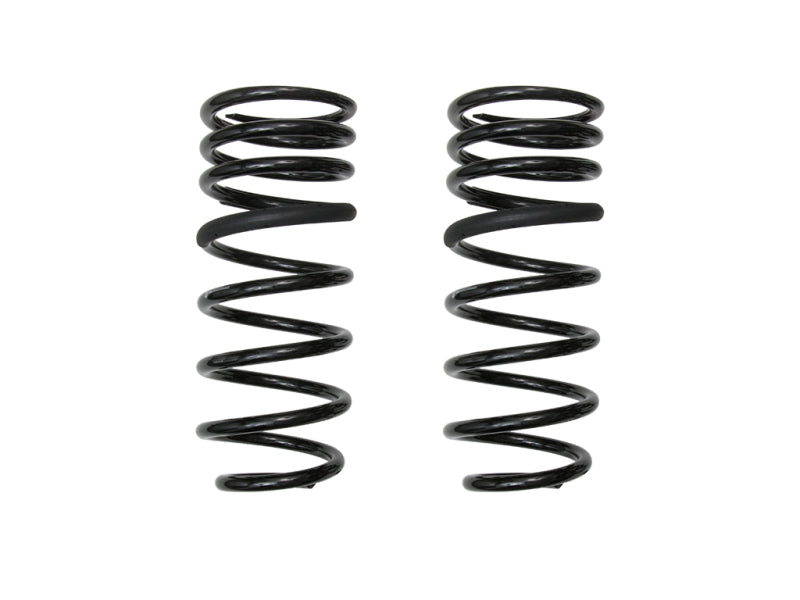

• Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package


• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation

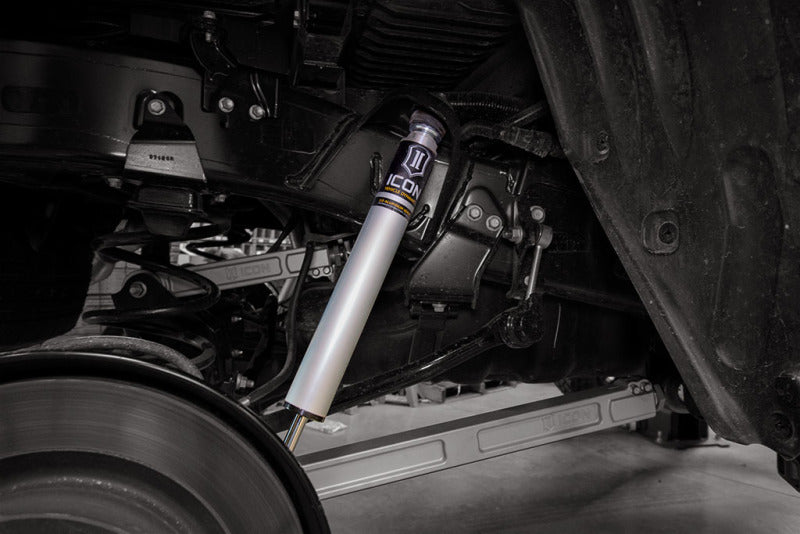

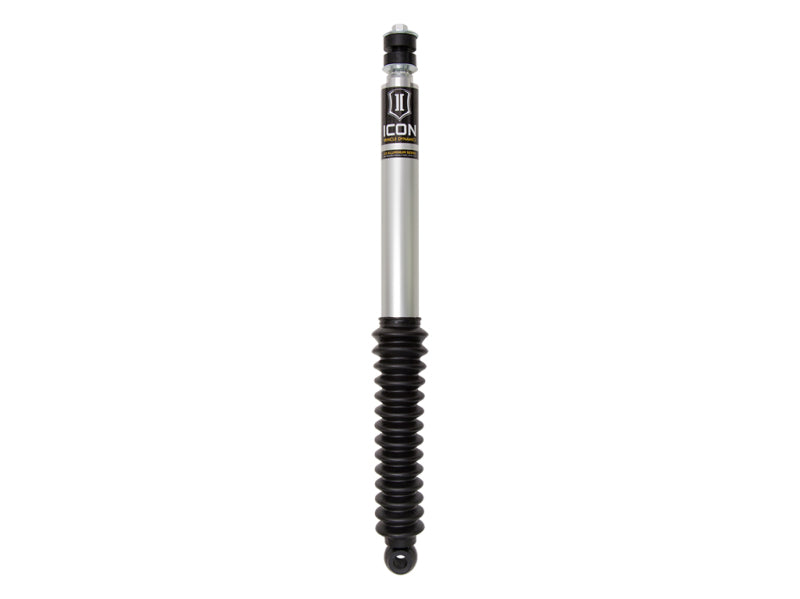

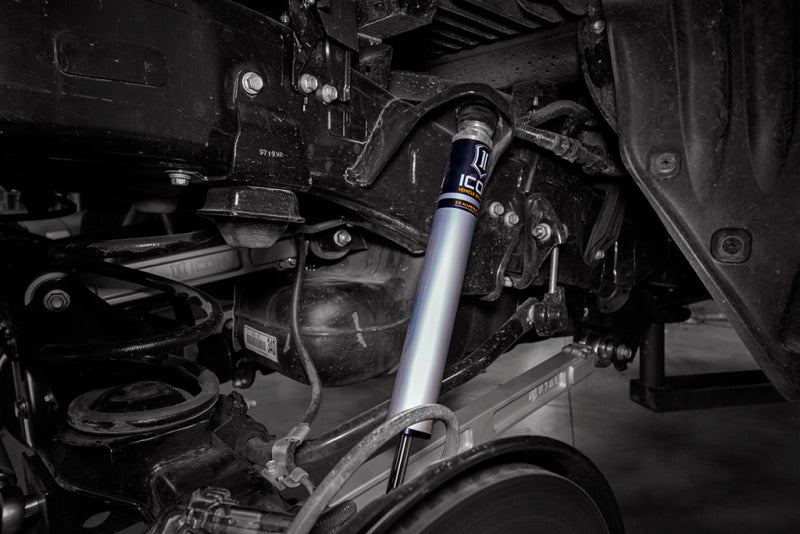

• 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance

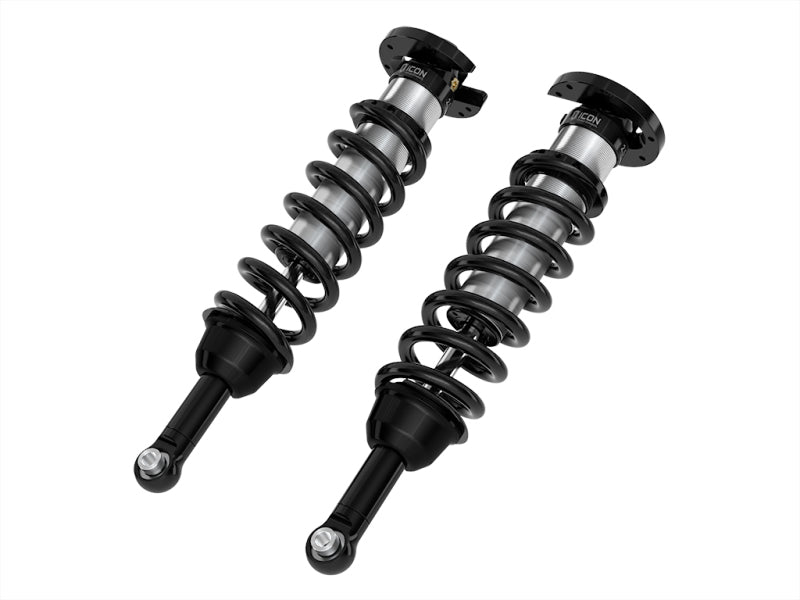

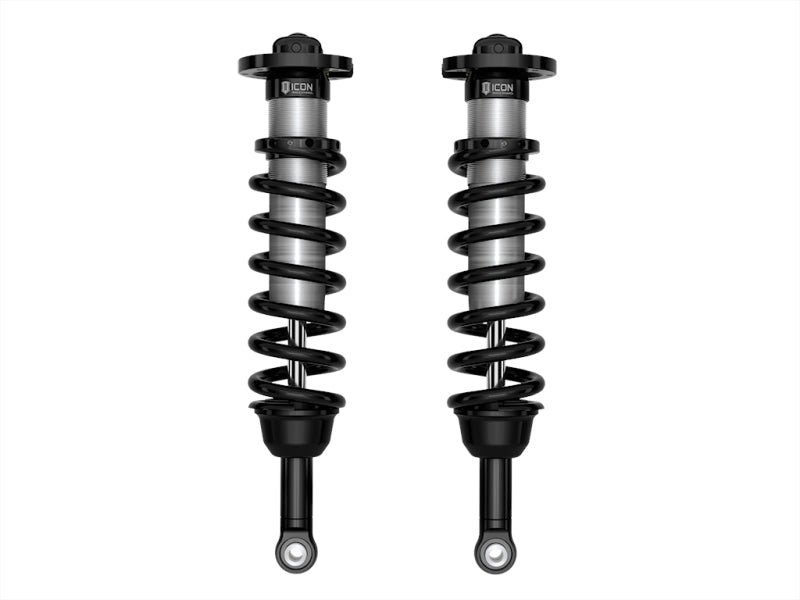

• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control

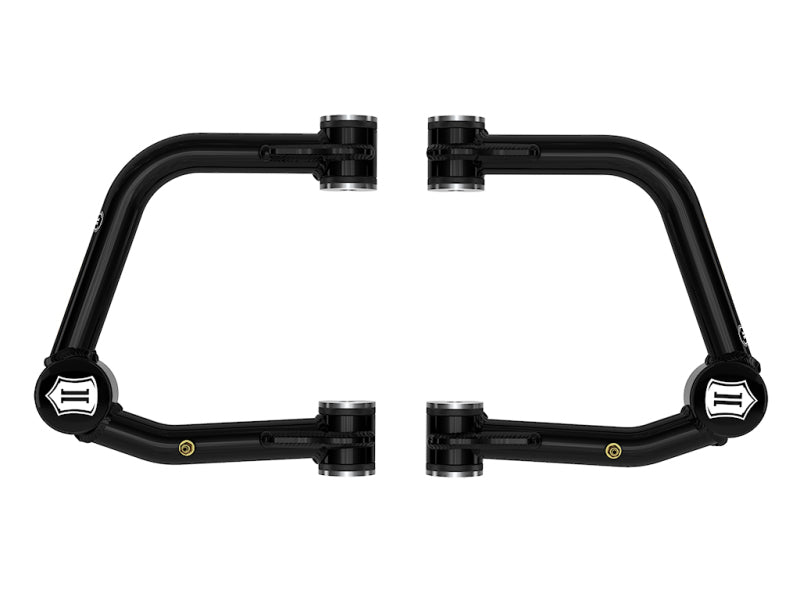

• Tubular UCAs for added strength, durability, and alignment correction for better drivability


• Adjustable front ride heights from 3-4.5” of front lift over stock

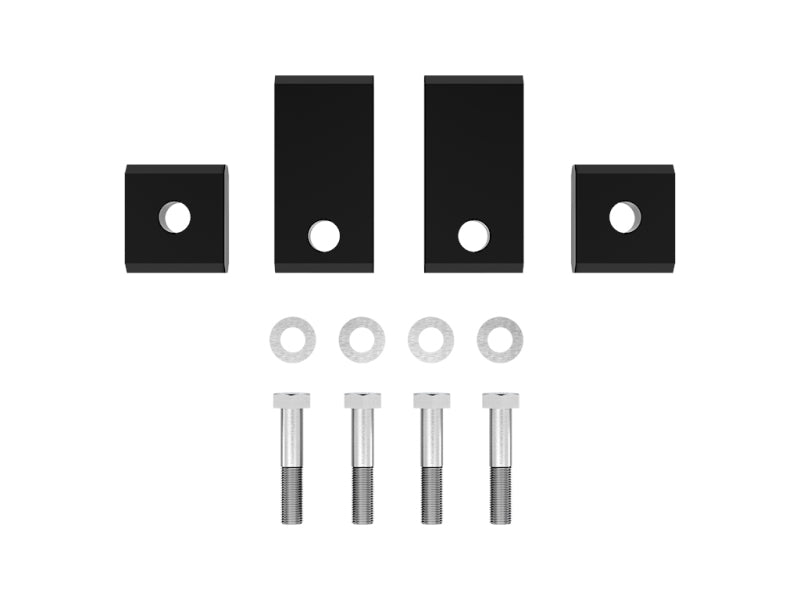

• Included sway bar drop brackets reduce bind in OE sway bar links


• Allows for full wheel travel without overstressing OE components


• All ICON shock absorbers are fully rebuildable and re-tunable


• Vehicle specific design for 2023-2025 Toyota Sequoia

Fitment:
2023 Toyota Sequoia Capstone
2023 Toyota Sequoia Limited
2023 Toyota Sequoia Platinum
2023 Toyota Sequoia SR5
