Kit includes

The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Land Cruiser with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2” of rear lift height over stock allows a for level stance front to rear. ICON billet rear lower links feature on-vehicle adjustability via the ICON double adjuster and employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024 Toyota Land Cruiser 250 Series Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
ICON LC250 suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.

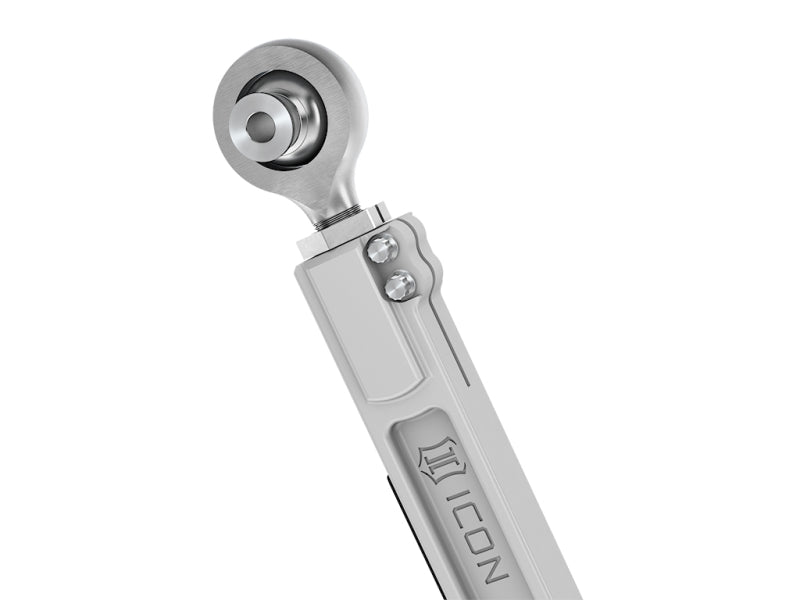

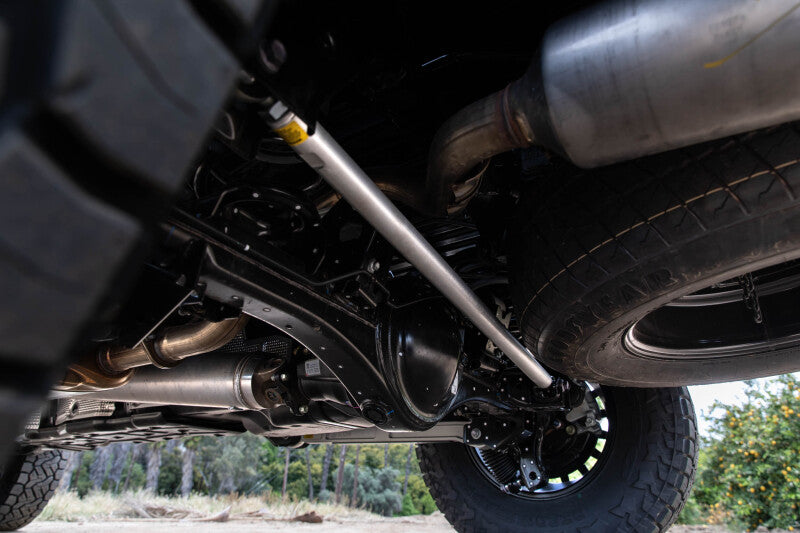

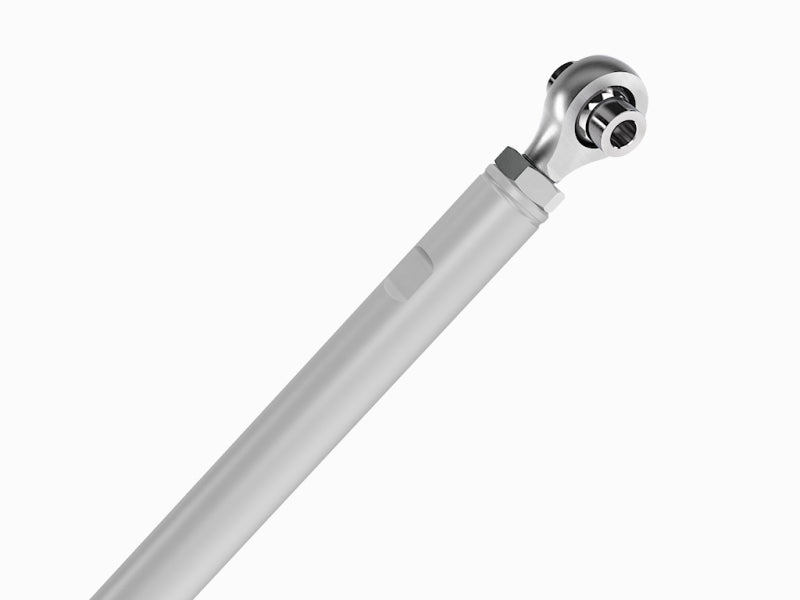

• On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance

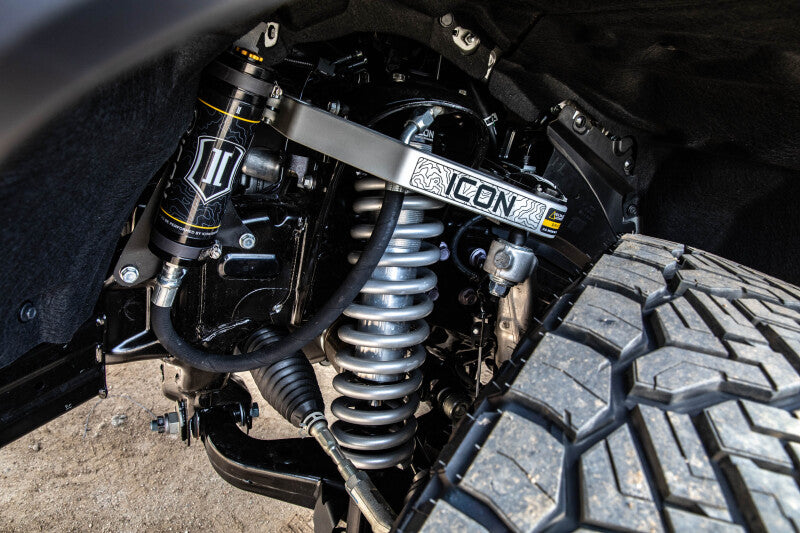

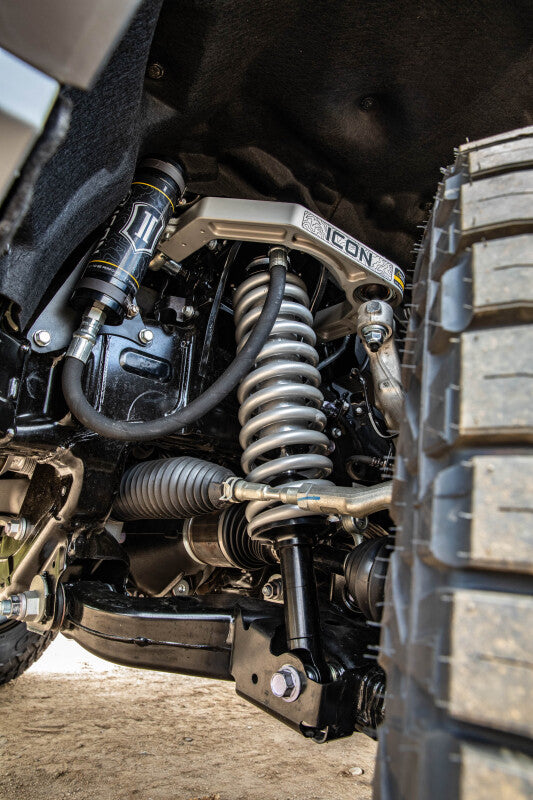

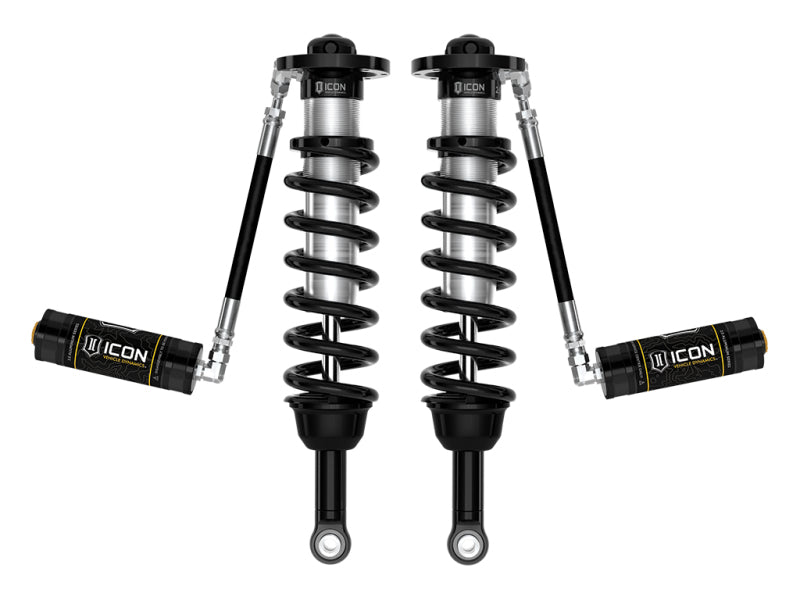

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

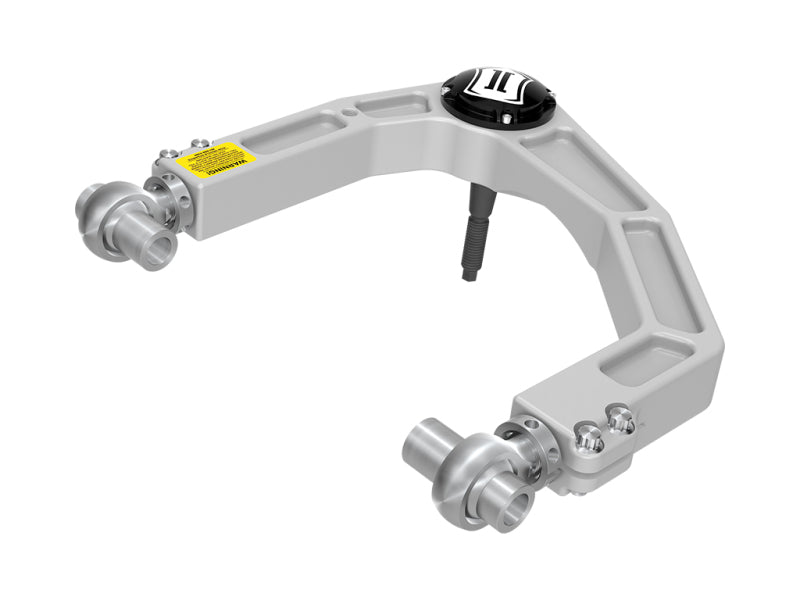

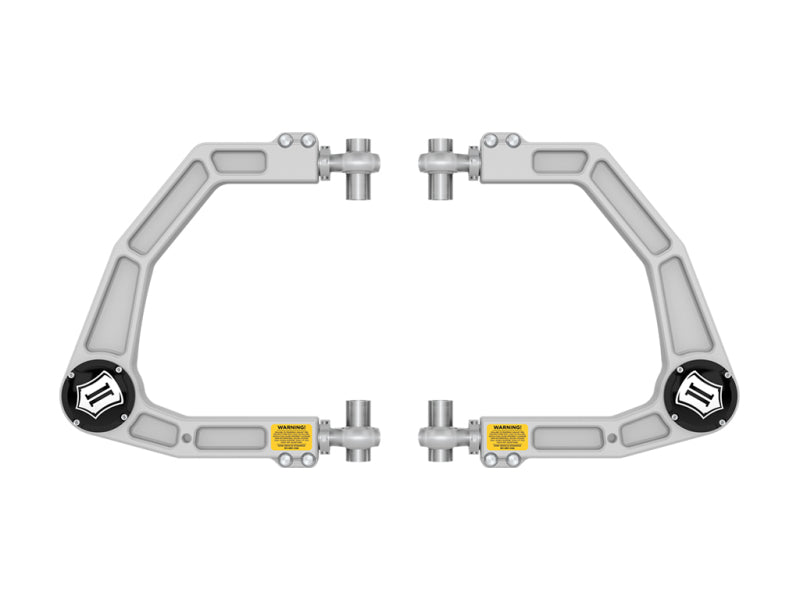

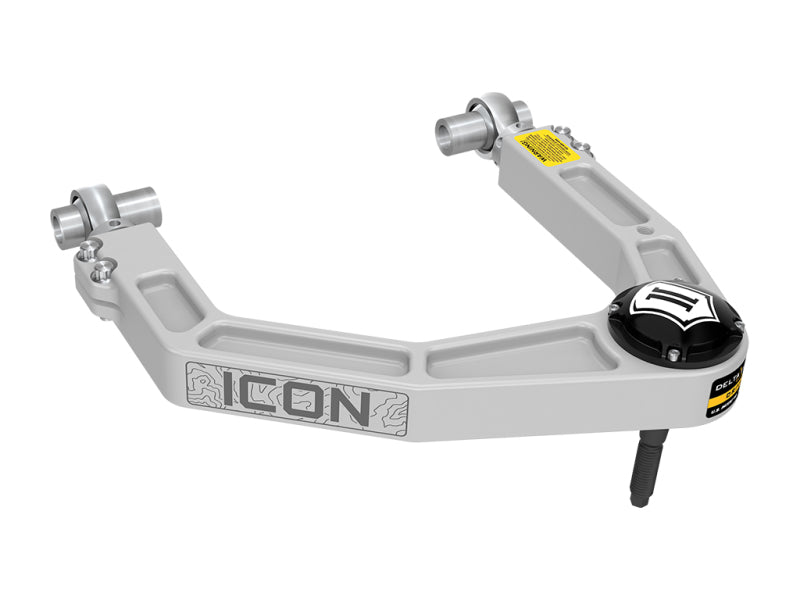

• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability

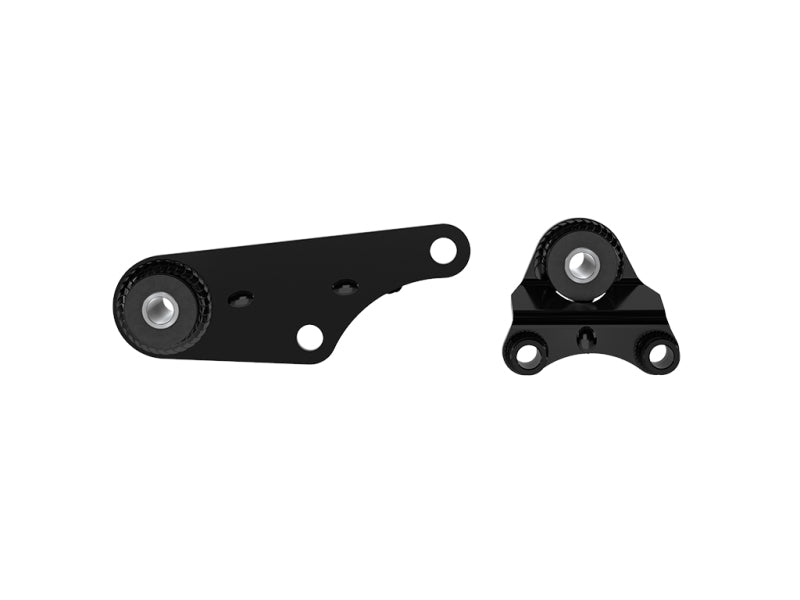

• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel

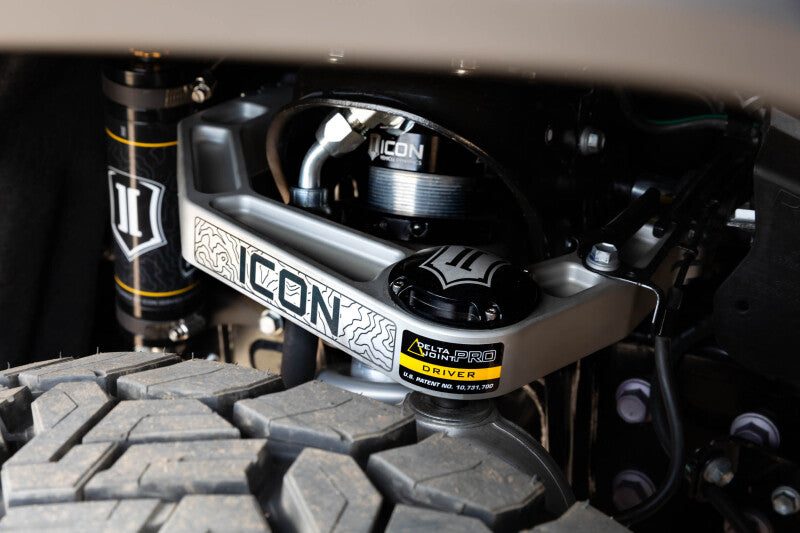

• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation

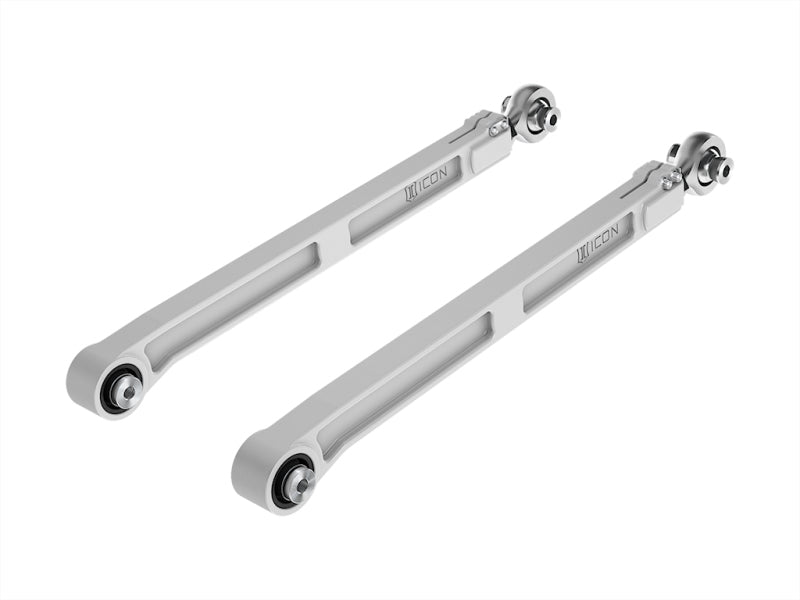

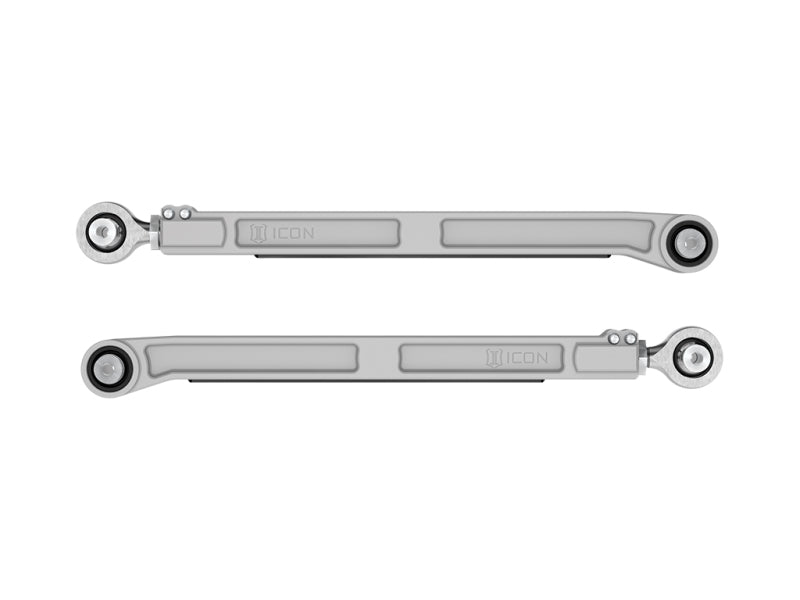

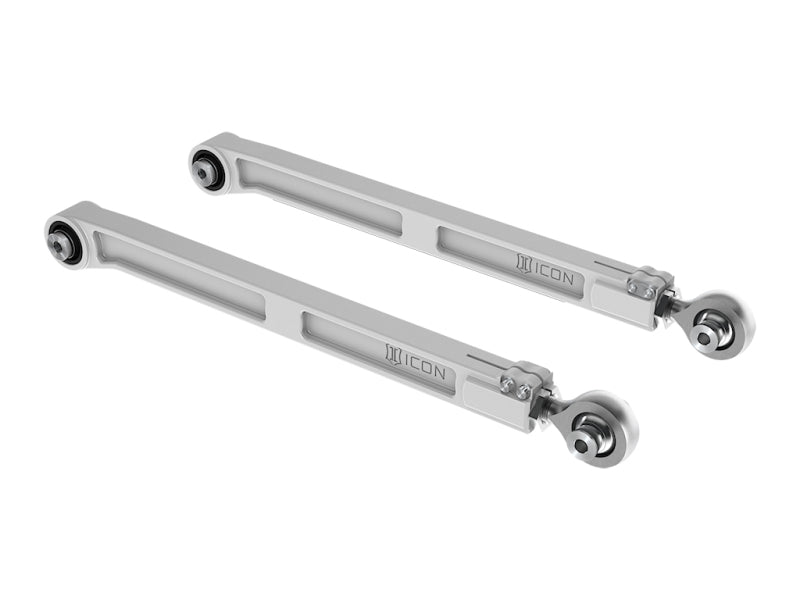

• Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment

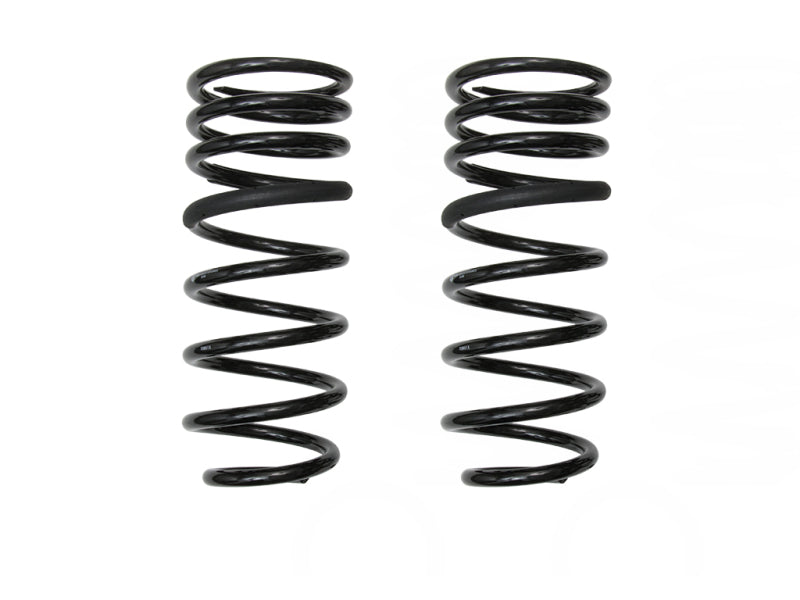

• Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift


• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts


• Adjustable coilovers provide 1.25-3" front lift height over stock


• FK Rod End bearings for extended longevity and minimal deflection

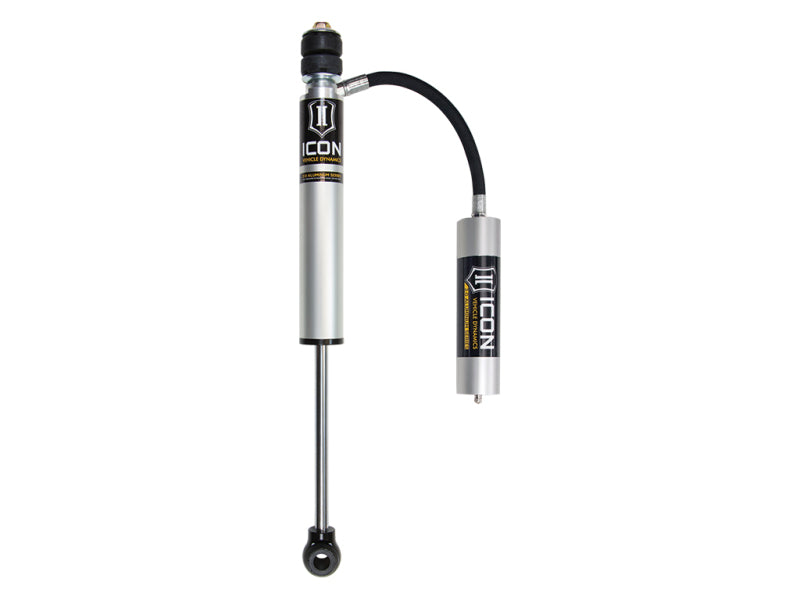

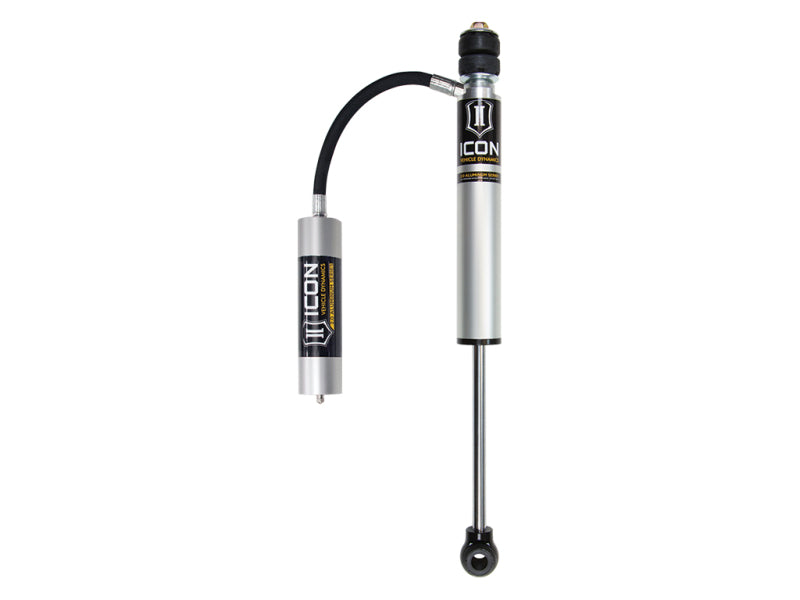

• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts


• Increased wheel travel and improved ride quality over stock


• 6061 aircraft grade aluminum CNC machined components
