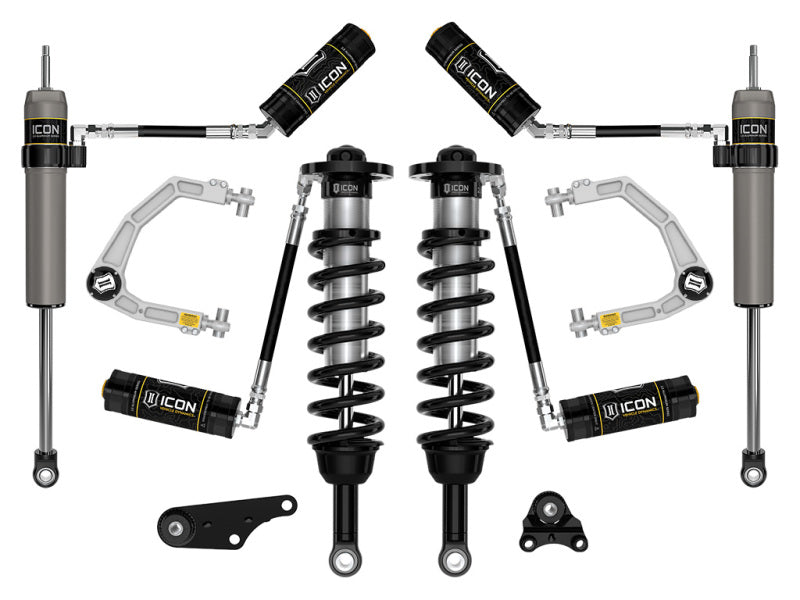

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 4 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevents CV bind. Polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.
ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.
APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

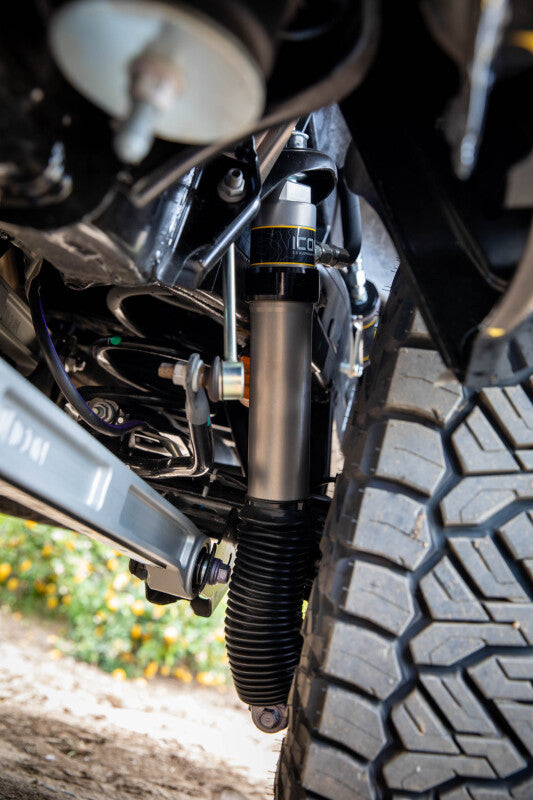

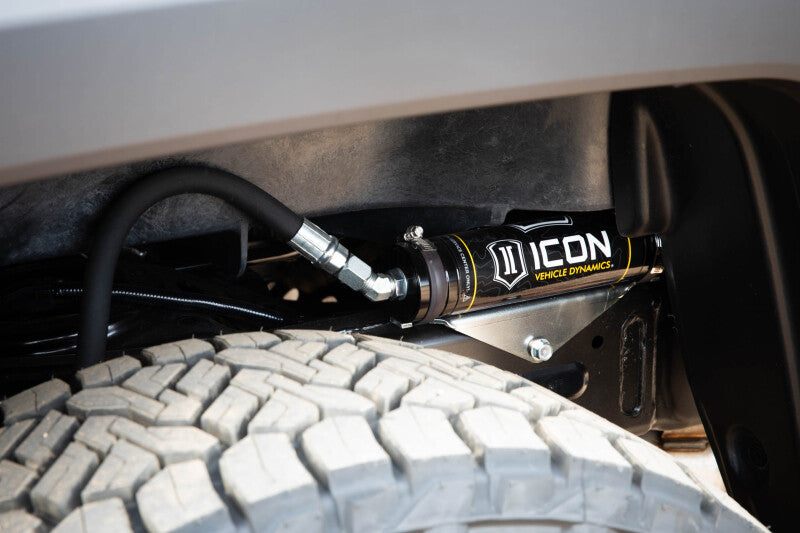

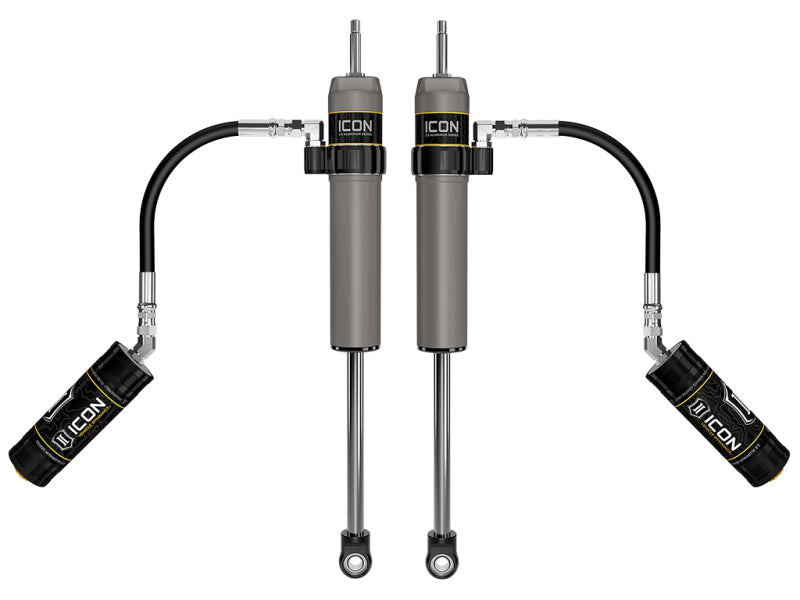

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

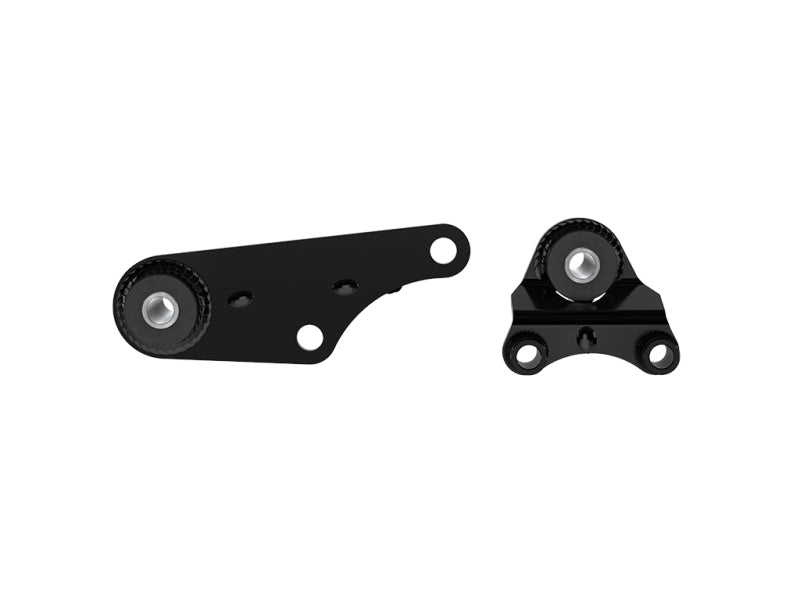

• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models

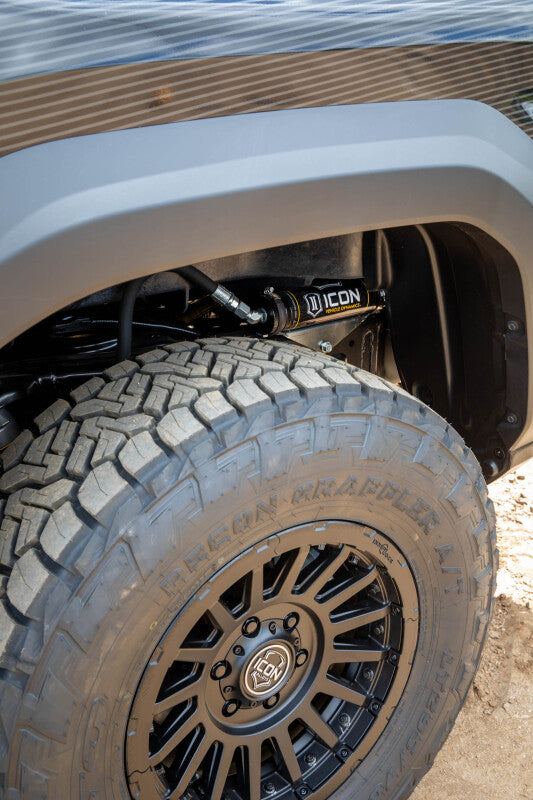

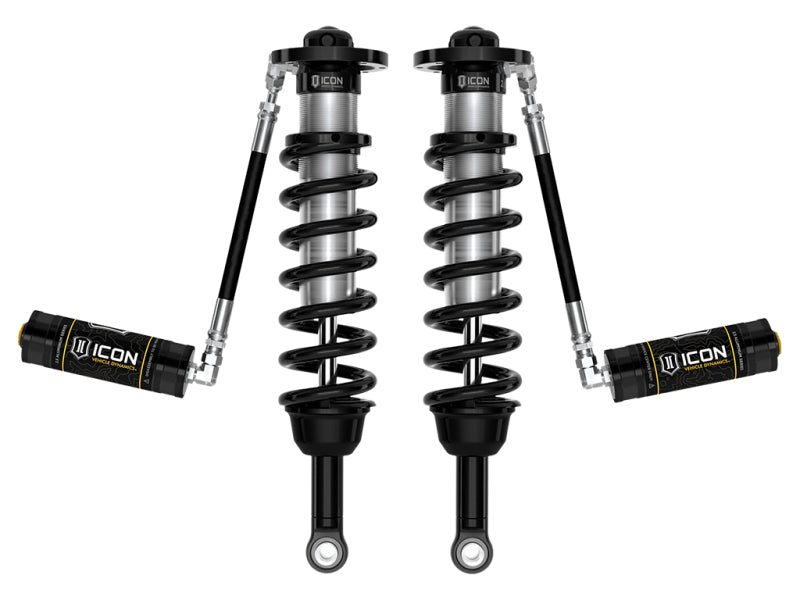

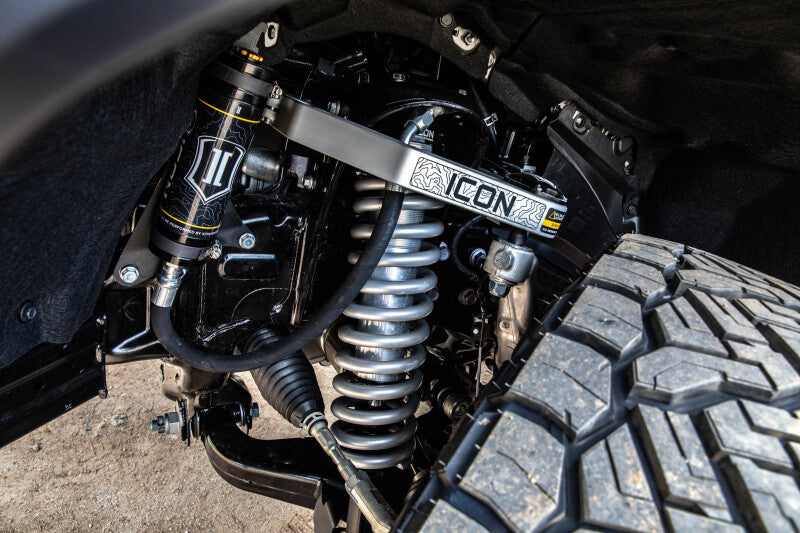

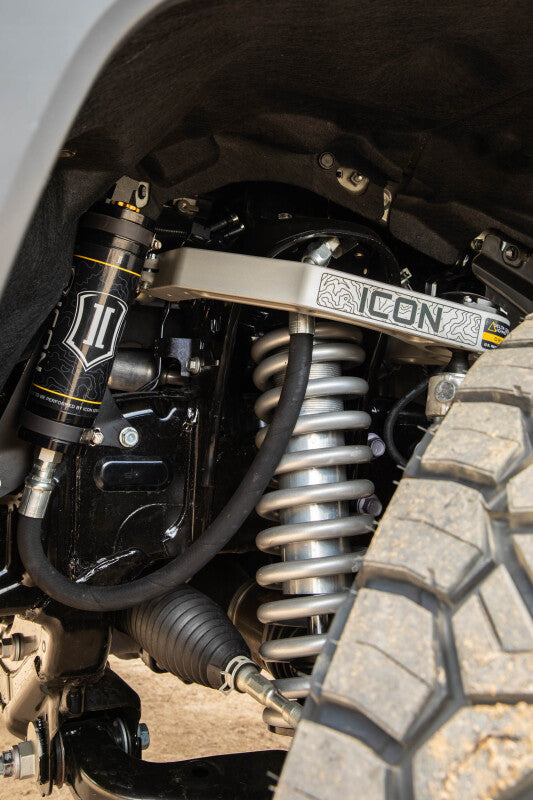

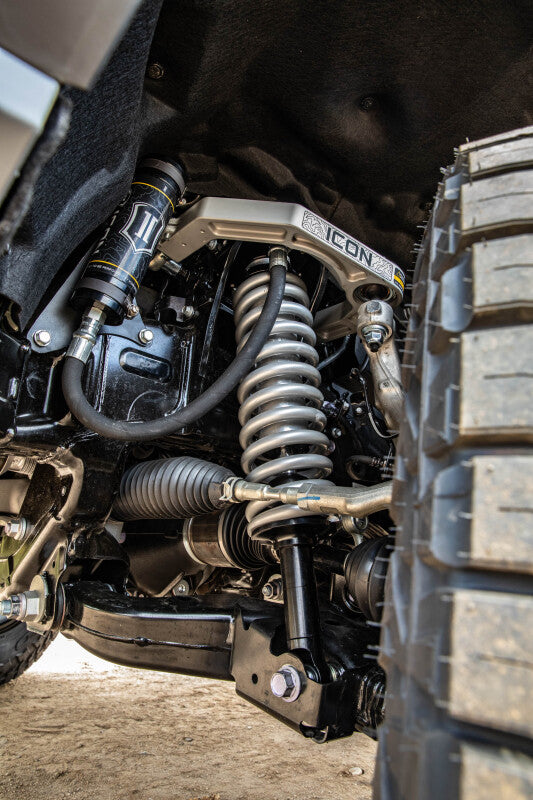

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

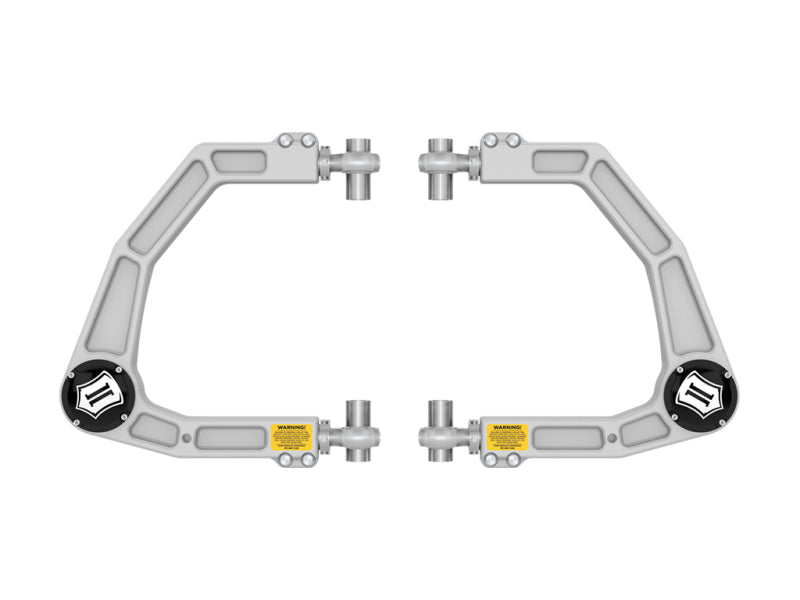

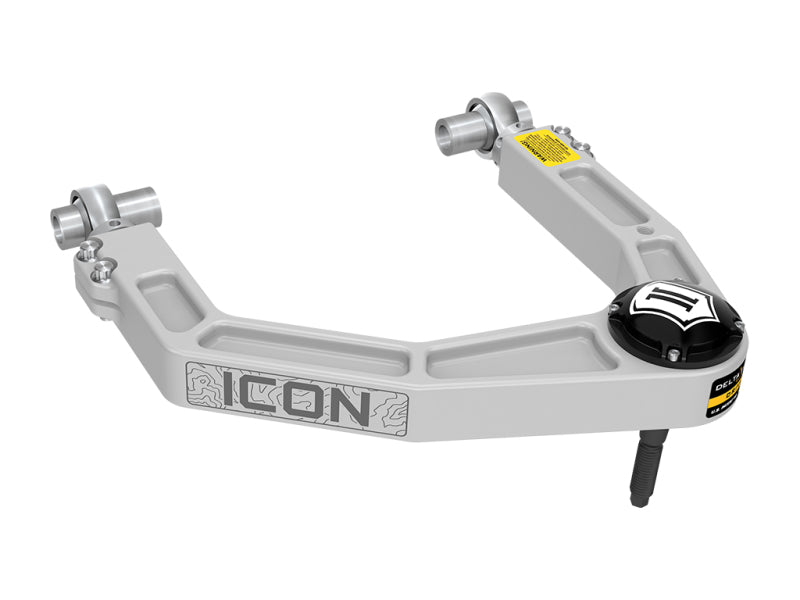

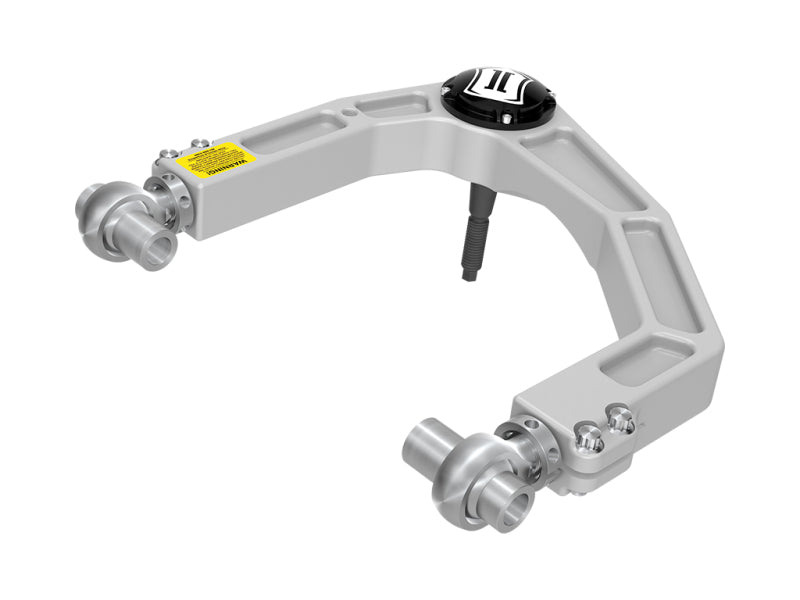

• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability

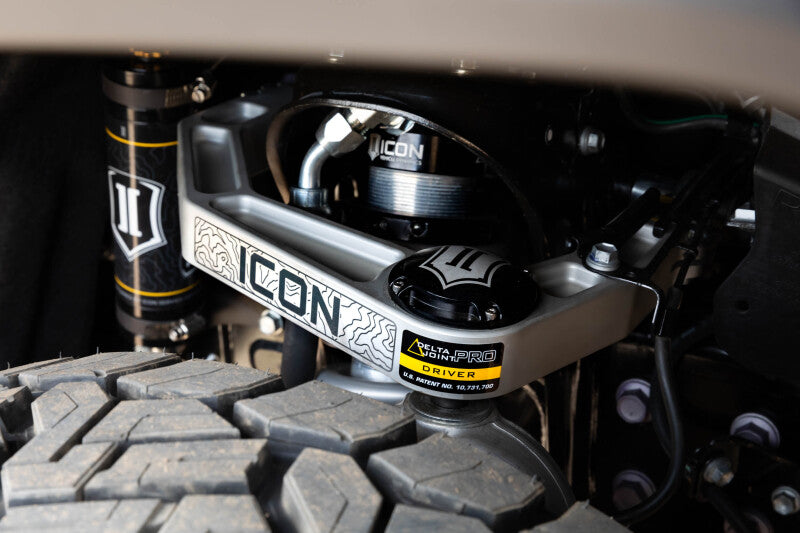

• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation


• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts


• FK Rod End bearings for extended longevity and minimal deflection


• Adjustable coilovers provide 1.25-3" front lift height over stock


• Increased wheel travel and improved ride quality over stock


• 6061 aircraft grade aluminum CNC machined components


• ICON engineered coil springs
