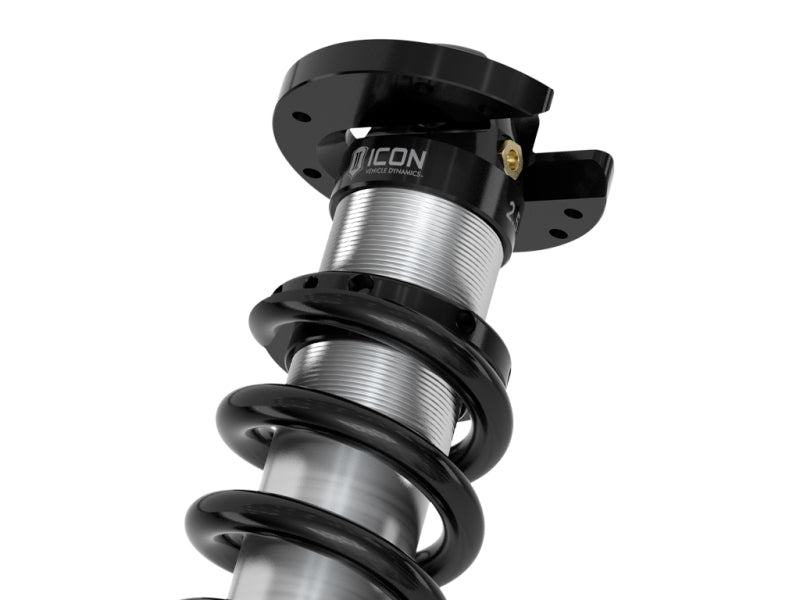

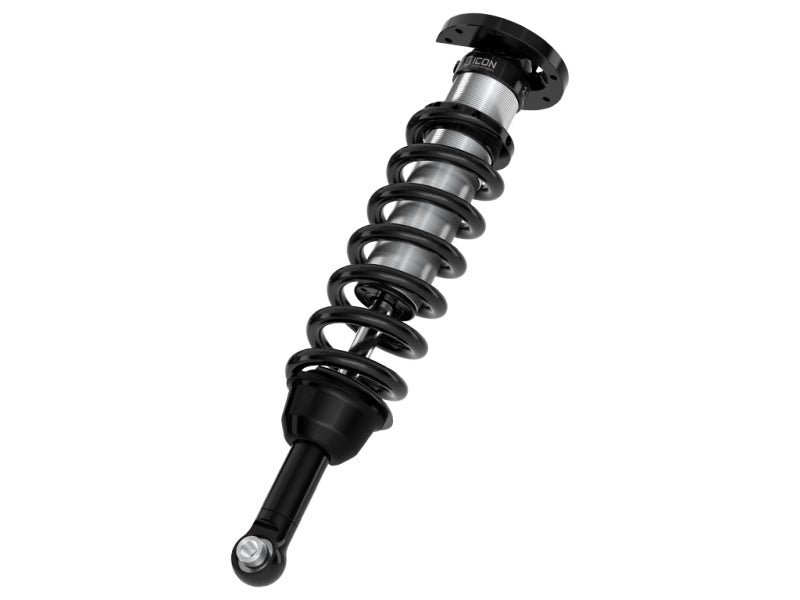

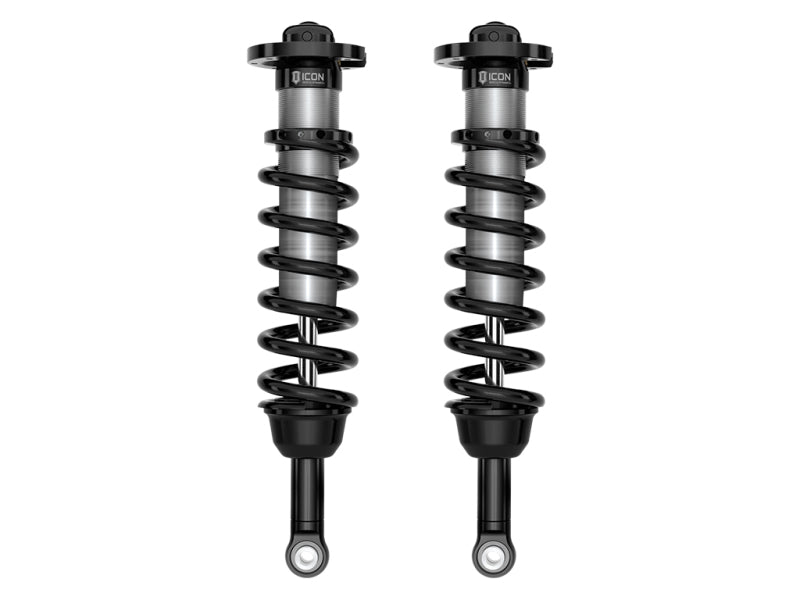

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2025 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop on 4WD models, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 6th Gen Toyota 4Runner.
ICON 2.5 Series front coilover shocks are an incredible upgrade for the 2025 Toyota 4Runner. These adjustable coilovers allow up 1.25-3” of lift with vehicle-specific shock length and valving for superior ride quality and performance.
APPLICATION NOTE #233: Length optimized for 4WD models but will also fit 2WD. Alternatively, for maximum wheel travel on 2WD models consider 2WD specific part numbers.

• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock


• Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel


• 2.5" diameter shock bodies with internal reservoirs for consistent performance


• Height-adjustable coilovers offer 1.25-3" of lift height adjustment over stock


• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts


• FK rod end bearings for extended longevity and minimal deflection


• 6061 Aircraft grade aluminum CNC machined components


• Fully rebuildable and re-tunable


• ICON engineered coil springs

Vehicle Fitment
