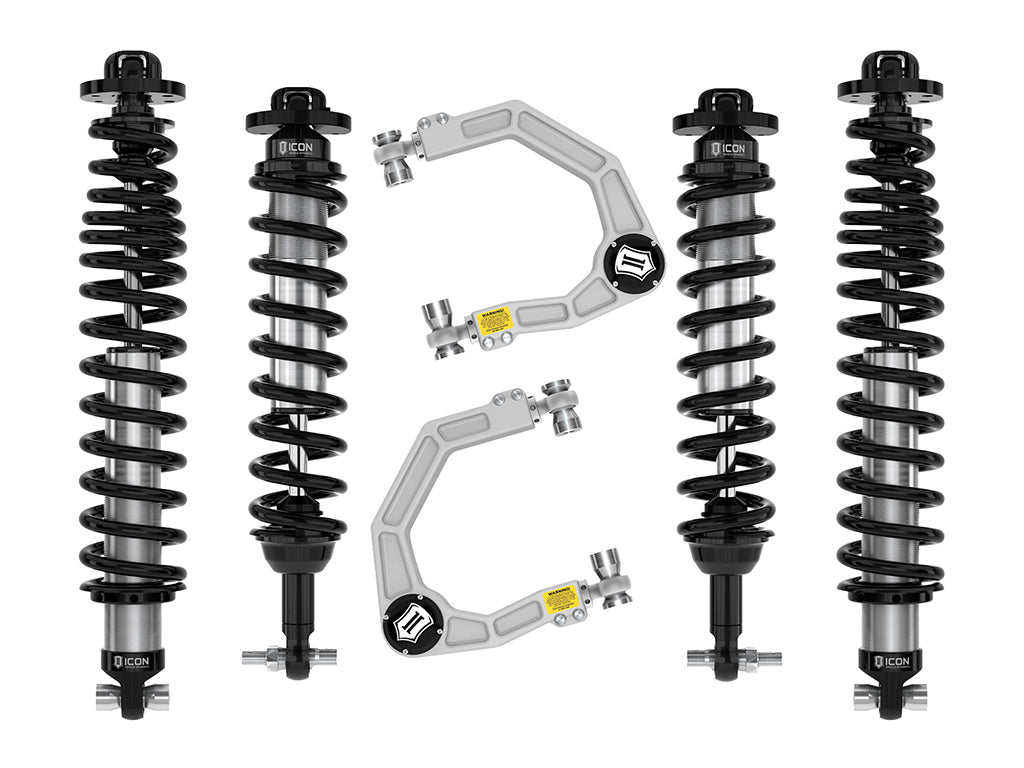

Kit includes

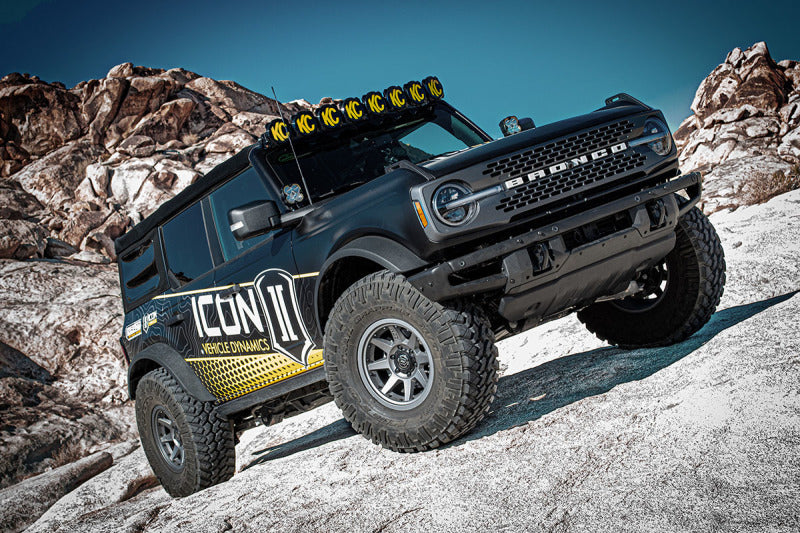

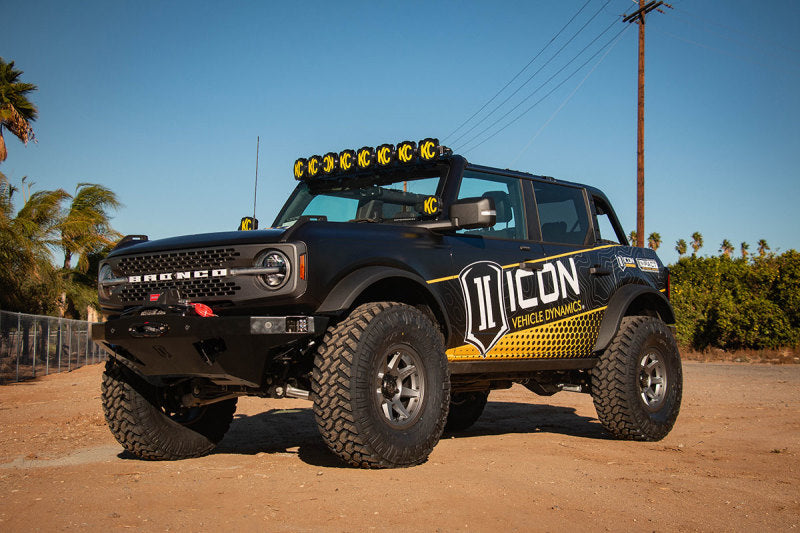

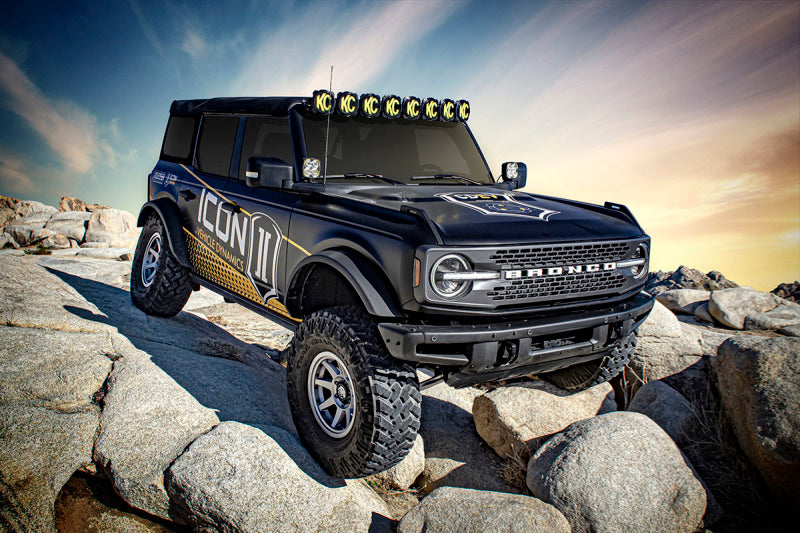

The ICON Vehicle Dynamics Stage 3 Suspension System for the 2021-UP Ford Bronco features our precision-manufactured, custom valved internal reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4” of front lift and 2-3” of rear lift over stock 4-door Broncos without the Sasquatch Package. To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 3 kit comes with Billet Aluminum Upper Control Arms which provide on-vehicle caster and camber adjustability and feature our patented Delta Joint PRO, which allows for up to 90-desgrees freedom of movement. The rear shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible. This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately). The factory crash bars on non-Sasquatch equipped Broncos must be removed to clear 35" and larger tires, but ICON now offers a replacement High Clearance Crash Bar set for those who would like to run larger tires and retain the functionality of the crash bars.
ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
TECH NOTE: Triple rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier equipped Broncos, consider part number K40003X.

• Adjustable coilovers yield up to 3-4" of front lift height and 2-3” of rear lift height over stock 4-door non-Sasquatch Broncos

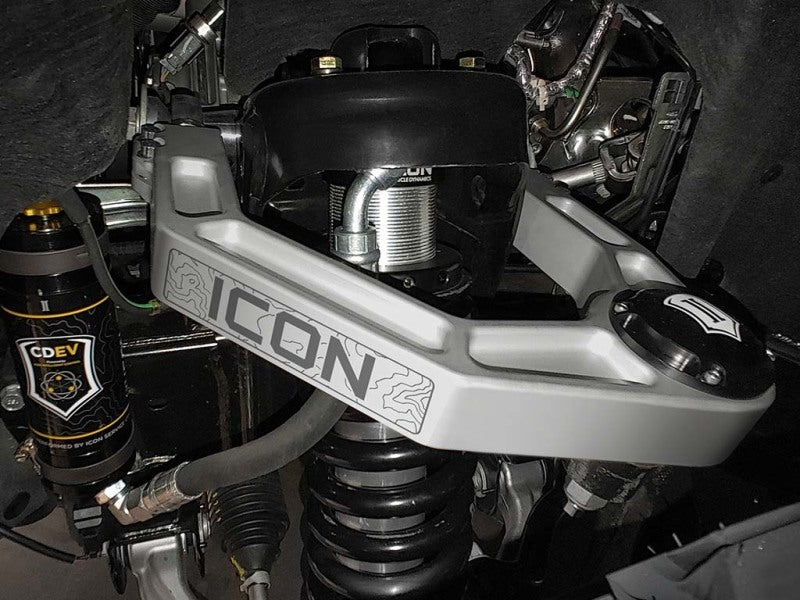

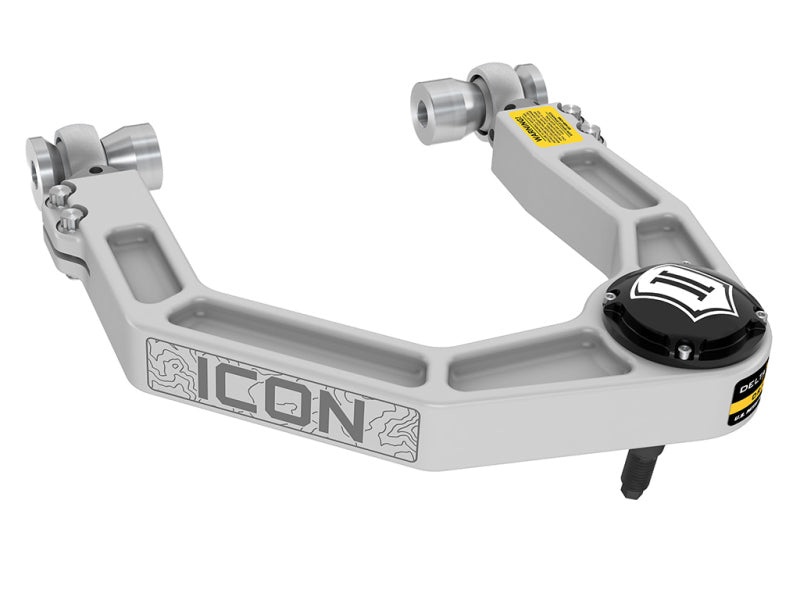

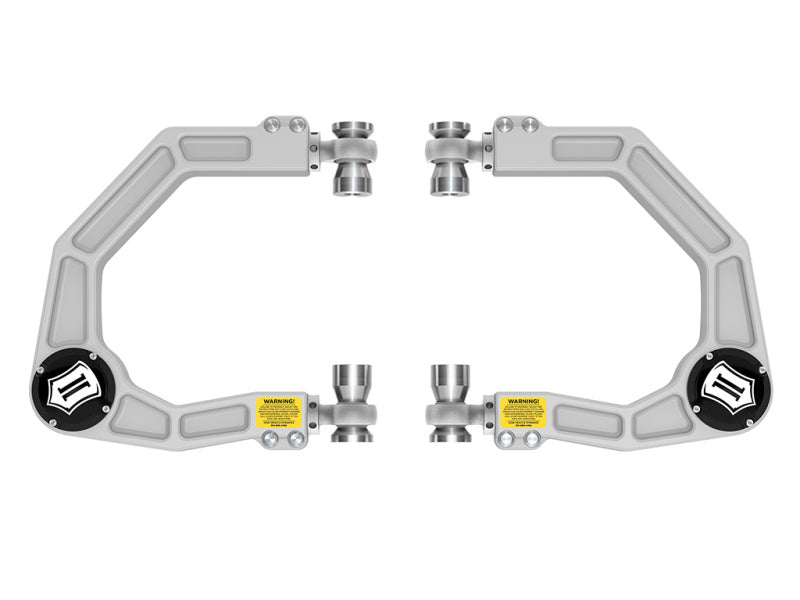

• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability

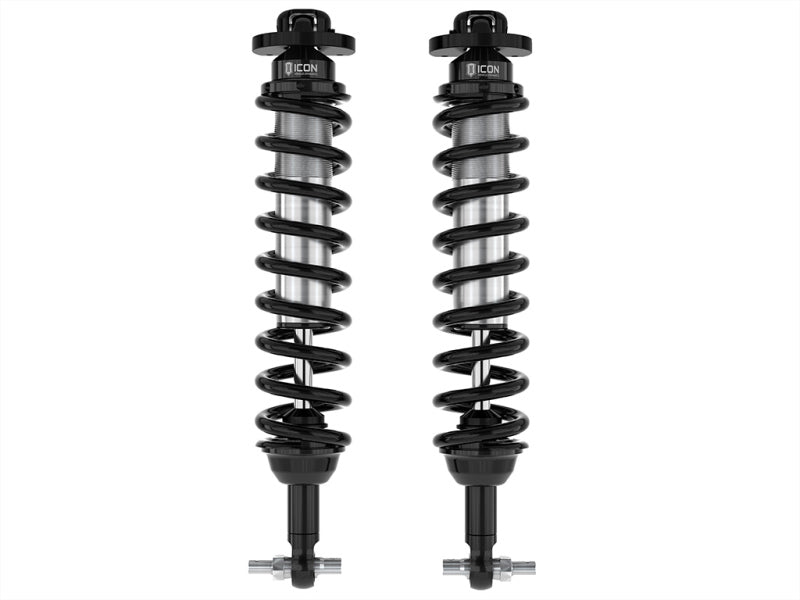

• Vehicle specific tuned internal reservoir front and rear shocks for superior damping and vehicle control


• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.


• Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts


• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

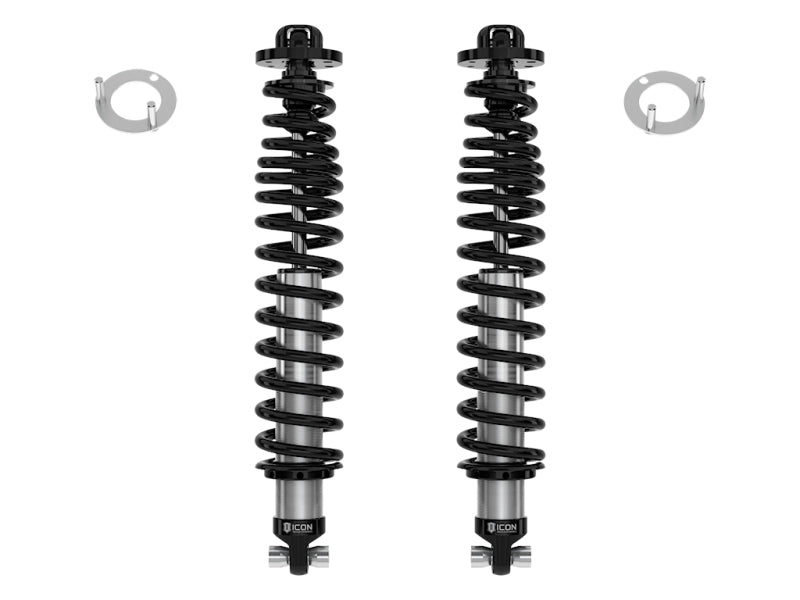

• ICON engineered coil springs featuring a unique triple rate rear coil design


• PTFE lined spherical bearings and application specific mounting hardware


• Up to 11.5" front / 14” rear wheel travel with 35” tire fitment


• Improved suspension performance and ride quality over stock


• 6061 Aircraft grade aluminum CNC machined components


• High strength alloy CNC machined lower bar pins

Fitment:
2021 Ford Bronco Base
2022 Ford Bronco Base
