Prepare for intense driving conditions with confidence, as the remote reservoirs significantly increase shock oil volume and heat dissipation surface area, resisting overheating and cavitation under aggressive use, preventing damper fade. Additionally, the ICON CDE Valve upgrade is included, providing easy ride tuning capabilities from inside your vehicle. The Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that regulates oil flow into the reservoir, reacting in less than 40ms to make accurate adjustments for varying terrain. The hydraulic circuits of CDEV are meticulously tailored per application, offering the highest resolution and dynamic range specific to your F-150 Lightning.

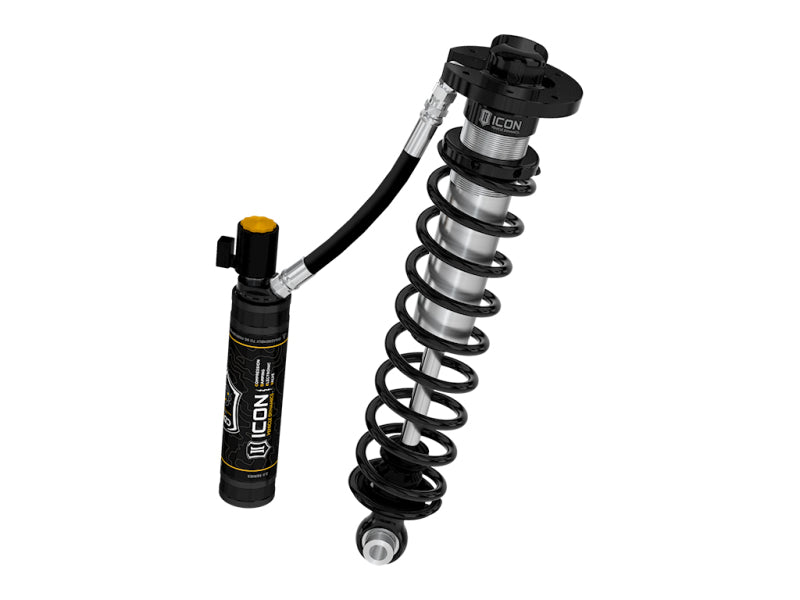

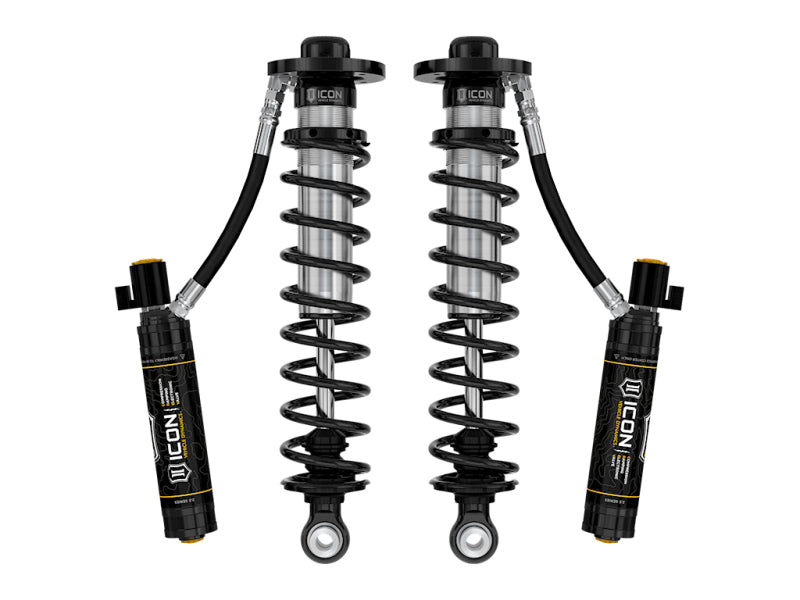

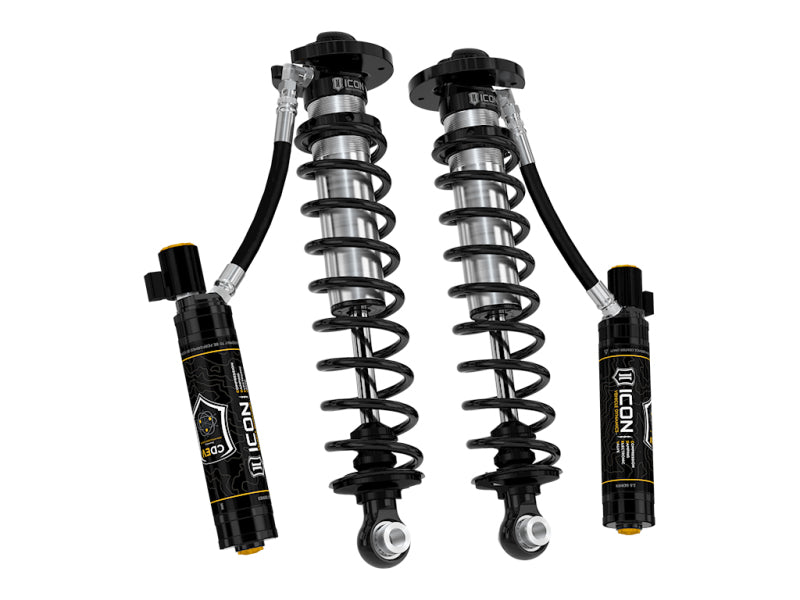

ICON’s vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance with a lowered stance.

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
• Vehicle specific tuned front shocks for superior shock damping and vehicle control
• ICON engineered coil springs with optimized spring rates for improved ride quality
• Remote reservoir to maintain cooler operating temperatures and house CDE Valves
• Height-adjustable coilovers offer 0-4" of lowered height adjustment
• FK Rod End bearings for extended longevity and minimal deflection
• 100% Bolt-on - no cutting or welding necessary for installation
• 6061 Aircraft grade aluminum CNC machined components
• Increased compression travel compared to stock
• Fully rebuildable and re-tunable
