Kit includes
| Qty |
Component |
Part # |
| 1× |
ICON 22+ Toyota Tundra Sway Bar Drop Kit |
ico55154 |
| 1× |

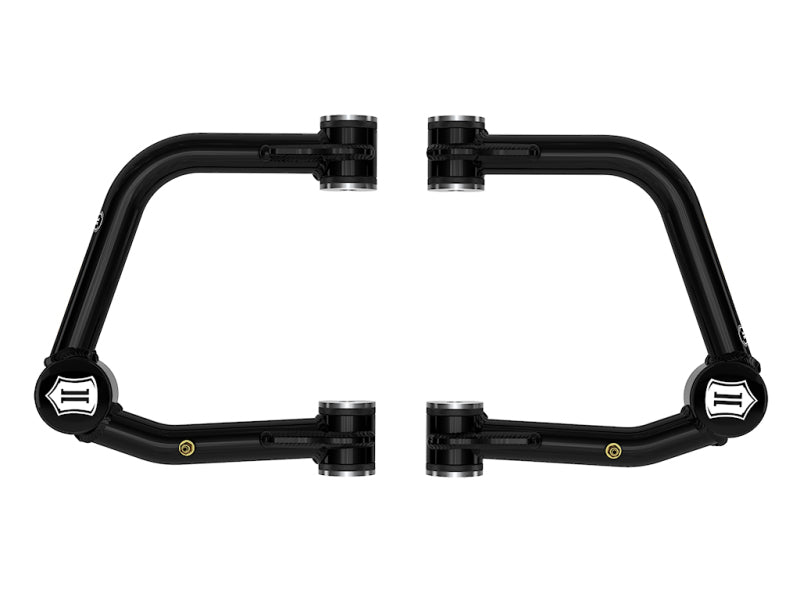

ICON 2022+ Toyota Tundra Tubular Upper Control Arm Delta Joint Pro Kit |
ico58461DJ |
| 1× |

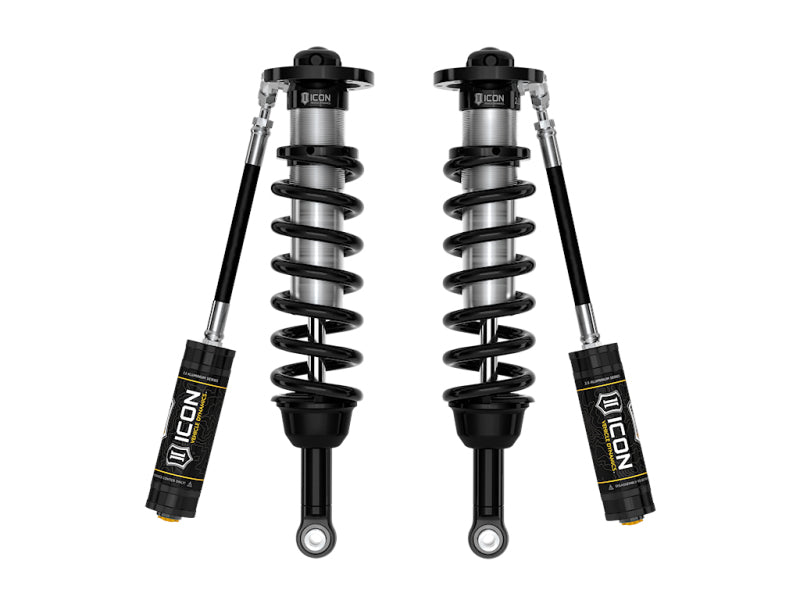

ICON 2022+ Toyota Tundra 2.5 Series VS RR Coilover Kit |
ico58770 |
| 1× |

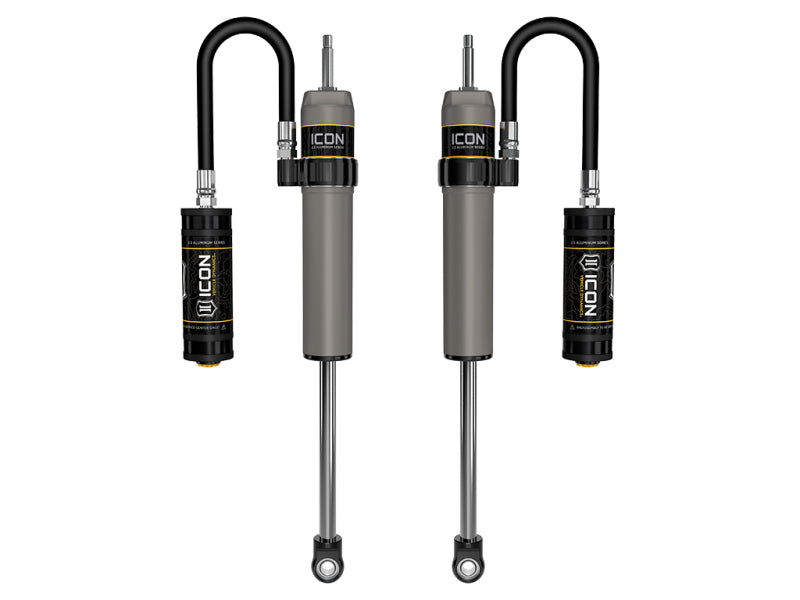

ICON 2022+ Toyota Tundra 0-1in Rear 2.5 Series Shocks VS RR - Pair |
ico57840P |
| 1× |

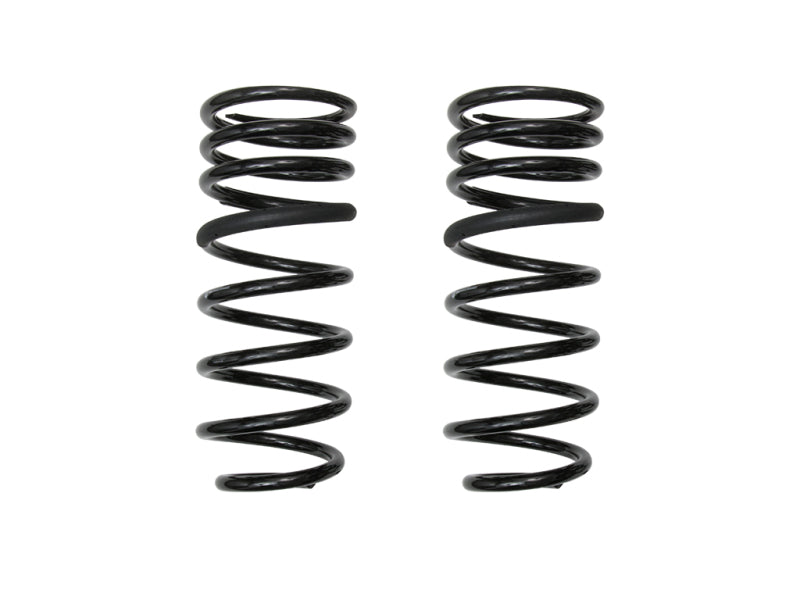

ICON 2023+ Toyota Sequoia 3in Dual Rate Rear Spring Kit |
ico51212 |
| 1× |

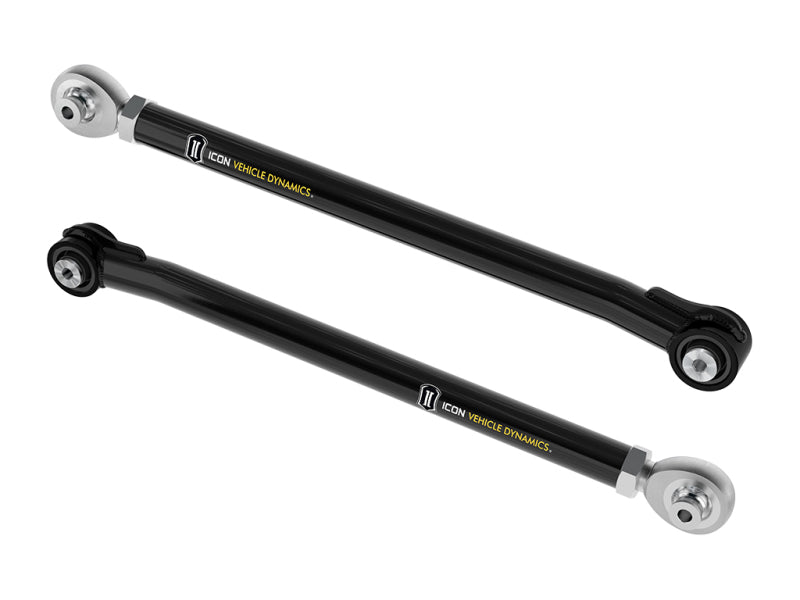

ICON 22-23 Tundra / 2023+ Sequoia/Tacoma Tubular Rear Lower Link Kit |
ico54002T |

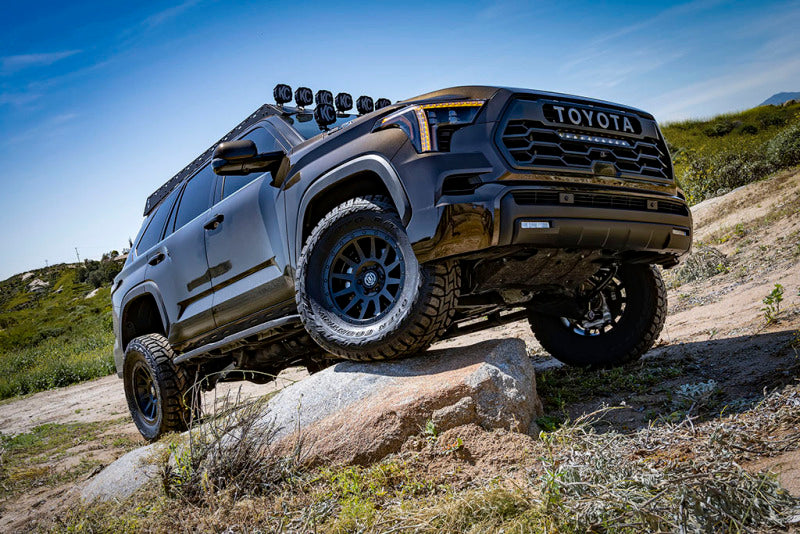

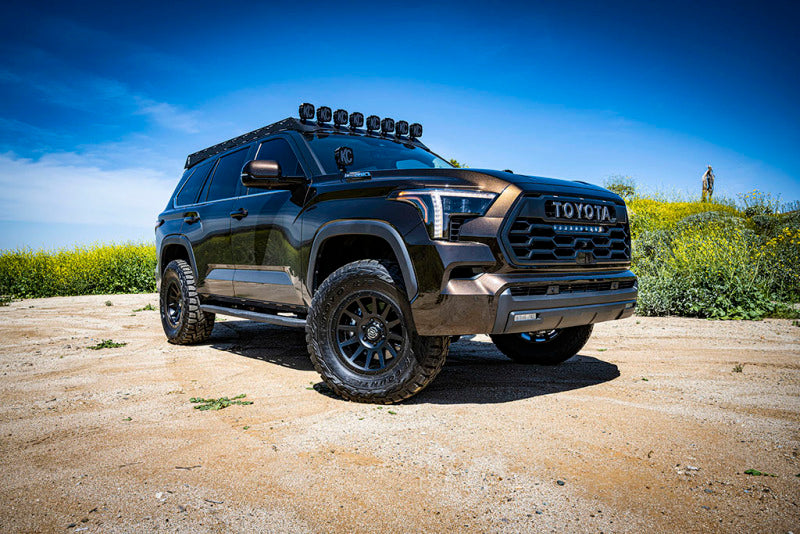

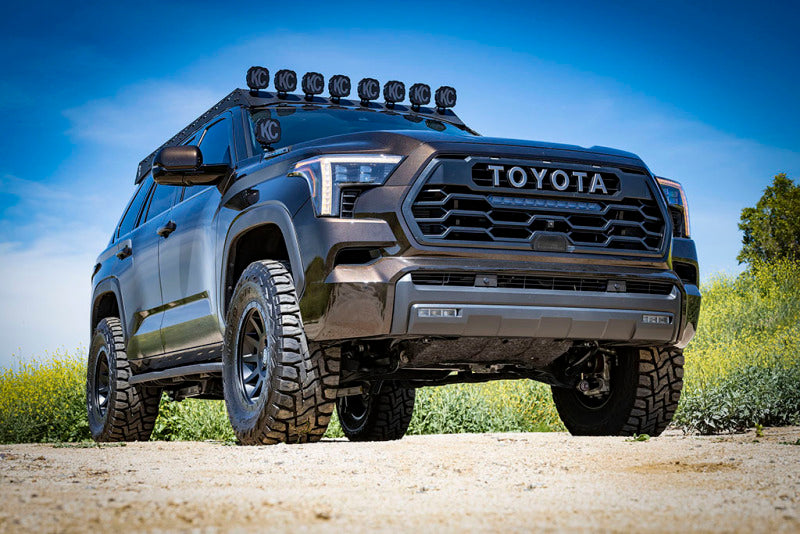

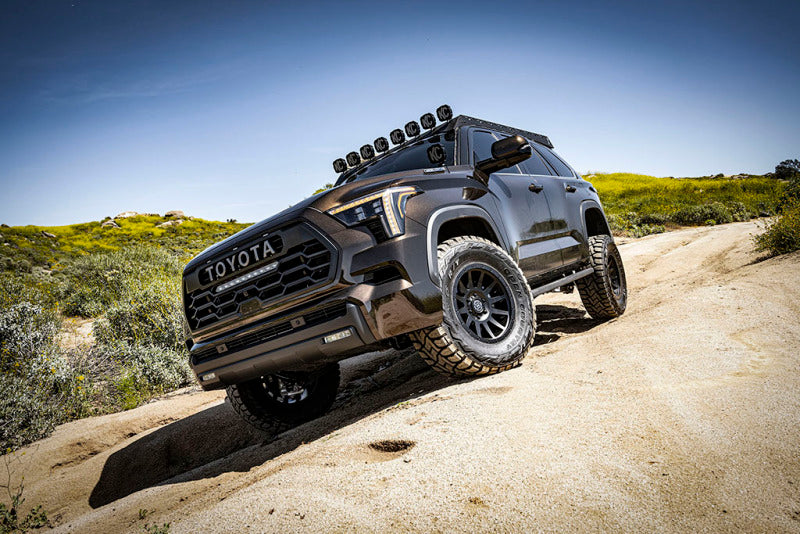

The ICON Vehicle Dynamics Stage 8 complete suspension system for the 2023-2026 Toyota Sequoia helps to free up the rear suspension movement while gaining strength and ground clearance with the addition of ICON billet aluminum rear lower links. This system offers improved on- and off-road performance, with significantly increased rear shock performance and heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the billet aluminum rear lower links, a 2.5 Series remote reservoir front coilover shock and tubular steel front upper control arm combo is included along with a front sway bar drop kit, dual rate rear coil springs and 2.5 Aluminum Series rear remote reservoir shocks.
Stage 8 includes 2.5 Series remote reservoir coilovers for 3-4.5” of front lift, greater performance, and 35” tire fitment. ICON UCAs and links correct alignment while rear coils with 2.5 Series remote res rear shocks balance the tuning.
- Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package

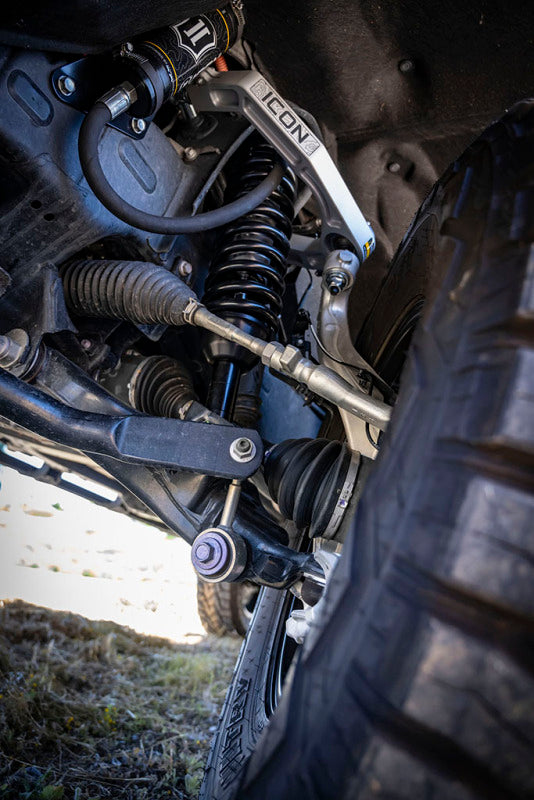

- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Tubular UCAs for added strength, durability, and alignment correction for better drivability

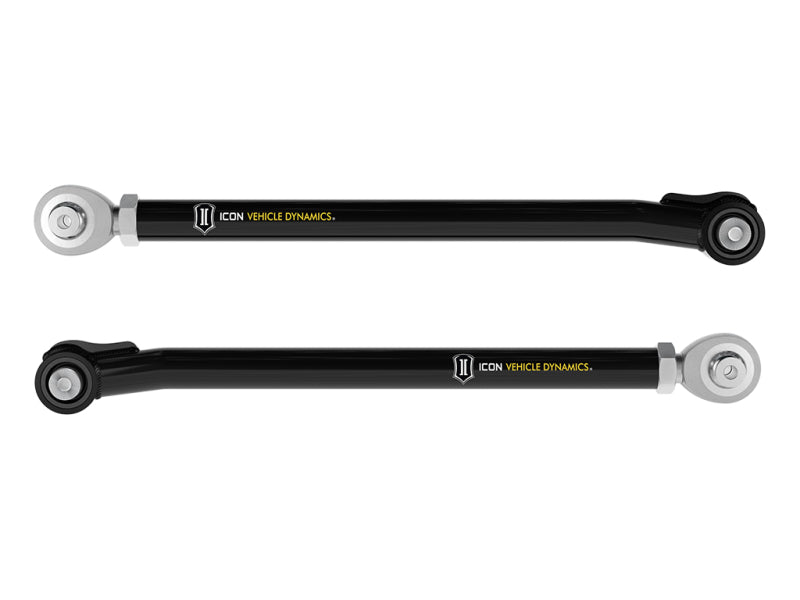

- Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
- Adjustable front ride heights from 3-4.5” of front lift over stock

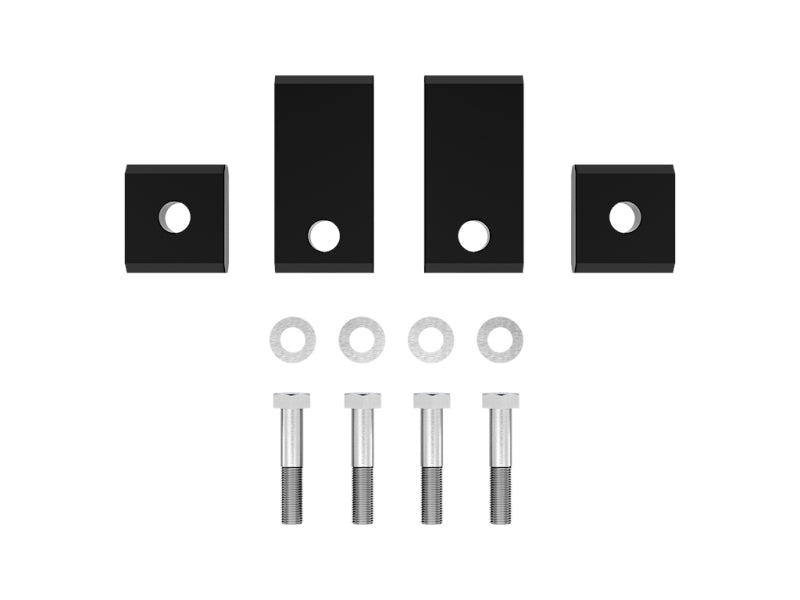

- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- All ICON shock absorbers are fully rebuildable and re-tunable
- Vehicle specific design for 2023-2026 Toyota Sequoia
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Carb Acknowledgement Required: false |
| Ltl Freight Required: false |
| Prop 65: Unknown |
| Part Type: automotive |
| Epa: N/A |
| Regular Stock: false |
| Units Per Sku: 1 |
