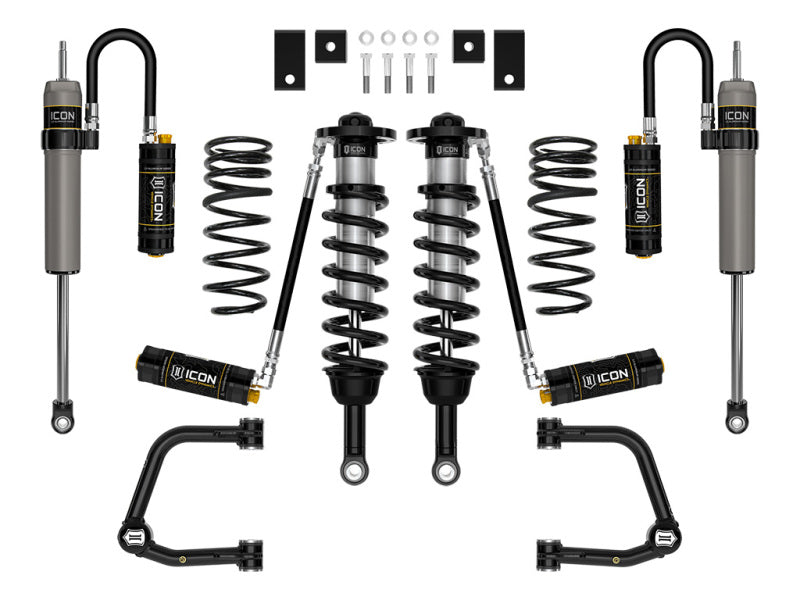

Kit includes
This Stage 9 system features the 2023-2026 Toyota Sequoia VS 2.5 Series remote reservoir front coilovers equipped with CDC Valves. These adjustable coilovers allow up to 3-4.5” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Stage 9 includes 2.5 Series CDCV remote reservoir coilovers for 3-4.5” of front lift, greater performance, and 35” tire fitment. UCAs provide alignment correction and rear coils with 2.5 Series remote CDCV rear shocks balance the tuning.

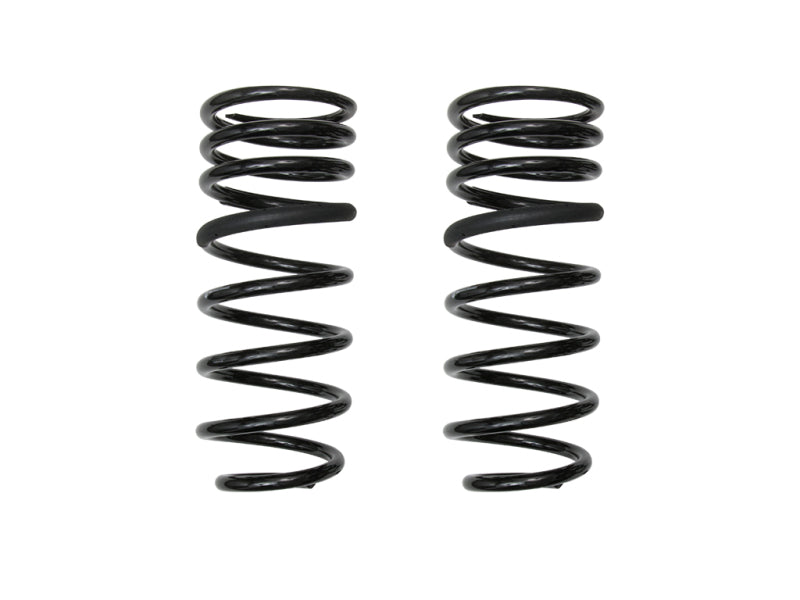

- Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package

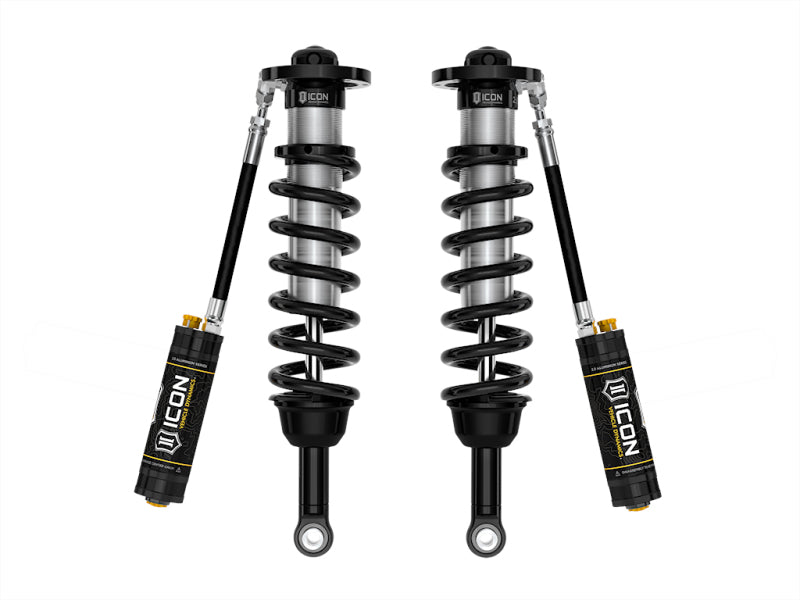

- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard

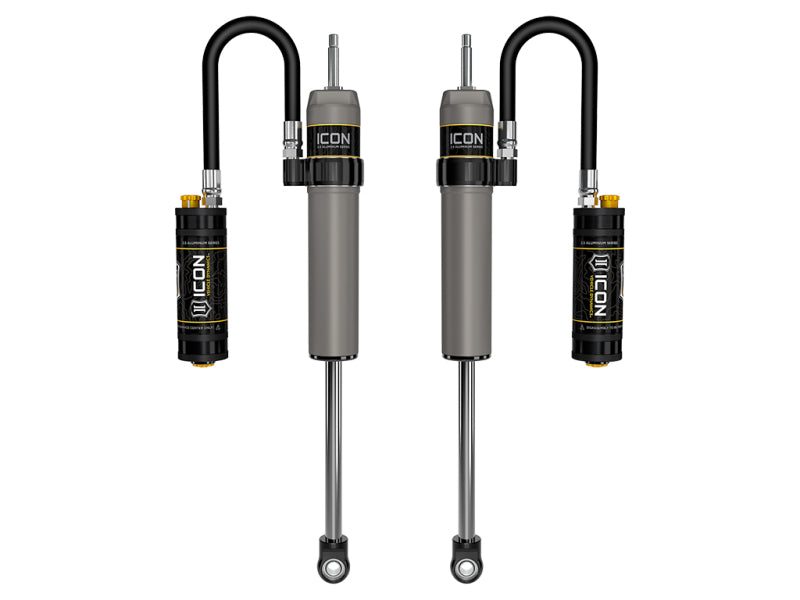

- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers

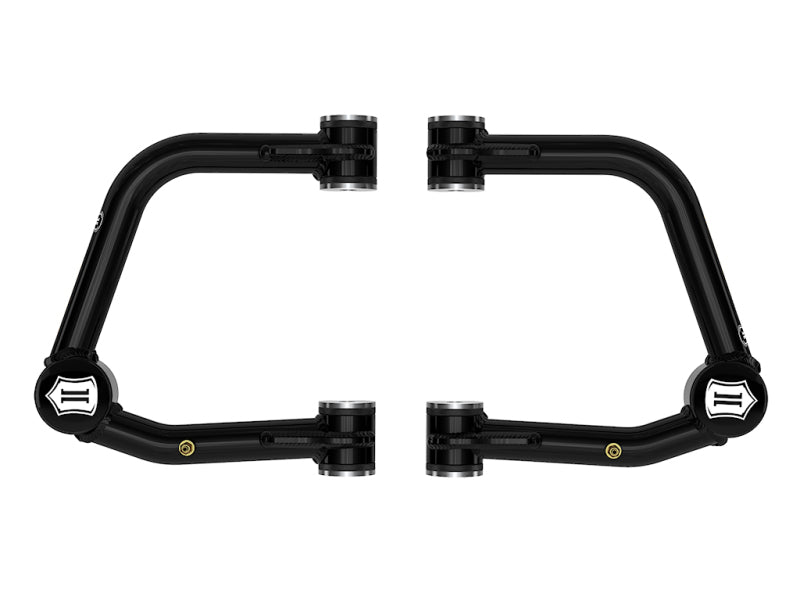

- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- Adjustable front ride heights from 3-4.5” of front lift over stock

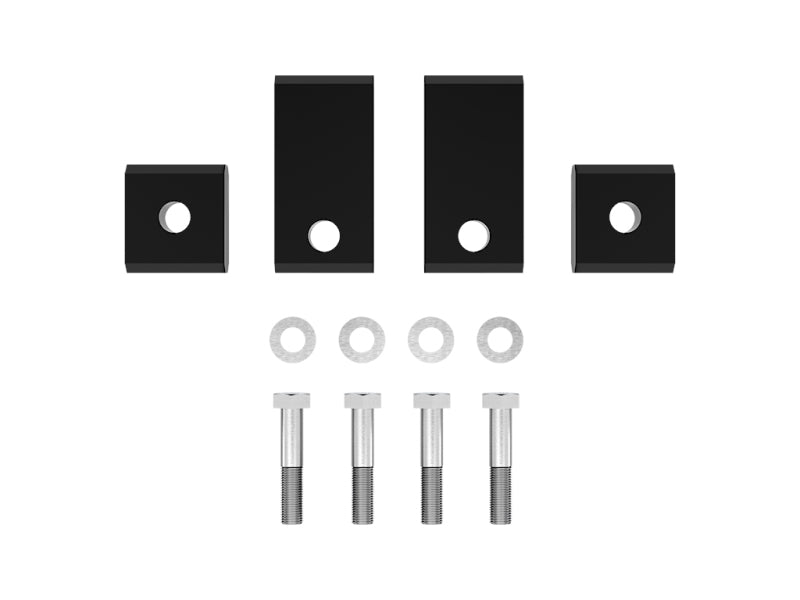

- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- All ICON shock absorbers are fully rebuildable and re-tunable
- Vehicle specific design for 2023-2026 Toyota Sequoia
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Carb Acknowledgement Required: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Regular Stock: true |
| Units Per Sku: 1 |
