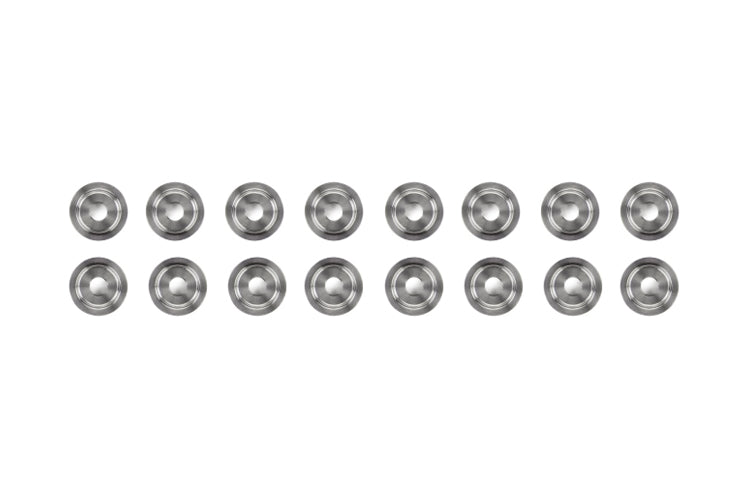

Manley Valve Spring Retainers are engineered using finite element analysis and CNC machined to exacting tolerances to deliver unmatched strength and performance. These retainers reduce valvetrain mass, improve RPM potential, and ensure superior valve control in the most demanding racing applications.
Height: +.070 in. - Spring Diameter: 1.013 in. - Valve Stem Diameter: 6mm - Weight: 5.0 grams
- CAD designed for ultimate reduction in mass without sacrificing strength
- Use Manley P/N 13098 (recommended) or factory Chevrolet LT valve locks
- Sames as 23625 but +.045" more installed height
- Special 6AL-4V titanium for maximum strength
- Must use 7 valve locks
Vehicle Fitment
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Carb Acknowledgement Required: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Regular Stock: false |
| Units Per Sku: 1 |
