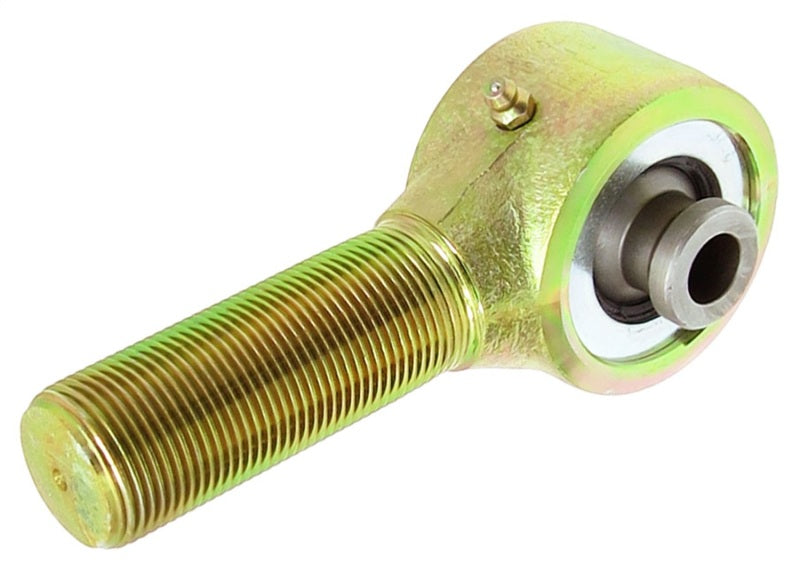

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is designed to fit the frame side of the 2021 and up Broncos rear control arms and feature a narrow 2 1/2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 1 1/4 in.-12 left hand threads on the shank, and a 74mm mounting width ball with a 16mm thru bolt hole. Finished in gold zinc plating.
Johnny Joint® Rod End; 2.5 in.; Narrow Forged; 1.25 in.-12 LH Threads; 74mm x 16mm Ball;
Fitment:
2021 Ford Bronco Johnny Joint 2 1
2022 Ford Bronco Johnny Joint 2 1
2023 Ford Bronco Johnny Joint 2 1
2024 Ford Bronco Johnny Joint 2 1
2025 Ford Bronco Johnny Joint 2 1
2026 Ford Bronco Johnny Joint 2 1
2027 Ford Bronco Johnny Joint 2 1
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Carb Acknowledgement Required: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Regular Stock: false |
| Units Per Sku: 1 |
