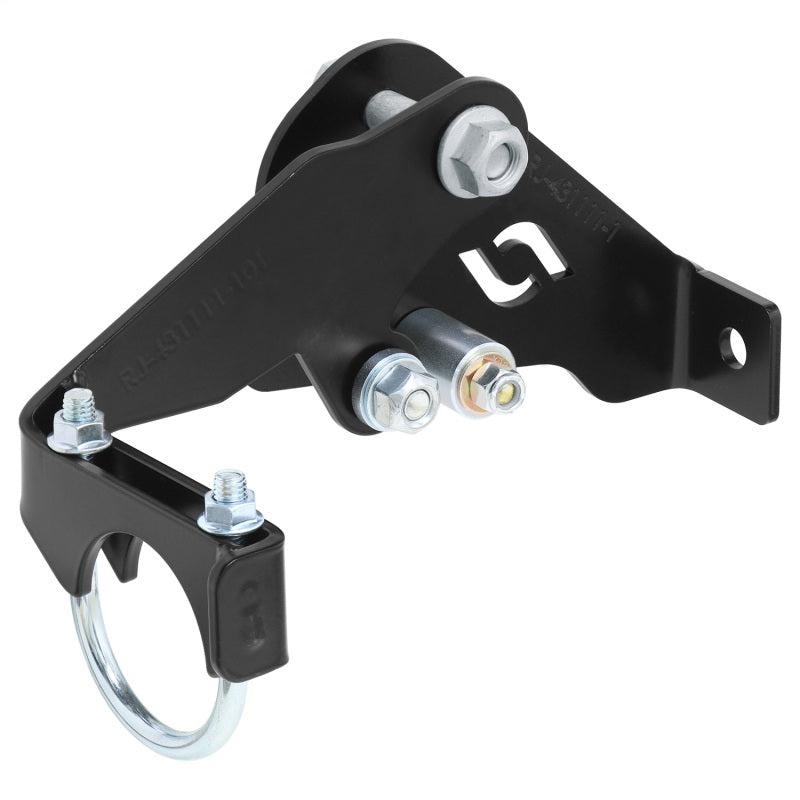

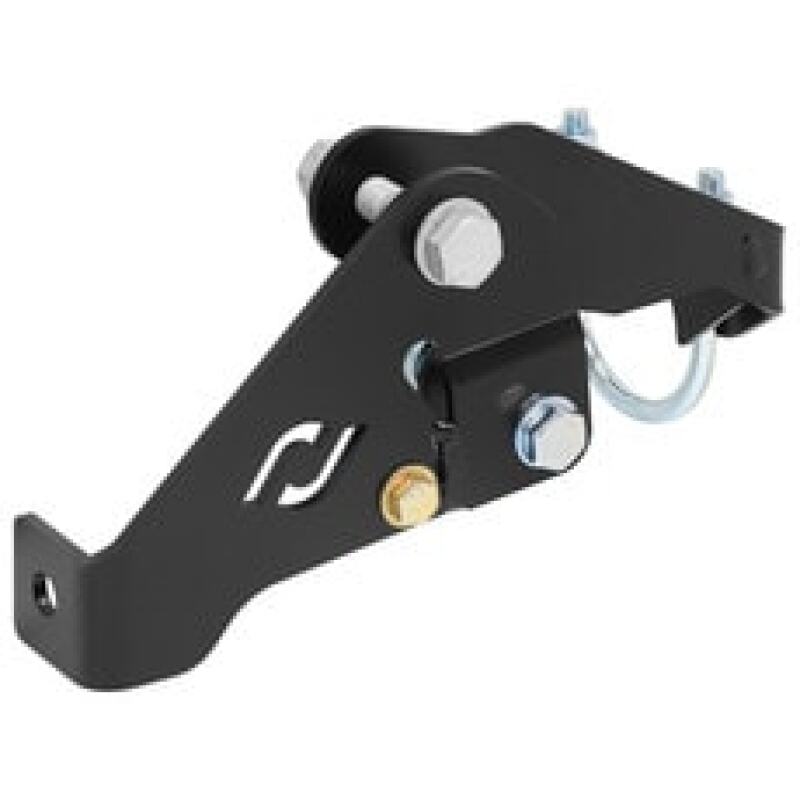

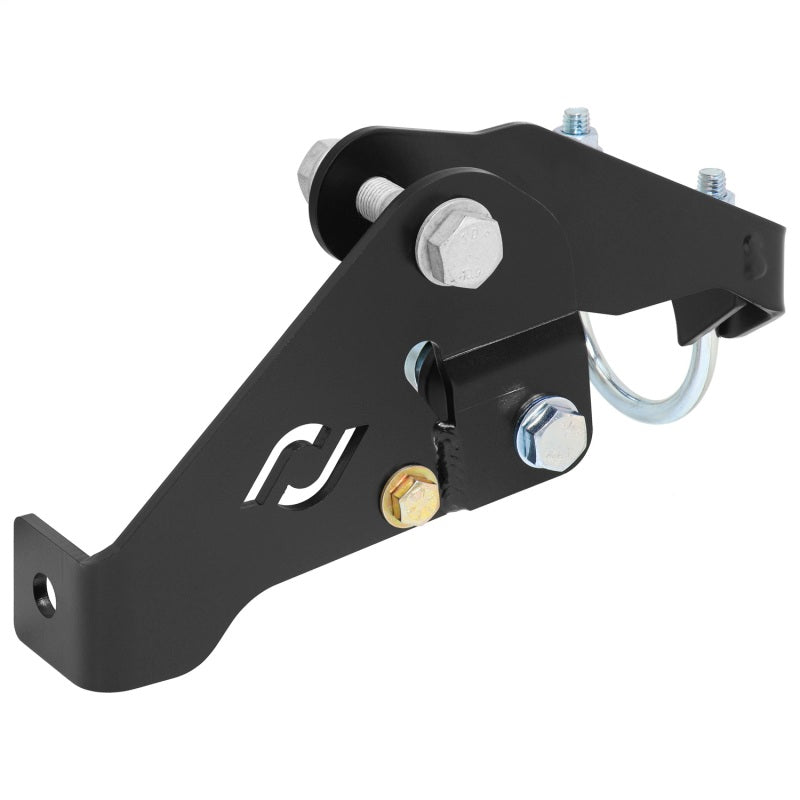

RockJocks Trac Bar Relocation and Steering Stabilizer Mount Axle Bracket Kit for JK Wrangler and Unlimited vehicles is designed specifically to be used in conjunction with our High Steer Knuckles. Given the dramatic changes in geometry high steer knuckles impose, this axle bracket easily bolts on to your factory axle and provides you with geometry correction and more up-travel by accepting the longer RockJock JL/JT Trac Bar as well moving the Trac Bars mounting point up 2 in. to prevent bump steer. The stabilizer shock mount portion of the bracket gives you a dramatically raised, easy bolt-up anchor point for a JL/JT spec. steering stabilizer shock (allows for more steering radius), that sets the shock at a considerably higher position than stock, to correct its geometery and protect it from rocks! We recommend buying this bracket in our complete RJ-430001-103 High Steer Knuckle Kit so that you are ensured a complete system that includes everything you need to get the job done. Use of their RJ-107101-101 adjustable front bump stop kit is strongly encouraged to allow for maximum up-travel, as engineered.

Currectlync® High Steer Kit; Incl. Trac Bar Relocation And Steering Stabilizer Shock Mount Axle Bracket For Use w/JL/JT Trac Bar;

• This Kit Requires The Use Of Either A Factory JL/JT Stabilizer Shock Or Specifically Bilstein B8 5100 Series Stock
• For A Successful Finished Install Of This Kit; We Recommend The Use Of Our RJ-441002-101 Tie Rod Clamp Bracket
• This Bracket Does Not Work With Twin Tube And Thru-Rod Dampers As They Will Intersect With Other Components
• Moves Stock Steering Stabilizer Shock Mounting Point Upward For Correct; Matched Geometry To The Tie
• For Use On Any Factory JK Front Differential [Dana 30 Or 44] In Conjunction With Our High Steer Kit
• We Recommend Buying This Bracket Kit In Our Complete RJ-430001-103 High Steer Knuckle Kit
• For Use In Conjunction With Our RJ-441002-101 Stabilizer Shock Tie Rod Clamp Bracket Kit
• With Regards To Differential Cover Clearance; This System Clears Fine With An OEM Cover
• Incl. All Necessary Hardware And Step-By-Step Instructions
• Relocates Trac Bar Mounting Hole 2 in. Higher Than Stock
• Incl. Trac Bar And Stabilizer Shock Relocation Bracket
