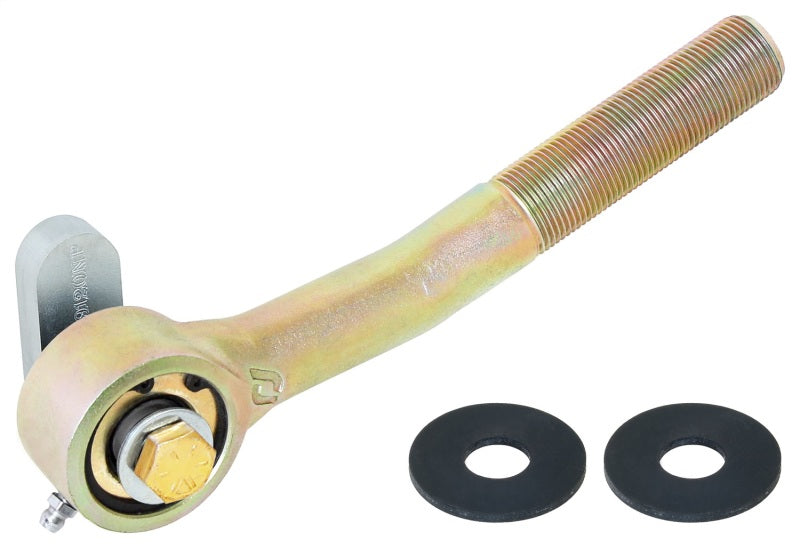

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, narrow body and features a 9 in. long shank, from CL of joint to end of tip of threads), 3 1/2 in. of 1 in.-14 RH threads and a 1.600 in. wide x .510 in. thru-hole center pivot ball. Being that, in our applications, we use this specific joint in TJ, LJ, XJ, MJ and XJ front trac bars, the shank portion features a 12 degree vertical bend, 3 1/2 in. from the joint Cl, as seen in the photo, making it specific to fitment in this application. Finish is gold zinc plating. RockJock Forged Johnny Joint Rod Ends are found incorporated into our suspension kits and components, but are also available individually for universal usage when custom suspension is being fabricated. Joint is externally greasable via a zerk fitting. Finish is gold zinc plating.
Johnny Joint® Rod End; 2 in.; Narrow Forged; Long Shank Bent Front Trac Bar; 1 in.-14 RH Threads; 1.600 in. x .510 in. Ball;
Fitment:
1984 Jeep Cherokee XJ
1985 Jeep Cherokee XJ
1986 Jeep Cherokee XJ
1987 Jeep Cherokee XJ
1988 Jeep Cherokee XJ
1989 Jeep Cherokee XJ
1990 Jeep Cherokee XJ
1991 Jeep Cherokee XJ
1992 Jeep Cherokee XJ
1993 Jeep Cherokee XJ
1993 Jeep Grand Cherokee ZJ
1994 Jeep Cherokee XJ
1994 Jeep Grand Cherokee ZJ
1995 Jeep Cherokee XJ
1995 Jeep Grand Cherokee ZJ
1996 Jeep Cherokee XJ
1996 Jeep Grand Cherokee ZJ
1997 Jeep Cherokee XJ
1997 Jeep Grand Cherokee ZJ
1997 Jeep Wrangler TJ
1998 Jeep Cherokee XJ
1998 Jeep Grand Cherokee ZJ
1998 Jeep Wrangler TJ
1999 Jeep Cherokee XJ
1999 Jeep Wrangler TJ
2000 Jeep Cherokee XJ
2000 Jeep Wrangler TJ
2001 Jeep Cherokee XJ
2001 Jeep Wrangler TJ
2002 Jeep Wrangler TJ
2003 Jeep Wrangler TJ
2004 Jeep Wrangler TJ
2005 Jeep Wrangler TJ
2006 Jeep Wrangler TJ
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Carb Acknowledgement Required: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Regular Stock: false |
| Units Per Sku: 1 |
