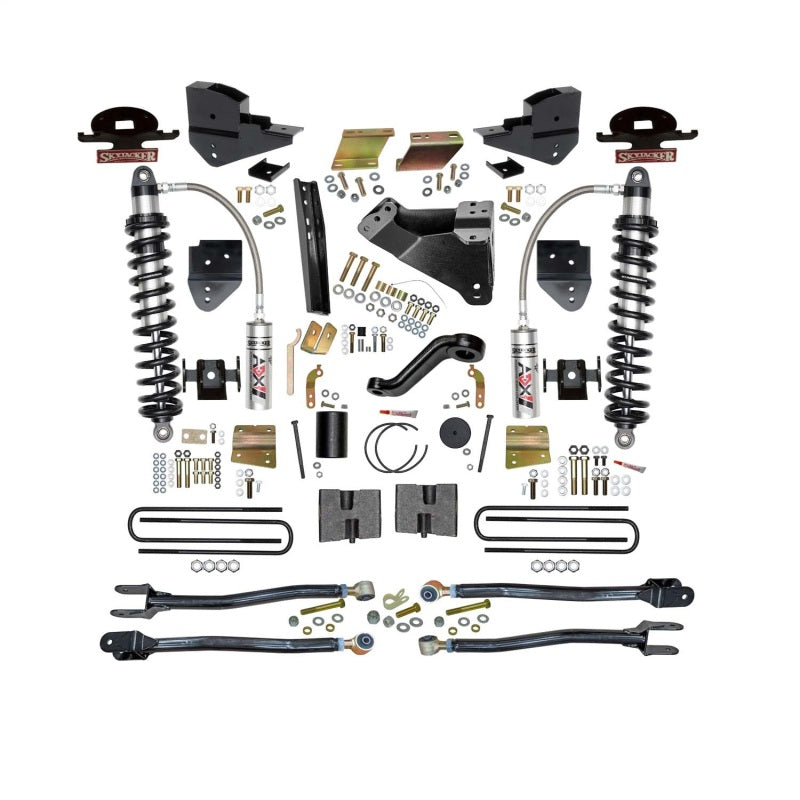

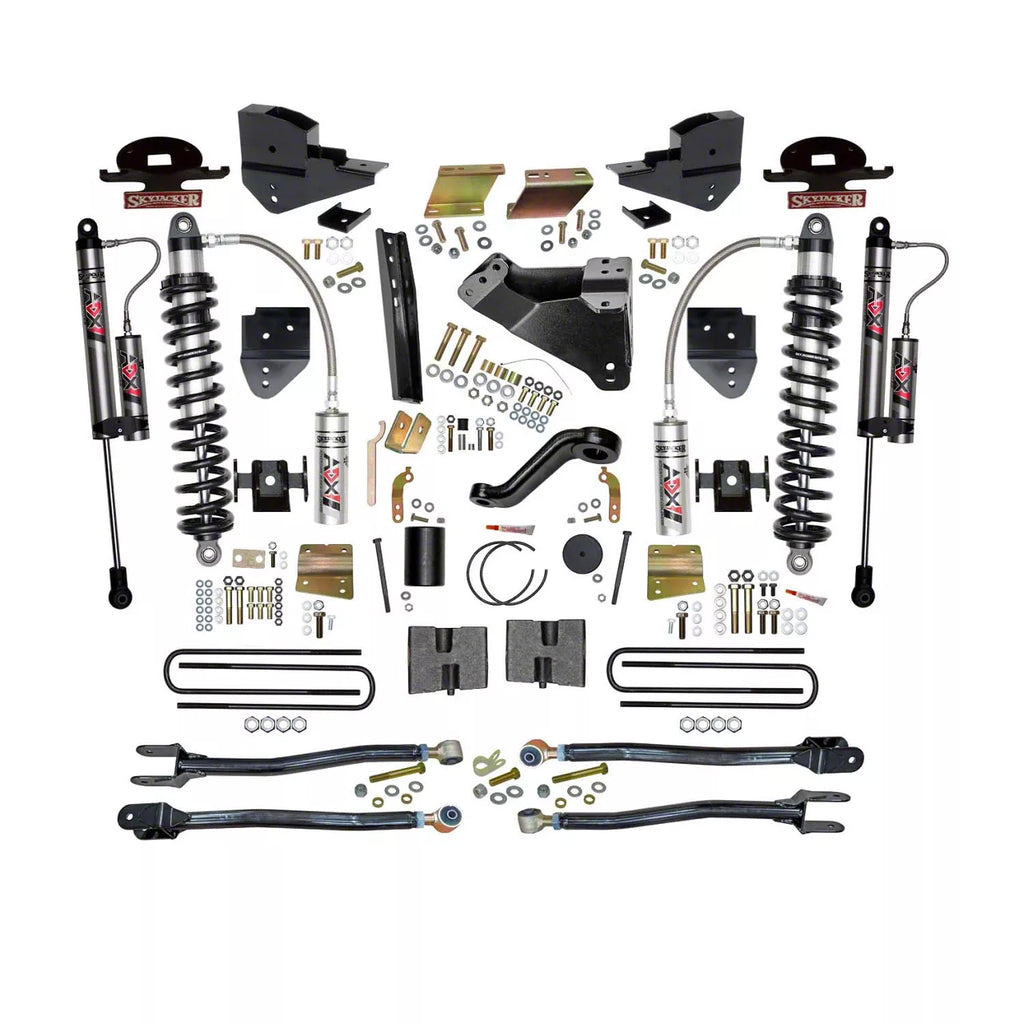

If you think that your Ford looks equally good clean as it does covered in off-road grime. You need to take your Super Duty to the next level. With Skyjacker's Coilover 6 in. lift kit, you can reap the benefits of On-Road Refinement and Off-Road Readiness. 2.5-inch OD ADX 2.5 Adventure Series Aluminum Coilover Shocks with remote reservoir includes Skyjacker's legendary Softride(R) coil spring technology engineered to deliver a quiet consistent controlled stability and smooth riding comfort. Precise CNC laser cut and precision formed in CNC press brake, all bracketry for coilover shock / reservoir mounts connect to / around OEM mounts. Formed from 2-inch OD x 0.188 wall DOM tubing, both pairs of control arms are adjustable Flex Links. The adjustability allows proper caster settings to improve handling. Flex Links have a forked clevis end at the lower axle mount. The upper bracket mount has 1-1/4 in. forged rod end with Rubber Encased bushing. Radius arm drop brackets lower the OEM radius arms mounts at the frame to maintain the correct caster specifications for proper alignment. An ultra heavy-duty track bar relocation bracket captures the front crossmember on both sides to prevent movement in this critical high-stress area and to keep the axle centered. The sway bar lowering brackets realign the front sway bar working angle to achieve maximum sway control. Drop spacers reposition the front bump stops. Front brake line extension brackets correctly reposition the brake lines. A heavy-duty steering stabilizer relocation bracket corrects and enforces the stabilizer connection. A 4.5-inch rear block and U-bolt kit delivers a more level stance. Together this complete kit maintains the factory geometry angles, alignment specifications and structural strength. Straightforward installation with step-by-step guide. Reap the benefits: On-Road Refinement and Off-Road Readiness. From higher speeds to a slow advance, this Coilover Shock Kit works.

23 F250/350 6in. C/O KT W/4LK

• Aluminum Body Dissipates Heat Up To 30 Percent Faster Than Steel Body
• Full Displaced Valve System To Maximize On And Offroad Handling
• Increase Travel With Impressive 4-link Flex Ride Enhancement
• IFP Separates Oil From Gas To Eliminate Cavitation And Fade
• 37s Improve Your Off-Road Stance And Gain Ground Clearance
• Ultra Heavy-duty Track Bar Bracket Keeps The Axle Centered
• 6061-T6 Hard Anodized CNC Machined Polished Aluminum Body
• Skyjacker Softride Technology Enhanced Spring Performance
• Coilover Conversion Achieves Quicker Reaction to Terrain
• Bump Stop Spacers Keep Suspension Travel Safely In Check
• Radius Arm Mount Drop Brackets Properly Corrects Caster
• Internal Floating Piston [IFP]

Vehicle Fitment
