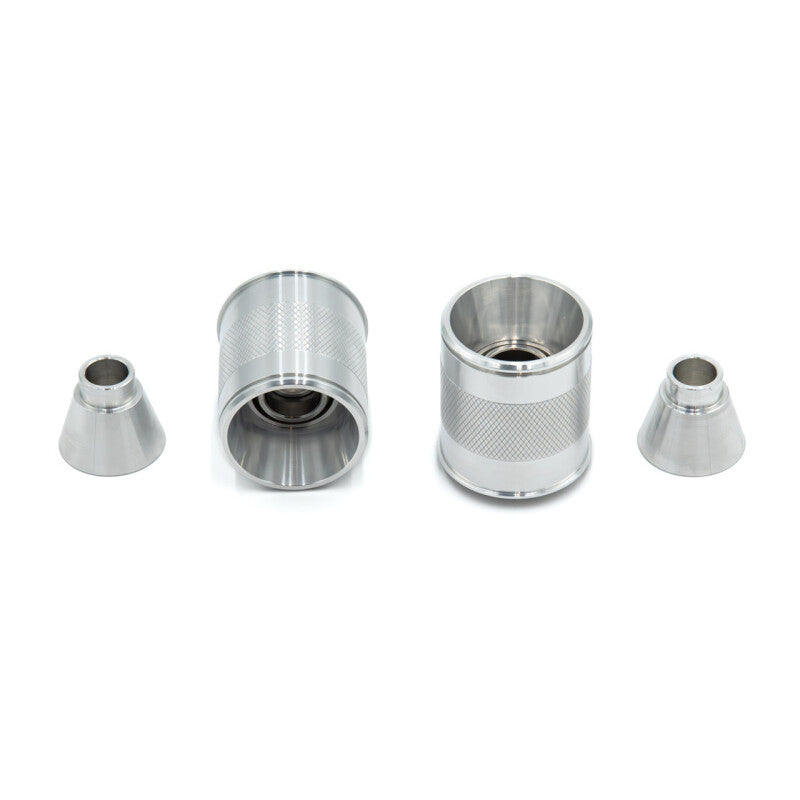

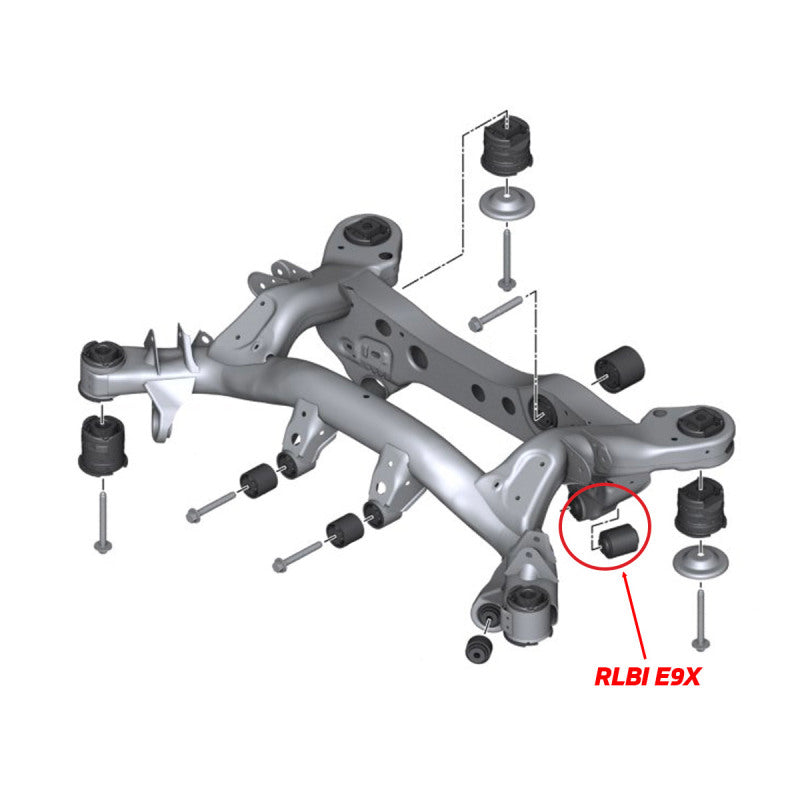

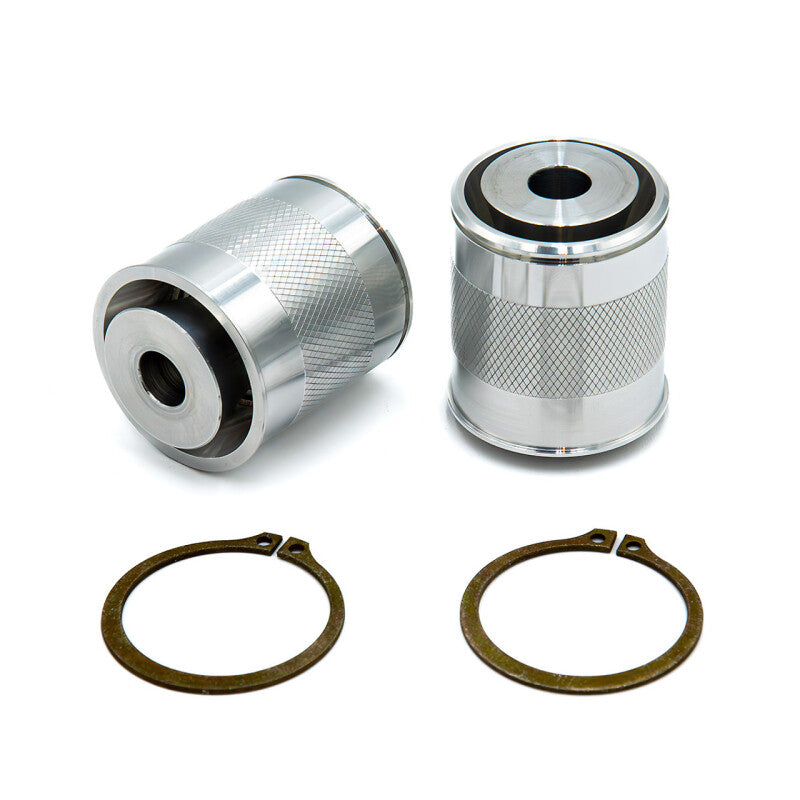

These rear lower control arm inner bushings replace the large rubber OEM bushing attaching the lower control arm to the subframe with a low-friction, PTFE-lined spherical bearing. Replacing the OEM component with this bushing eliminates deflection and binding under heavy load, preserving your desired camber and toe geometry under bump, and greatly reduces friction as the arm travels through it's range of motion. To increase longevity and reduce NVH, we use the largest possible spherical bearing with the tightest fit available by FK.
Benefits
Improved Rear Cornering Grip
Eliminates OEM Bushing Deflection and Binding
Precise Dynamic Geometry, Stability, and Handling
Maintenance-Free, US Made, PTFE-Lined FK Bearings
Materials
6061-T6 aluminum bearing shells and spacers
FK PTFE-lined spherical bearings (F1 spec, self-cleaning)
Sold as a pair.
Confirmed Applications
2006 - 2013 E80, E82, E82M (1-Series, 1-Series M)
2006 - 2013 E90, E91, E92, E93 (3-Series, M3)
2014 - 2021 F80, F82, F83, F87 (M2, M3, M4)
Replaces OEM Part Number
33326770829
Installation Instructions
Coming Soon
SPL BMW E8X/E9X/F8X Rear Lower Control Arm Spherical Inner Bushing
- Proudly made, engineered, and assembled in the USA.
Fitment:
2006 BMW 1 Series E80/e82
2006 BMW 1 Series M E82m
2006 BMW 3 Series E90/e91/e92/e93
2007 BMW 1 Series E80/e82
2007 BMW 1 Series M E82m
2007 BMW 3 Series E90/e91/e92/e93
2008 BMW 1 Series E80/e82
2008 BMW 1 Series M E82m
2008 BMW 3 Series E90/e91/e92/e93
2009 BMW 1 Series E80/e82
2009 BMW 1 Series M E82m
2009 BMW 3 Series E90/e91/e92/e93
2010 BMW 1 Series E80/e82
2010 BMW 1 Series M E82m
2010 BMW 3 Series E90/e91/e92/e93
2011 BMW 1 Series E80/e82
2011 BMW 1 Series M E82m
2011 BMW 3 Series E90/e91/e92/e93
2012 BMW 1 Series E80/e82
2012 BMW 1 Series M E82m
2012 BMW 3 Series E90/e91/e92/e93
2013 BMW 1 Series E80/e82
2013 BMW 1 Series M E82m
2013 BMW 3 Series E90/e91/e92/e93
2014 BMW M3 F80
2014 BMW M4 F82/f83
2015 BMW M3 F80
2015 BMW M4 F82/f83
2016 BMW M2 F87
2016 BMW M3 F80
2016 BMW M4 F82/f83
2017 BMW M2 F87
2017 BMW M3 F80
2017 BMW M4 F82/f83
2018 BMW M2 F87
2018 BMW M3 F80
2018 BMW M4 F82/f83
2019 BMW M2 F87
2019 BMW M4 F82/f83
2020 BMW M2 F87
2020 BMW M4 F82/f83
2021 BMW M2 F87
|
