The UMI Performance lift bars replace your stock rear control arms adding tremendous track gains while not effecting ride height and keeping ride quality at its best. Lift bars are designed to work with axle torque to load the chassis of the car, forcing the rear wheels downward while pushing the tires into the ground for harder launches and improved 60-foot times. These bars are designed to greatly improve traction and reduce unwanted wheel hop. Constructed of boxed mild steel tubing, 0.120" wall and 0.188" thick mounting plates-completely CNC machined for exact tolerances and a superb fit. Lift bars feature grease-able high quality bushings that reduce bushing deflection but still make these arms a 100% street-able. Each lift bar features the correct provisions for adding a stock or aftermarket sway bar, sway bar holes are placed in the correct pattern to maintain the sway bar level with the rear end. All sway bar holes are reinforced with a 0.120" wall thickness steel sleeve TIG welded and sanded into place. The rear mounting brackets feature two settings that allow the lift bar to be lowered 2" or 3" depending on user preference and the vehicles suspension set-up. Lift bars also correct lost geometry and correct instant center on a lowered vehicle. Add a set of our adjustable upper control arms for the maximal rear suspension set-up!

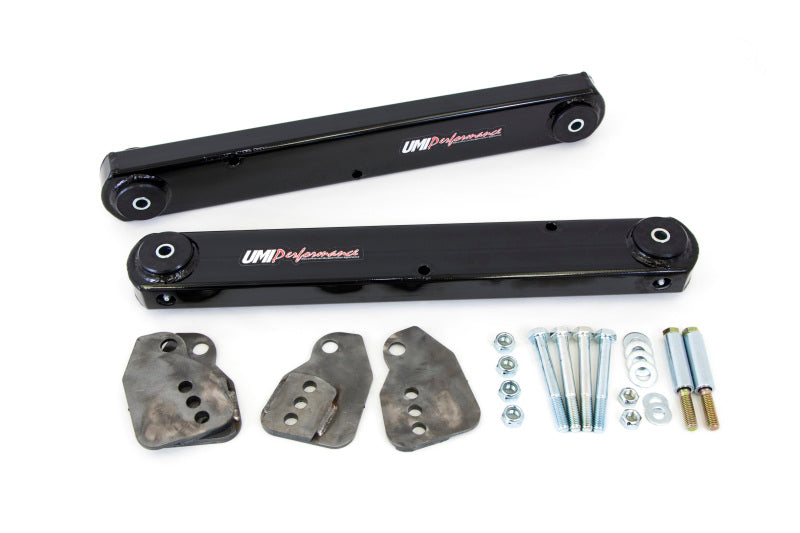

Installation: This kit can be either bolted or welded into place. All hardware and detailed installation instructions are included, hardware kit also includes (4) new metric grade 10.9 control arm bolts with nylon lock nuts. If bolting into place some drilling is required with this kit. Some hardware included not shown.
Features:
- Built using 0.120" Wall Thickness Rectangular Mild Steel Tubing
- CNC Machined for Precision Tolerances and Accuracy
- MIG Welded DOM Steel Bushing Holders
- Grease-able high quality Bushings with Grease Fittings
- Durable Long Lasting Powder Coat finish
Fitment:
1978 Buick Regal
1978 Chevrolet Malibu
1978 Oldsmobile Cutlass
1979 Buick Regal
1979 Chevrolet Malibu
1979 Oldsmobile Cutlass
1980 Buick Regal
1980 Chevrolet Malibu
1980 Oldsmobile Cutlass
1981 Buick Regal
1981 Chevrolet Malibu
1981 Oldsmobile Cutlass
1982 Buick Regal
1982 Chevrolet Malibu
1982 Oldsmobile Cutlass
1983 Buick Regal
1983 Chevrolet Malibu
1983 Oldsmobile Cutlass
1984 Buick Regal
1984 Chevrolet Malibu
1984 Oldsmobile Cutlass
1985 Buick Regal
1985 Chevrolet Malibu
1985 Oldsmobile Cutlass
1986 Buick Regal
1986 Chevrolet Malibu
1986 Oldsmobile Cutlass
1987 Buick Regal
1987 Chevrolet Malibu
1987 Oldsmobile Cutlass
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Carb Acknowledgement Required: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Regular Stock: false |
| Units Per Sku: 1 |
