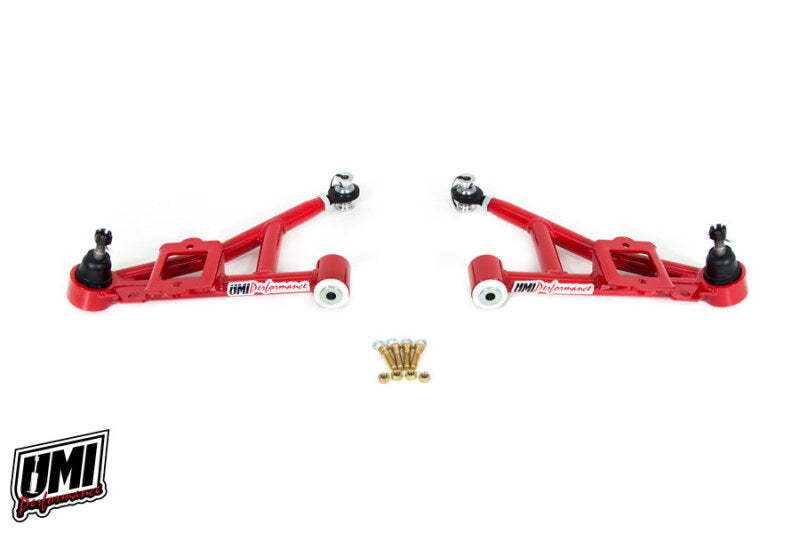

UMI’s fabricated tubular a-arms provide a rock solid foundation for your 4th Gen’s front suspension. Our P/N 2307 a-arms are built to offer smooth travel, a precise steering feel, and an 8lb weight savings over stock. The DOM 1-1/4” diameter tubular sections are precision bent, CNC notched and TIG welded to the ball joint cup featuring our double strength configuration. UMI built 4130 CrMo tube adapters provide a durable attachment point for the high misalignment rod-end while the other side features an ultra smooth, bind free Delrin bushing. The combination of Delrin and rod end make for a performance oriented a-arm with street tendencies. The spring and shock attach to the arm via a tough 1/4” thick steel shock mount. The CNC machined ball joint cup is attached and a premium ball joint is installed. UMI’s tubular lower a-arms can be installed on the factory k-member or any aftermarket k-member as well as the factory spindle - making this a true bolt-on product. Manufactured with pride in Philipsburg, PA – USA.
Fitment:
1993 Chevrolet Camaro
1993 Pontiac Firebird
1994 Chevrolet Camaro
1994 Pontiac Firebird
1995 Chevrolet Camaro
1995 Pontiac Firebird
1996 Chevrolet Camaro
1996 Pontiac Firebird
1997 Chevrolet Camaro
1997 Pontiac Firebird
1998 Chevrolet Camaro
1998 Pontiac Firebird
1999 Chevrolet Camaro
1999 Pontiac Firebird
2000 Chevrolet Camaro
2000 Pontiac Firebird
2001 Chevrolet Camaro
2001 Pontiac Firebird
2002 Chevrolet Camaro
2002 Pontiac Firebird
|
| Air Freight Prohibited: false |
| Not Carb Approved: false |
| Carb Acknowledgement Required: false |
| Ltl Freight Required: false |
| Prop 65: Y |
| Part Type: automotive |
| Epa: N/A |
| Regular Stock: false |
| Units Per Sku: 1 |
